Automatic 4 Column Type Hydraulic Power Press Machinery 315 Ton PLC Control
supply power press machine,hydraulic press, press machine,bending machine
Main Feature:
Y32 Series Four-Column Hydraulic Press is one of the new generation
of plate process. Three-beam and four-pole structure design for large operating
spaces - suitable for automatic operations forming, punching, bending,
straightening and multi-press assemblies to form automatic production line.
Fully enclosed drive, easily accessible for maintenance, eliminates, exposed
over hanging parts, slide and bolster tables with T-slots.
Uses a variable flow piston pump - offers high pressure resistance, high velocity,
durability and low noise.
Hydraulic pipe system uses integrated circuits - manifold block fits inside
the press to reduce piping and oil leaks, easy to maintain, simple and safe.
Hydraulic system is from Bosch, Germany.
Protective fence and the safety interlock to ensure the operation safety.
Have a movable single-hand pedal switch, easy to operate.
Front Side Covers with safety switches, Back light safety guards (Category-4),
Foot pedal conforming to CE regulation.
Guiding device: adopts four cylindrical location guiding to make sure of the
steady precision, and it's easy to test and maintain.
Presses operated with automatic one cycle design; two hand push button
design for simple and safe operation. Presses which could realize three-operation
mode: adjustment, manual and semi-automatic.
PLC press control is flexible and safe. adjustable proximity switches allows stroke
adjustments in seconds.
All our electrical, hydraulic and mechanical parts are standard in the industry
and available throughout North America and Europe.
The Machine is with both hands button and foot switch control: anti-tie down,
non-repeat controls with ring guards; conforms to OSHA.
Dual control You can select to use:
Moveable pedestal height for comfort and ease of operation c/w dual electric
palm buttons & extra emergency stop.
Movable single-hand pedal switch .
Introduction:
The Hydraulic press has three-beam and four-pole structure, which means
economical and practical. Operation space is wide, and the movable bolster
could be moved out of frame to set the die. The structure is simple and the
appliance is also beautiful. Hydraulic control adopts plug-in valve system,
which means reliable motion and long service life. The press,, which could
realize three-operation mode: adjustment, manual and semi-automatic.
The machine is applicable for metal sheet stretching and pulling, stretching,
punching, bending. It is also used for pulling, stretching and pressing
large-scale products. Presses offer fast, easy, and safe setup and operation
as well as years of trouble-free service.
Machine paramter:
Model | Nominal Pressure | Ejector Pressure | Max. Hydraulic Work Force | Max. Slide of Stroke | Max. Distance Between Slide and Worktable | Dimension of Machine (F-B) | Dimension of Machine (L-R) | Motor Power |
Y32-63 | 630 | 100 | 24.3 | 500 | 700 | 780 | 500 | 5.5 |
Y32-100 | 1000 | 200 | 25.8 | 500 | 900 | 1800 | 1020 | 5.5 |
Y32-160 | 1600 | 250 | 25.5 | 500 | 900 | 1000 | 800 | 11 |
Y32-200 | 2000 | 400 | 24.4 | 700 | 1120 | 1200 | 900 | 11 |
Y32-315 | 3150 | 630 | 24.6 | 800 | 1250 | 1500 | 1200 | 18.5 |
Y32-400 | 4000 | 630 | 24.7 | 800 | 1400 | 1560 | 1200 | 22 |
Y32-500 | 5000 | 1000 | 25 | 900 | 1500 | 4100 | 2420 | 30 |
Warranty:
1. Our guarantee time is 13 months from shipment date. If any component is damaged during
guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training
freely. The customer provide the double trip tickets, food and accommodation for our engineer.
The customer can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help,
can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line
service.
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039

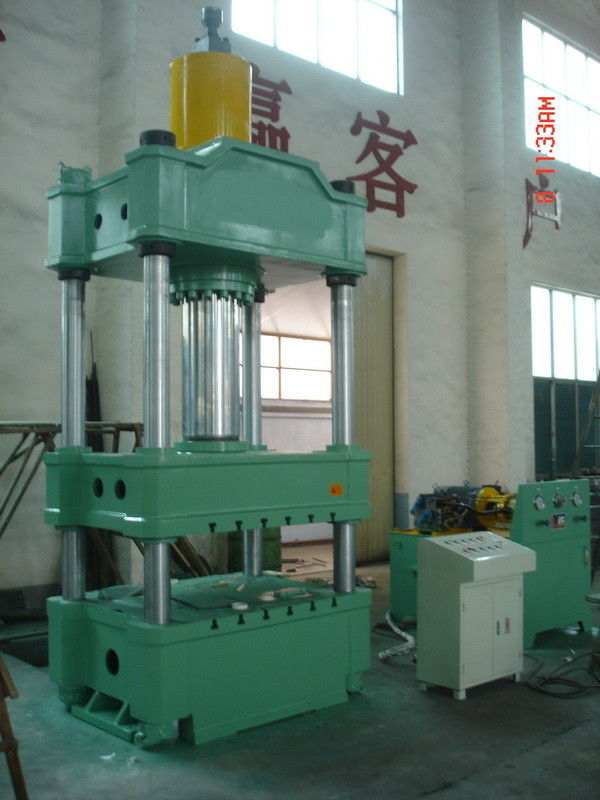

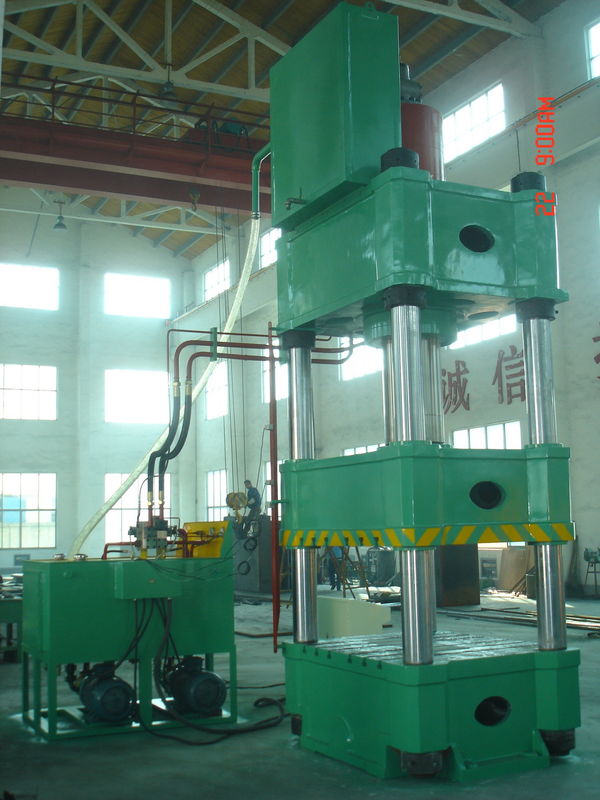

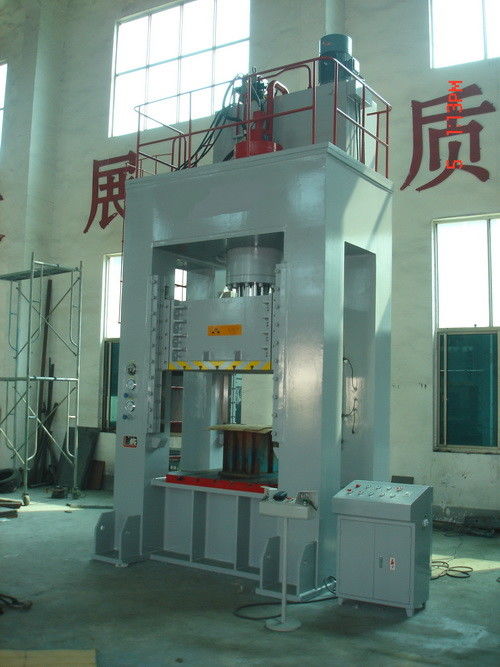

Machine picture:
