Mechanical Power Press Machine Stamping Window Shade J23 Series

Mechanical Power Press Machine Stamping Window Shade J23 Series

  • High Light

    Power Press equipment

    ,

    power press automation

  • Power Source
    Mechnical Type
  • Name
    Mechnical Stamping Machine/power Press Machine
  • Warranty
    12 Month
  • Fuction
    Hole Punching, Forming And Cutting
  • Structure
    Q235 Steel Welding Structure
  • Packing
    Plywood Case
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    J23-125T
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: 20'GPx1
  • Delivery Time
    30 days

Mechanical Power Press Machine Stamping Window Shade J23 Series

Mechanical Power Press Machine Stamping Window Shade J23 Series



 sell power press machine,hydraulic press, press machine,bending machine


Character

  1.  Its structure is simple, operation convenience, function credibility, the usage
  2. maintain convenience.
  3. J23 series shut type list orders the pressure machine fuselage of airplane srtaight
  4. line form design, well balanced to be subjected to dint, constant form, rigid and strong.
  5. Extemely high closing height, pack the mould space big, slippery piece the piece
  6. six noodles directionn, the accurancy is high, stability good.
  7. Outside support type especially the big machine do, exaltation the tool machine
  8. install stability, safety, inside place type, oil road, electric circuit, beauty clean
  9. and net, have a safety, dependable type more,
  10. The hand operation button the switch match pressure machine national security standard.

Parameter:



Model J23-80 J23-100 J23-125 J23-200
Nominal pressure (kn) 800 1000 1250 2000
Slipper stoke (mm) 100 100 140 145
Slipper stoke times(time/min) 50 40 38 38
Max closing height (mm) 270 300 370 420
Height adjustment(mm ) 60 80 100 100
Distance between slipper centre and machine(mm) 260 310 395 400
Worktable dimension(mm) 470*750 570*860 740*1150 780*1250
Size of die handle bore (mm) 60*80 60*80 60*85 60*85
Worktable thickness(mm) 80 80 110 120
Slipper underside bore (mm) 260*300 360*400 360*430 410*500
Motor(kw) 5.5 7.5 11 15
Dimension(mm) 1765*1265*2650 1940*1490*2850 2350*1780*3600 2540*2010*3800



Application:



  • Pressing and withdrawing axle and sleeve
  • Bending and deep drawing sheet metal
  • Straightening, forming, cutting and punching various materials
  • Applied in compression trial.
  • External cover of computer and sheet metal parts
  • OA steel furniture drawer and rail parts
  • External cover of air conditioner ,and sth.liked



Our Service:



Quality & Service: We take care of the product quality in order to provide

good service to our customers.

Price: In order to serve better to our customer we are always finding

the way to reduce the price.

Special Service: In this competitive world we always provide a promotion

offers to our customer so our customer can able to save a good amount.



Our Advantage:



MOQ: We can supply you the quantity you want.

OEM: We can produce the goods as per the customer requirement.

Service: We are much more concern for the on time delviery & quality



After sale service:



During the production we arrange the samples lot as per the customer requirement,

then we send the samples photo and samples to the customer to approval.

After the production finish we send the samples to customer to check, after customer

approval we ship the goods to the customer.

After customer received the goods we check and take the necessary follow-up with

the customer in order to solve some small mistakes in next lot.



Packaging & Shipping:

  1. usually in stock.
  2. if not in stock, the lastest delivery date is 30 days
  3. Package is wooden box, suitable for sea transport

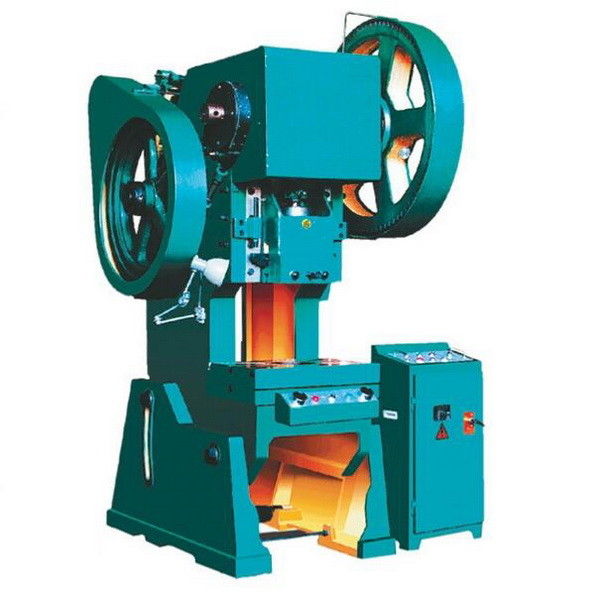

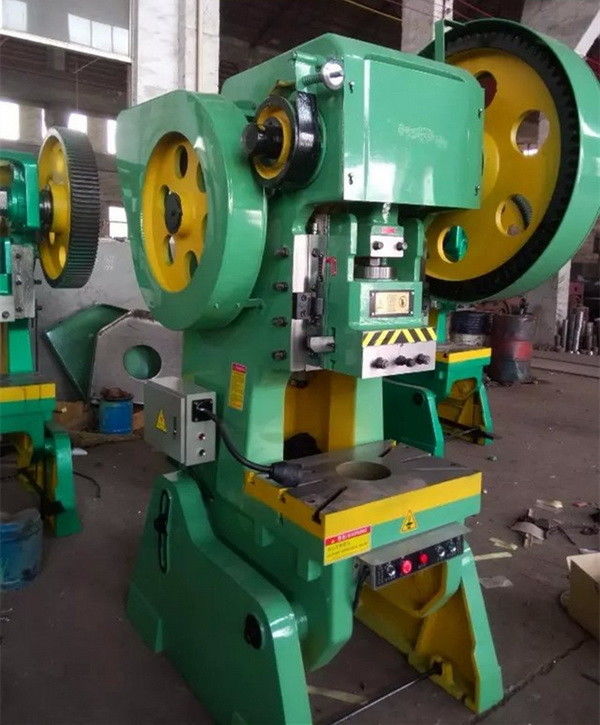

Machine picture:

 Mechanical Power Press Machine Stamping Window Shade J23 Series 0
