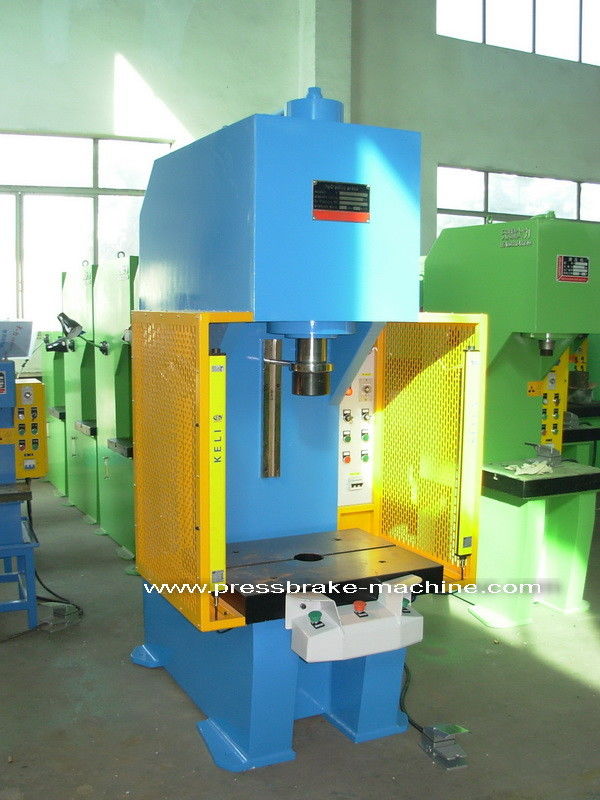

Manaul Control 100T Single Column Hydraulic press Mahine Motor Pressing Shaft

Manaul Control 100T Single Column Hydraulic press Mahine Motor Pressing Shaft

  • High Light

    Power Press equipment

    ,

    power press automation

  • Name
    100T Hydraulic Press
  • Power Source
    Hydraulic Type
  • Worktable Size
    550x800mm Or Special Order
  • Fuction
    Correction Sharft And Pressing Parts
  • Structure
    H Type Ste L Welded Structure
  • Packing
    Iorn Pallet With Plastic Cover.
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    Y41-63T
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: 20'GPx1
  • Delivery Time
    30 days

Manaul Control 100T Single Column Hydraulic press Mahine Motor Pressing Shaft

Manaul Control 100T Single Column Hydraulic press Mahine Motor Pressing Shaft



buy power press machine,hydraulic press, press machine,bending machine

Y41-100T hydraulic press Feature:

Y41 Series C-Type Hydraulic Press is one of the new generation of plate process .

C-frame design for large operating spaces - suitable for automatic operations

forming, punching, bending,straightening and multi-press assemblies to form

automatic production line. Totally European design,Monoblock,

Welded steel frame rigid to deflection moment and high tensile with ST44 A1

material. Fully enclosed drive, easily accessible for maintenance, eliminates,

exposed over hanging parts,slide and bolster tables with T-slots.

Uses a variable flow piston pump - offers high pressure resistance, high velocity,

durability and low noise.

Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to

reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is

from Bosch,Germany.

Protective fence and the safety interlock to ensure the operation safety. Have

a movable single-hand pedal switch,easy to operate.

Front Side Covers with safety switches, Back light safety guards, Foot pedal

conforming to CE regulation.

Guiding device: adopts four cylindrical location guiding to make sure of the

steady precision, and it's easy to test and maintain.

Presses operated with automatic one cycle design; two hand push button design

for simple and safe operation. Presses which could realize three-operation

mode: adjustment, manual and semi-automatic.

PLC press control is flexible and safe. Adjustable proximity switches allows stroke

adjustments in seconds.

All our electrical, hydraulic and mechanical parts are standard in the industry

and available throughout North America and Europe.

The Machine is with both hands button and foot switch control: anti-tie down,

non-repeat controls with ring guards; conforms to OSHA.



C type Press Machine Work Environment :

Power Requirement: Three phase four wire, 380V, 50HZ ( as design accepted)

Installation Field: Clean, low dust

Maximum Temperature :40ºC

Minimum Temperature: -5ºC

Relative Temperature:55—85%

Height: less than 1000M



Dual control can select to use for mechnical press machine:

Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons

& extra emergency stop.

Movable single-hand pedal switch.

Optional touch screen terminals offer for 100T press:

Data storage of mould(s) and manufacturing conditions.

Reduced mould replacement time and calibration, fabrication requirements.

Programmable memory for working conditions, displays pressure, stroke, spend data, etc;

one cycle process sequence.

Straightening Press Parameter:

Model Unit Y41-40T Y41-63T Y41-80T Y41-100T Y41-160T
Nominal Pressure KN 400 630 800 1000 1600
Max.Pressure Map 22.2 24.3 25.8 25.8 25.8
Max.Opening Height mm 600 630 720 800 1000
Slide Stroke mm 400 500 500 500 500
Down speed of slide Mm/s 50 50 50 36 25
Return speed of the slide mm 100 90 90 90 65
Throat depth mm 320 350 350 350 325
Dimensions of Die Table F.B. mm 550 550 650 650 650
L.R. mm 700 850 800 800 800
Worktable Height mm 710 710 710 730 750
Work Table Opening Diameter mm 100 140 140 140 200
Hydraulic cylinder diameter mm 150 180 200 220 280
Motor Power Kw 5.5 7.5 7.5 7.5 11



Packing & shipping for press:

PVC film covered hydraulic press

Whole machine fixed in the container with steel rope,very safe

Wooden case or pallet or iron box

If have stock,can provide right now

If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.

Can give destination port best price or cost to the customer factory



Our Service for press machinery:

All machines have been tested by 48 hours before ship out.

All products have 2 year warranty.

Supported 24 hours online service. If any problems happen, our team will do our

best to solve the problems.

If any component is damaged during guarantee time. we can send the component to

the customer by DHL freely



Our Advantage:

MOQ: We can supply you the quantity you want.

OEM: We can produce the goods as per the customer requirement.

Service: We are much more concern for the on time delviery & quality



More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype: zouqicheng



QQ: 2308574039

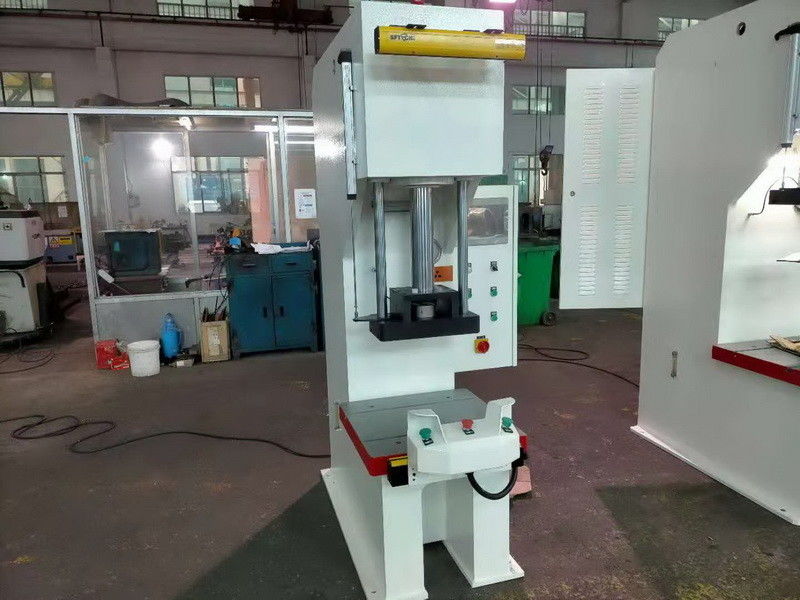

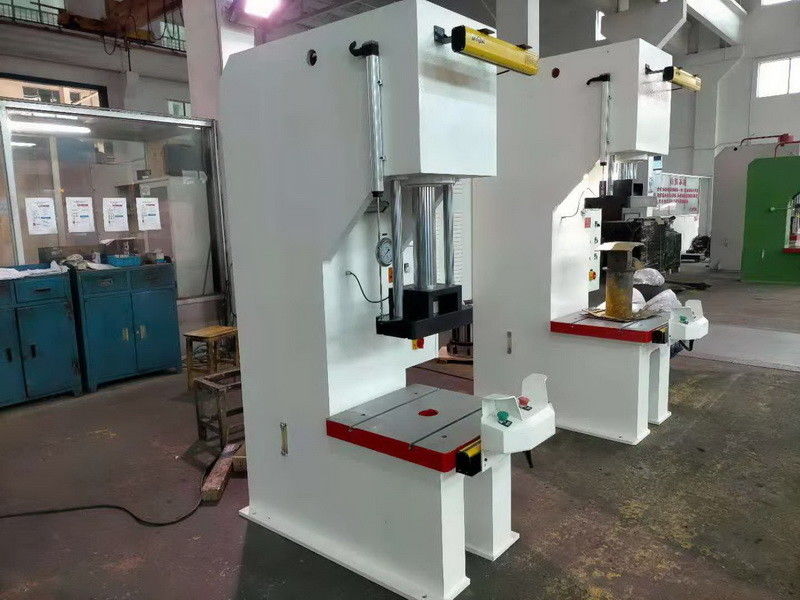

Single colum press machine 63T with sensor photo
