    Electrical Press Machine/power Press Machine
  • Power Source
    Pneumatic
  • Slider Movement
    Single Action
  • Punch Shape
    Open Punch
  • Slider Drive Mechanism
    Friction Press
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    JH21-315
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: ,20'OTx1
  • Delivery Time
    30 days

Single Column C Frame Power Press Equipment With High Precision

Single Column C Frame Power Press Equipment With High Precision



produce Mechnical press machine,hydraulic press, press machine,bending machine

Description::



  1. JH21 series of pneumatic friction clutch high-performance press
  2. Use: 1. Suitable for various cold stamping process :
  3. blanking, punching, molding, bending, pulling
  4. and stretching etc.
  5. period; Widely used in the field of electrical appliances, vehicles,
  6. agricultural machinery, tractors, mining machinery,
  7. hardware and tools, machinery
  8. manufacturing, and other industrial
  9. Structure: 1. Welded body with steel plate ,higher stiffness
  10. and accuracy.
  11. period;Adopts longitudinally placed crankshaft, compact structure
  12. and handsome appearance.
  13. period; Achieves die height adjustment electrically with digital display.
  14. period;Slider ,square figure long guide with six frictions and bronze liner
  15. ,which is higher precision.
  16. period; Adopts combined frication clutch and brake ,engages stably
  17. and runs sensitively
  18. period; Fixed with the slide,the mechanical overload protector will be
  19. damaged to protect the machine from overloading.
  20. period;Lift balance cylinder, makes the slider rod balance



Specification:



Item Unit JH21-160 JH21-200 JH21-250 JH21-315
Nominal Pressure kN 1600 2000 2500 3150
Nominal Pressure Stroke mm 6 6 6 8
Slide Stroke mm 160 160 200 250
No. of Strokes per minute Fixed SPM 50 50 30 30
Variable SPM 30-60 35-60 25-40 25-40
Max. die Height mm 400 450 500 550
Die Height Adjustment mm 110 110 110 120
Throat Depth mm 380 400 430 430
Bolster Surface Size F.B. mm 740 780 840 840
L.R. mm 1300 1400 1400 1500
Slide Surface Size F.B. mm 580 590 650 700
L.R. mm 800 800 880 950
Stemhole mm φ65X90 Φ65x90 Φ65x100 Φ65x100
Distance between Uprights mm 780 820 920 1000
Thickness of Bolster mm 165 170 175 180
Optional Cushion Pressure kN 145 145 145 145
Stroke mm 80 80 80 80
Main Motor Model   Y160L-4 Y180M-4 Y200L2-6 Y225M-6
Power kW 15 18.5 22 30
Slide Motor Model   YPE750-4Z YPE750-4Z YPE1100-4Z YPE1500-4Z
Power kW 0.75 0.75 1.1 1.5

Distance between Bolster Upward

Surface and Ground

mm 900 900 1000 1000
Overall Dimension F.B. mm 2200 2250 2600 2720
L.R. mm 1500 1540 1620 1920
Height mm 3680 3740 4290 4520



Features:



  1. Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity,
  2. accuracy and stability;
  3. Vertical located crankshaft, compact structure;
  4. The crankshaft undergoes grinding treatment after high frequency quenching;
  5. Lengthened six-face rectangle guide with a surface of bronze plate;
  6. Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce
  7. noise and impact;
  8. PLC control and imported safety duplex valve;
  9. Wet type combined multi discs friction clutch and brake;
  10. Hydraulic overload protected





Structure:

  • Dealing directly with the manufacture- no middle man!
  • The most competitive pricing in the market.
  • High quality control standards, such as ISO, CE
  • Guaranteed delivery time.
  • Prompt attention to the customer inquiries.
  • Diverse services for your needs, including sourcing other machinery,
  • inspection goods for you by our engineers, product process tracking
  • and good&period





Parameter:



Item Unit JH21-25 JH21-40 JH21-63 JH21-80 JH21-100
Nominal Pressure kN 250 400 630 800 1000
Nominal Pressure Stroke mm 3 4 4 4.5 5
Slide Stroke mm 80 100 120 130 140
No. of Strokes per minute Fixed SPM 100 85 60 60 50
Variable SPM 70-110 50-95 45-75 40-70 30-60
Max. die Height mm 250 270 300 330 350
Die Height Adjustment mm 50 60 70 80 90
Throat Depth mm 210 225 260 310 360

Bolster Surface Size
F.B. mm 400 440 500 600 680
L.R. mm 700 810 850 1000 1100

Slide Surface Size
F.B. mm 250 340 400 460 520
L.R. mm 360 410 480 540 630
Stemhole mm φ40X50 Φ40x65 φ50X65 φ50X80 φ50X85
Distance between Uprights mm 450 530 580 600 630
Thickness of Bolster mm 80 110 130 140 155
Optional Cushion Pressure kN   45 60 80 100
Stroke mm   50 50 65 70
Main Motor Model   Y100L2-4 Y112M-4 Y132S-4 Y132M-4 Y132M-4
Power kW 3 4 5.5 7.5 7.5
Slide Motor Model         YPE500-4Z YPE500-4Z
Power kW       0.5 0.5
Distance between Bolster Upward Surface and Ground mm 750 750 900 900 900
Overall Dimension F.B. mm 1250 1410 1580 1870 1940
L.R. mm 950 1040 1130 1280 1370
Height mm 2300 2520 2840 3110 3290
Gross Weight kg 2800 4200 5700 6750 10350



Standard Equipments:

  1. Wet clutch
  2. PLC
  3. Hydraulic overload protecting pump
  4. Cam controller
  5. Die height adjusted motor (JH21-60 and upon models)
  6. Auto lubrication system
  7. Manual lubrication system
  8. Double hand control panel
  9. Electronic crankshaft angle indicator
  10. Predetermined counter
  11. Balance cylinders for slide and upper die
  12. Work light
  13. Joint for air
  14. Joint for miss-feeding
  15. Absorbing pads



More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype: zouqicheng



QQ: 2308574039

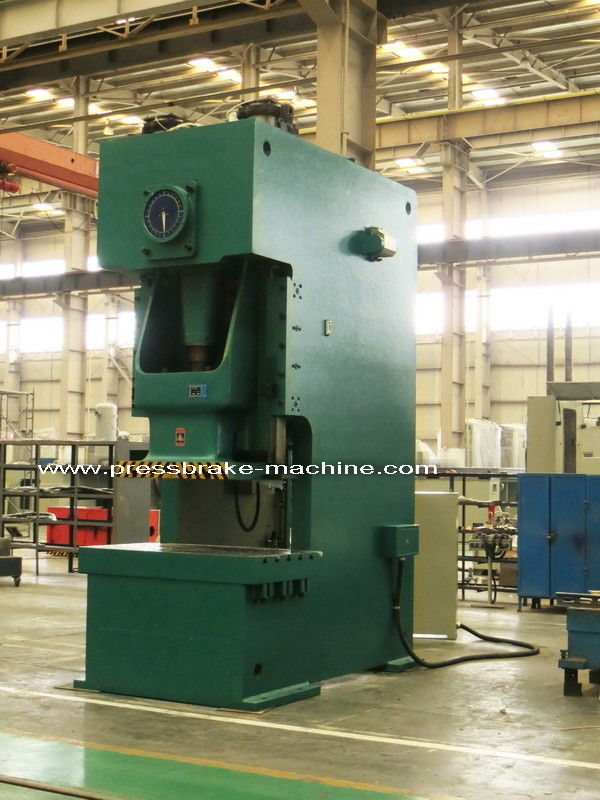

Machine picture:
