PLC Drive 2mm Sheet Hydraulic C Type Power Press Machines with 800mm worktable
supply power press machine,hydraulic press, press machine,bending machine
Hydraulic press Machine Performace
Y41 Series C-Type Hydraulic Press machine is one of the new generation of plate process and developed by Zhongya
cnc machine tools, Ltd.,The press is for cutting, punching,blanking, bending and light stretching work.
Totally European design,streamlined looking,Steel-welded frame, Wide body frame eliminating vibration for improved ide
life and machine,High rigidity and less deformation Compact.
C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Thick plates and large
columns provide you with the stable platform
you need for your demanding application.
Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts and mechanism.
High accuracy, high efficiency, simple and convenient operation, good performance,
favorable price and best service.
The machine by the European Union CE certification and ISO quality system certification.
Single colunm press machine Feature
apply computer optimization design, C-type single arm body structure, rigid, simple
structure, easy to operate
Machine body are wholly steel welding, and tempered by the fireplace hydraulic control using two-way
cartridge valve integrated system, reliability, long life, small hydraulic shock and reduces
connection management and leakeage
pre-discharge pressure devices is installed in the hydraulic system for small hydraulic shock
independent electrical control system, reliable, intuitive operation and easy maintenance
using the button centralized control, with adjustment, manual,semi-automatic (
semi-automatic setting - - process can be divided into two type,single on fixed stroke and single on fixed pressure)
three operating modes slider's working pressure, fast approach and slow approach stroke can be adjusted
according to processing demand
worktable of hydraulic press machine 100T
electrical cabinet of servo hydraulic press 80T
Deep Drawing Press Y41 Technical Data
|1||Type||Y41 single column Hydraulic press|
|3||Pressure of fluid||25.8Mpa|
|4||The Max. distance between worktable and slipper||800 mm|
|7||The Max. stroke of the slipper||500mm|
|9||Dimension of worktable||650X800mm|
|13||Working Speed of slipper go down||36mm/S|
|14||Return speed of slipper||90mm/S|
|15||The height of worktable to the floor||730mm|
|16||The diameter of hole for work piece out||140mm|
|17||The diameter of hydraulic cylinder||220mm|
|18||The diameter of the center of plunger bar||40mm|
|19||The depth of the center of plunger bar||65mm|
|20||The screw thread diameter of plunger bar||150mm|
|22||Overall sizes(mm) LxWxH||1450x1000x2800|
|26||Delivery date||30days after receive down payment|
Packing & shipping
PVC film covered hydraulic press
Whole machine fixed in the container with steel rope,very safe
Wooden case or pallet or iron box
If have stock,can provide right now
If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.
Can give destination port best price or cost to the customer factory
Guarantee & After Sale Service
Guarantee for 2 year exluding comsumable parts .Extra fee is paid if out of date.
Any damage to the machine caused by improper use will be charged.
when receiving the your money, we will prepare machine for you,it will spend 15-30days,
to get the shipping pictures for you.
24-hour technical support Internet or by Telephone, free instructions and
Free installation and fully test before sending and free training for operators

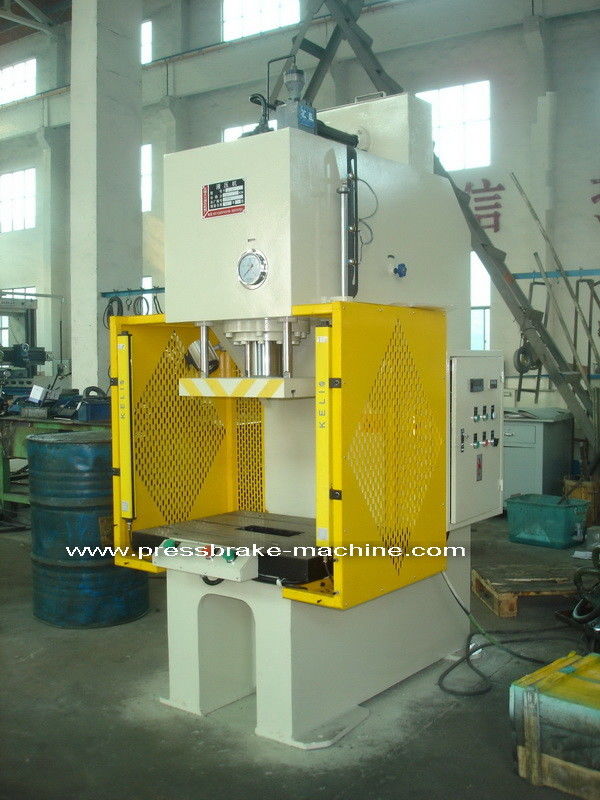

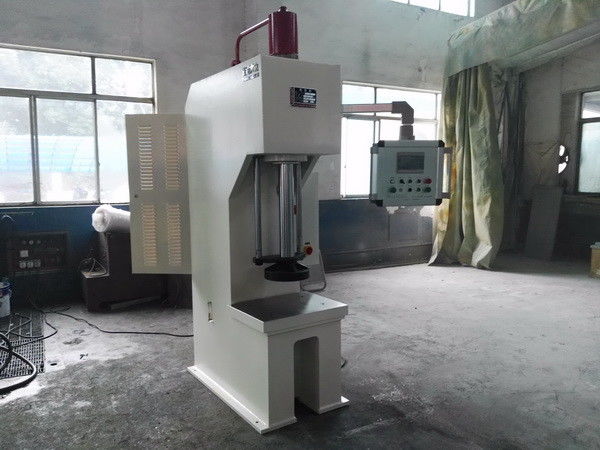

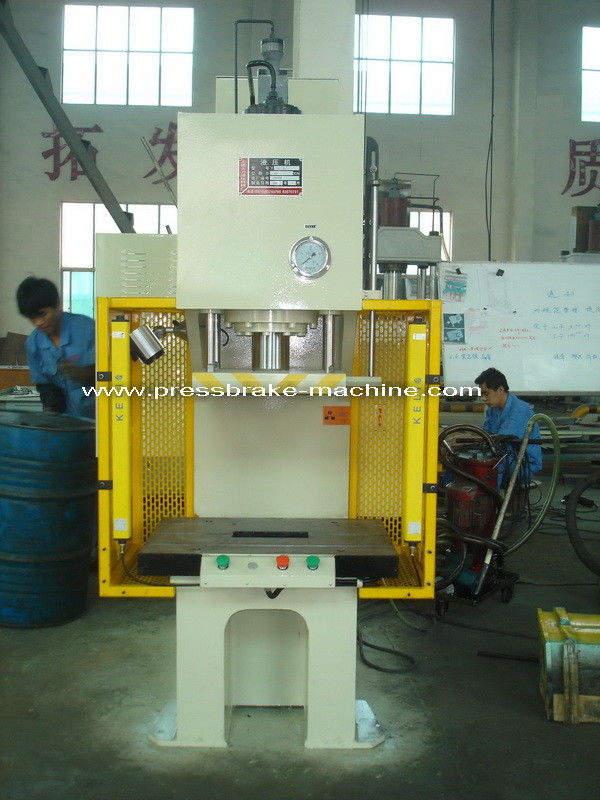

Machine picture of CNC press machine 100T
