4 Ways V Dies CNC Brake Press Tooling And 60'' Radius Top punching 3100mm Long

4 Ways V Dies CNC Brake Press Tooling And 60'' Radius Top punching 3100mm Long



factory price press brake tooling, press brake die, bending machine tools, punching die, shear blade.



Characteristics of CNC pres brake toolings:



Combination die (Press brake bottom Die): Used for sharp

angle bend and then hamming
Model: HTUPST-001P
Material: 42CrMo, T7 etc
Hardness: HRC44-50
Rough: Less than 3.2
Dimension:
Length: Segmental 10mm-6000mm Or whole length one piece
Width tailor-made (as per customer requests)
Height: Tailor-made (as per customer requests)
Style: Tailor-made (American style, euro style,

Japan style, Chinese style or international style)
We are a professional press brake, shearing machine,

press brake tooling and die, shear blades manufacturer,

We can design and supply high quality tooling, blade,

machines as per your working pieces. Please contact us freely

if you need any more information



Information of 10 feet press brake dies:



Material:	RD30(Carbide)
Processing Machine:	Surface grinder, Profile Grinder
Outside contour Tol.:	±0.001mm
Profile Tol.:	±0.002mm
Measuring instruments:	Projector, Toolmaker Microscope
Design:	non-standard parts, according to customer's request
Quotation:	We will quote in tow hours once we receive inquiries
Delivery Time:	2days
Packing:	Carton, attached Quality Control report



Material:

42CrMo, 42CrMo4, wheeled Steel. D2Steel.

Hardness: HRC: 48o+2o.

Hardened and Grounded

Full Length or Segment 835mm & 415mm as standards





Feature:

CNC Bending Forming Dies for Press Brake(Goose neck Punch die)
Press Brake Forming dies are available for the versatile machines.

Remarkably accurate tools ensure highly accurate bending. Die setting is easy t

hrough a unique installation system.

Tools are hardened to provide excellent wear qualities.

835mm standard segment with right and left horns



Capacity Chart For Air Bending:

The given data has been calculated based upon bending material with a tensile

strength ofδb=420 MPa over a length of 1m.



The internal radius R corresponds to approximate 16% of the die opening V

Recommended die opening V for air bending

Material thickness	t	0.5~2.5mm	3~8mm	9~10mm	>12mm
Die opening	V	6 × t	8 × t	10 × t	12 × t

Determination of the bending force for air bending (approximation)

F(chart)= 65 × t² /V (Ton /m)





Packing and delivery:



Packing Details: pack with carton box, 1set/small box, many sets/big strong carton

box or wooden case.

Delivery Details: 3-5 working days





download brochure here:

pres brake tooling of jinqiu.pdf



More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype:zouqicheng



QQ:2308574039

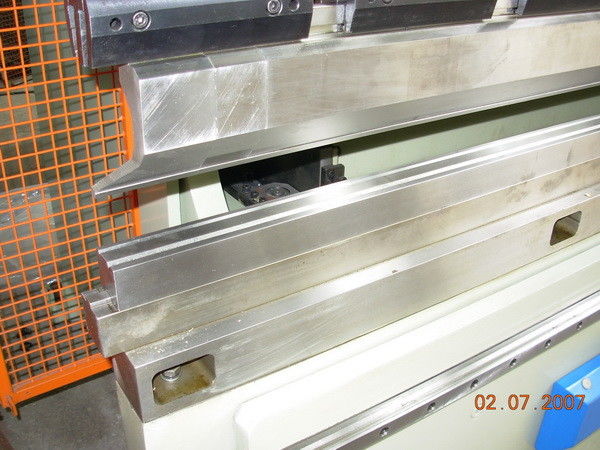

 Picture of top gooosneck punching:
