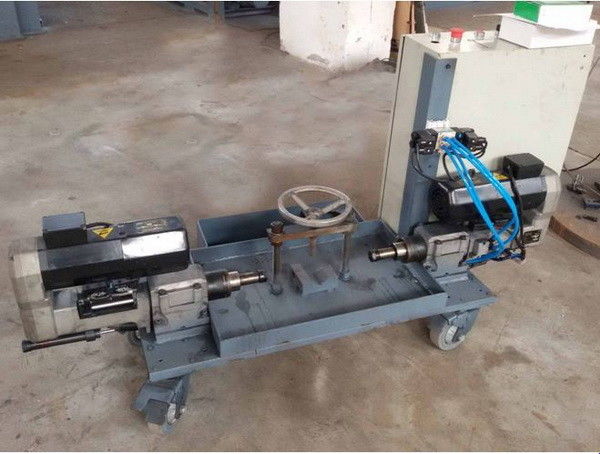

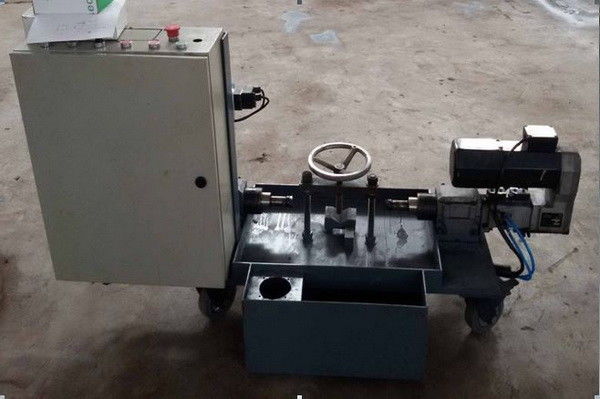

12m Octangle Street Light Pole Production Line CNC Deep Hole Drilling Machine
It is suitable for light pole top fixing hole quick drilling process.
Once finish two holes. Then rotated the pole 90 degree, to finish another 2 holes.
Pole is not moving, the machine is moving tape. Easy to make fix hole for big length light pole.
|Technical indicators||Technical parameters|
|Suitable for pipe diameter||40~120mm|
|Suitable for pipe thickness||2~10mm|
|Max. hole diameter||12mm|
|Drilling cutting feed stroke||0~30mm|
|Feed driving force||1200N|
|No loading rotation speed||1000rpm|
|Air consumption for single head||3~6 L/stroke|
|Total power consumed||1.2KW|
|Power supply||380V,50Hz 3 phases,or according customer requirement|
This machine is used for drill the holel on the light pole automatically.It can drilling two holes
one time. And easy to operate. the maachine can move to any where. the voltage of machine
Guarantee & After Sale Service:
Guarantee for 1 year excluding consumable parts .Extra fee is paid if out of date.
Any damage to the machine caused by improper use will be charged.
when receiving the your money, we will prepare machine for you, it will spend
15-30days, to get the shipping pictures for you.
24-hour technical support Internet or by Telephone, free instructions and
Free installation and fully test before sending and free training for operators
