Polygenal Light Pole Welding Machine Submerged Arc Welding Equipment

Polygenal Light Pole Welding Machine Submerged Arc Welding Equipment

  • Highlight

    seam welding equipment

    ,

    longitudinal seam welding machine

  • Product Name
    Light Pole Shut Welding Machine
  • Application
    Light Pole, Lamp Pole
  • Welding Length
    200-14000mm
  • Welding Products
    Round Pole, Polygenal Pole ,taper Pole
  • Clmaping Type
    Hydraulic Clamping
  • Welding Type
    Subermage Arc Welding And Gas Shield Welding
  • Welding Mode
    Automatic Welding
  • Character
    Better Welding Quality, Fast Proucing Speed
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    300/2500
  • Minimum Order Quantity
    1set
  • Price
    negotiation
  • Packaging Details
    iron pallet with plastic cover.
  • Delivery Time
    According to the requirement of order
  • Payment Terms
    T/T or L/C
  • Supply Ability
    2 sets per month

Polygenal Light Pole Welding Machine Submerged Arc Welding Equipment

Polygenal Light Pole Welding Machine Submerged Arc Welding Equipment





Application for light pole shut welding machine:



LIGHT POLE SHUT-WELDING MACHINE MODEL 500/12000

(Submerged Arc Welding and Gas-shielded welding(CO2) Welding both founction)

APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 12000MM

LIGHT POLE SHUT-WELDING MACHINE MODEL :500/12000, it is suitable for one piece type

polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable

motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanica

l chain, worm wheel push the clamping wheel to close the pole and do welding at same time.



The machine includes the following items:

Long working table with rack for pull dolly.

Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal

and circle pole)

Submerged Arc Welding and Gas-shielded welding(CO2) Welding system, including

welding wire feeding system.

The flux recovering system

back support unit

hydraulic system

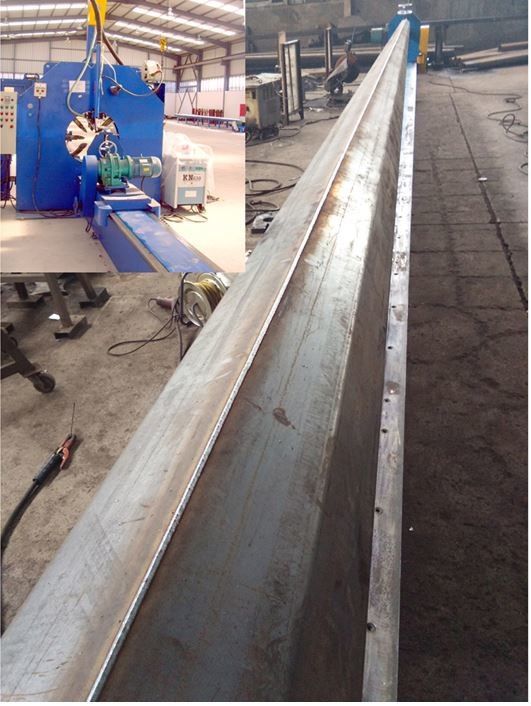

Polygenal Light Pole Welding Machine Submerged Arc Welding Equipment 0

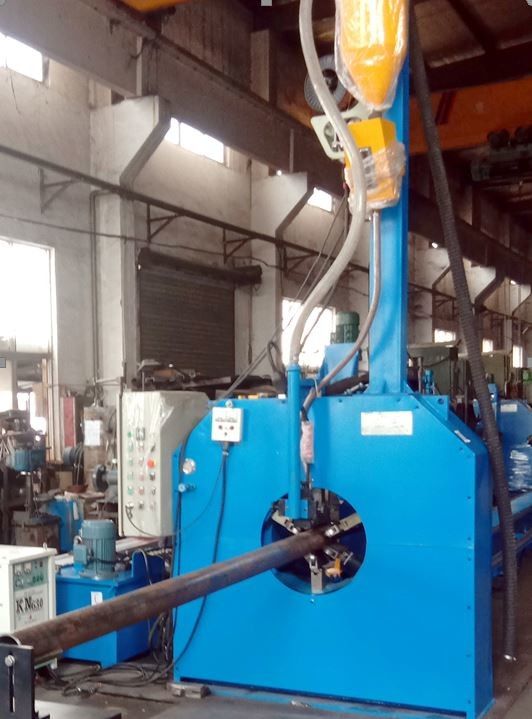

Polygenal Light Pole Welding Machine Submerged Arc Welding Equipment 1





Parameter of clrcle cone light pole shut welding machine:



TECHNICAL FEATURES
Workable Diameter 60-500mm,
Workable length 12000 mm
DOLLY LENGTH 1500 MM
Suitable light pole Thickness Light pole diameter: 60~500mm 2.8~4mm
Light pole diameter: 250~500mm 2.8~6mm
Light pole diameter: 400~500mm 2.8~8mm
Power of Motor for Pump 4+2.5 KW double pump

Power of Motor for pulling dolly



4 KW, AC speed changeable type.



Welding Machine

630A, (Submerged Arc Welding and Gas-shielded welding(CO2) Welding

Option: Lincoln welding machine

Welding wire diameter



1.6~2mm welding wire, according the pole thickness to do selection
Working Speed 1.1~2m/min (Note: different thickness speed will be different)
Gross weight 8000 kg
Overall sizes (mm) 23000x2900x4000 mm



Description:



This cutting machine is used for cutting the door on the light pole automatically.It can

cutting a door within 30-40 seconds And easy to operate. the cutting thickness and

diameter of light pole can be special order. the voltage of machine special order.




Guarantee & After Sale Service:





Guarantee for 1 year excluding consumable parts .Extra fee is paid if out of date.

Any damage to the machine caused by improper use will be charged.
when receiving the your money, we will prepare machine for you, it will spend

15-30days, to get the shipping pictures for you.
24-hour technical support Internet or by Telephone, free instructions and
Problem solving.
Free installation and fully test before sending and free training for operators

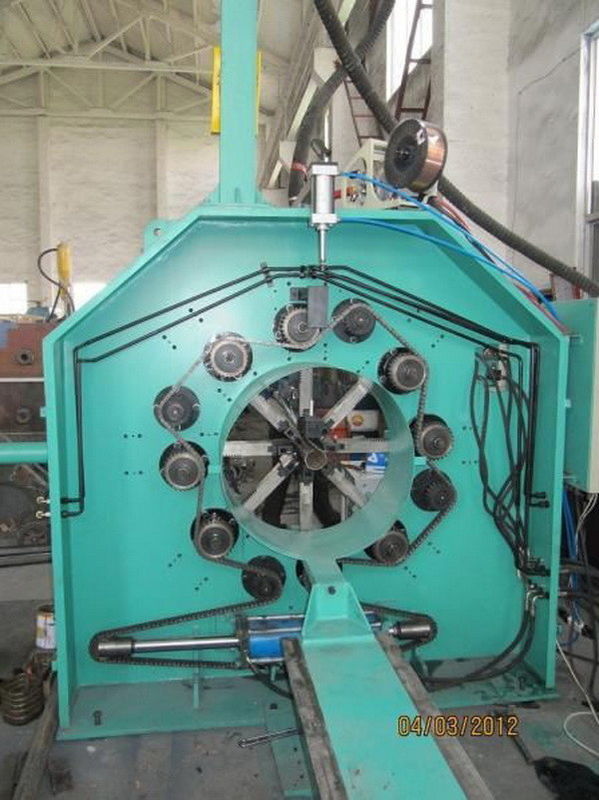

 Machine photo:


Polygenal Light Pole Welding Machine Submerged Arc Welding Equipment 2
