210mm Diameter Round Cone Street Light Pole shut-Welding Machine15M working long

210mm Diameter Round Cone Street Light Pole shut-Welding Machine15M working long

  • High Light

    steel pipe welding machine


    longitudinal seam welding machine

  • Application
    Light Pole And Steel Tube
  • Welding Speed
    1500mm Per Minute
  • Product Name
    Light Pole Seam Welding Machine
  • Welding Wire
  • Clmaping Machine
  • Origin
  • Packing
    Nude Packing
  • Lead Time
  • Name
    Street Light Pole Making Machine
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    iron pallet with plastic cover.
  • Delivery Time
    According to the requirement of order
  • Payment Terms
    T/T or L/C
  • Supply Ability
    2 sets per month

210mm Diameter Round Cone Street Light Pole shut-Welding Machine15M working long

210mm Diameter Round Street Light Pole shut Welding Machine15M working long


Product Description of circle cone light pole shut welding machine:

Light pole welding machine, steel pole welder, polygonal post welding machine
Beveled cutting line: For cutting trapeziform steel plate without lineation,
With high efficient and good accuracy
Double-linked hydraulic press brake:
AComprises of two 200T-400T hydraulic press brakes, which are linked together and work synchronously
Can be controlled by electric or CNC system
Auto seaming and welding machine:
Comprises of main welding unit, pulling device and loading table
Automatically seam the folded pipes and weld
Steel post straightening machine
Steel pipe bending machine: Bending parts for lamp posts
Please contact us for more details...

Parameters of polygon light pole shut welding machine:
1. Welding diameter:60-450mm
2. Welding length:14000mm as per requests
3. Welding thickness of pole:2.8-6mm
4. Power of pump motor:4KW
5. Power of pulling trolley motor:4KW AC motor with speed adjustable
6. Welding machine:630A with submerge ARC welding+Gas shielded welding functions
7. Welding wire diamater:1.2 mm or 1.6mm as per the thickness of light pole
8. welding speed: 1.1-2m/min
9. Weight of machine:6500Kgs
10. Overall sizes:26000x1900x1950mm

Other models:
340/12000 (Lenght as per requests)
500/6000 (Lenght as per requests)


Technical feture of round cone light pole shut welding machine:

Pole dia range 60-300mm
Max pole length 14000mm
Sheet metal thickness 2.5-4mm
Pump motor power 1.5kw
Rotate speed 960RPM
Trail car motor power 3kw
Rotate speed 1000RPM
Welding machine model YM-350KR1(CO2 MIG welding machine)
Profile dimension(L*W*H) 16410*1600*1700mm
Weight 15000kg



the light pole shut welding machine is easy to operating, high productivity, better welding


the welding seam is sooth and flat. don't polish defore galvanizing. it is perfer equipment

of energy conservation and environment protection.


OPTION:( detail see attached photos)

1. Lincoln welding machine (USA BRAND)

Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc

Welding process

2. Fast motorized return back for dolly

Note:for the standard machine, the dolly return back can be motorized with working

speed, it is very slow for return back process. So, normally, the operator will open the

dolly clutch and push the dolly by manual.

In order to reduce the manpower, we have option: Fast motorized return back for dolly.

The operator only push button, the dolly will be back to the welding head.

See attached detail photos.

3. Both Side additional hydraulic cylinder

It is suitable for small diameter big thickness light pole, or steel plate with high

tensile strength light pole.

With this additional option, the diameter from 60~340mm, thickness 2.8~6mm,

all pole can be suitable. And easy for operation.

Guarantee & After Sale Service:

Guarantee for 1 year excluding consumable parts .Extra fee is paid if out of date.

Any damage to the machine caused by improper use will be charged.
when receiving the your money, we will prepare machine for you, it will spend

15-30days, to get the shipping pictures for you.
24-hour technical support Internet or by Telephone, free instructions and
Problem solving.
Free installation and fully test before sending and free training for operators

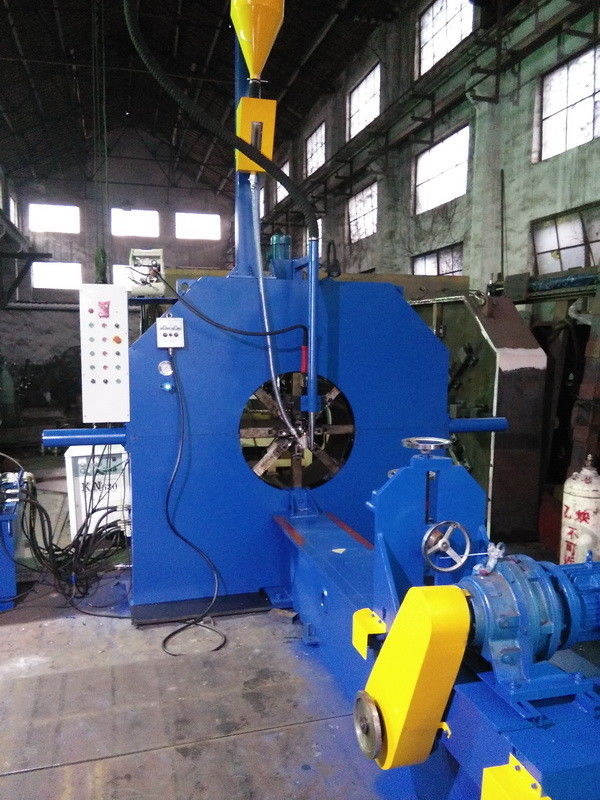

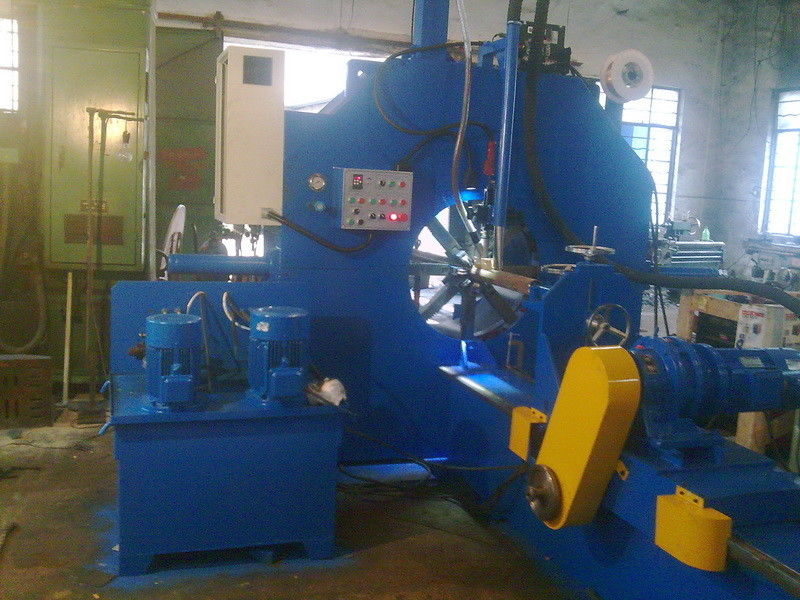

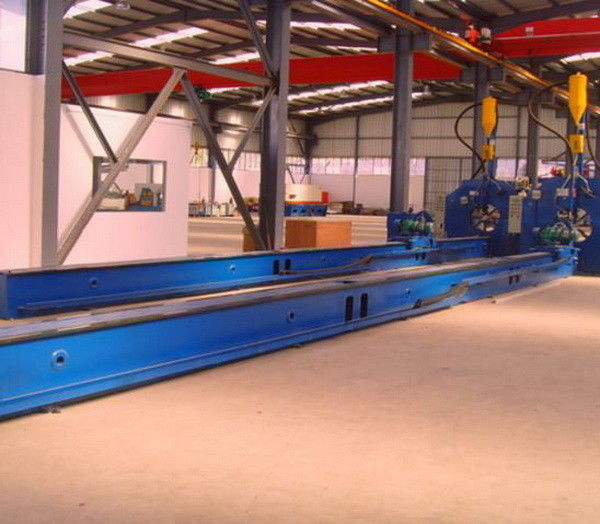

photo of the12m street light pole shutting welding machine SK340/12000
