12M Light Pole Welding Machine Shut Welding Seam 3m/min With Gas Shield Welding

12M Light Pole Welding Machine Shut Welding Seam 3m/min With Gas Shield Welding

  • Highlight

    steel pipe welding machine

    ,

    seam welding equipment

  • Product Name
    Steel Tube Welding Machine
  • Application
    Light Pole Producing
  • Certificate
    ISO 9001-2008
  • Worktable Length
    16000mm
  • Feeding Device
    Pulling Dolly
  • Origin
    China
  • Current
    Alternating Current
  • Weld Diameter
    340mm
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    340/1600
  • Minimum Order Quantity
    1set
  • Price
    negotiation
  • Packaging Details
    iron pallet with plastic cover.
  • Delivery Time
    According to the requirement of order
  • Payment Terms
    T/T or L/C
  • Supply Ability
    2 sets per month

12M Light Pole Welding Machine Shut Welding Seam 3m/min With Gas Shield Welding

12M Light Pole Welding Machine Shut Welding Seam 3m/min With Gas Shield Welding





Specifications of light pole welding machine:

Semi-automatic Pipe Welding Machine
1 Using submerged arc welding
2 Welding speed 1-3m/min
3 Non-polluting

Semi-automatic Pipe Welding Machine

Descroption for street light pole shut welding machine:


This machine adopts submerged arc welding without luminous welding speed is quick.

It is easy and quick for the polygon pole with manual adjustment; Welding power is from

shanghai welding factory; the welding is continuous and beautiful and also with strong

penetration; From in one time; The welding efficiency is high and the speed is 1 to

3 meters per minute; It is three times to the gas shielded welding; The welding cost is

less than gas shielded arc welding; It is the fastest and lowest price equipment;

Feature:
1 semi-automatic submerged arc welding production lines widely used in all kinds of

steel pipe; round-and-cone; polygon-high poles such as the welding seam sheet;

2; Using submerged arc welding; surface smooth; non-polluting; non-luminous;

open-length welding; welding speed 2-3m/min; With high-speed welding; less investment

and savings wire; a particularly low price; the advantages of simple operation;



SN Item Value Unit REMARKS
1 Welding length 16 Meter CAN BE EXTENDED
2 Welding thickness 3~12 mm
3 Welding Diameter 50~850 mm
4 Welding current 630 A
5 Welding Speed 1~3 m/min

6

Measure
L 15000 mm
W 1200 mm
H 1500 mm
7 G.W. 2700 kg



Information of the light pole shutting machine:



Light pole seam close-welding machine:LPW-340/16000
This machine is used to welding light pole column after bending. It will close the pole seam

and weld the seam automatically.This is one unit machine in whole light pole production line.
The machine has hydraulic station,welding system,pulling trolley and machine body etc.
Through the hydraulic station,the power will push cyliner.the extension of cyliner will close

the 8 sets of clamping wheels by chain to finish closing seam.Same time,the pull trolley will

pull the light pole to move forward and welding system to weld seam automatically.
For welding system,there are two welding functions, submerge welding+CO2 protection welding.

The user can choose anyone of them and easy to change.


Parameters of light pole shut welding machine:


1. Welding diameter:60-400mm
2. Welding length:16000mm as per requests
3. Welding thickness of pole:2.8-6mm
4. Power of pump motor:4KW
5. Power of pulling trolley motor:4KW AC motor with speed adjustable
6. Welding machine:630A with submerge ARC welding+Gas shielded welding functions
7. Welding wire diamater:1.2 mm or 1.6mm as per the thickness of light pole
8. welding speed: 1.1-2m/min
9. Weight of machine:6100Kgs
10. Overall sizes:22000x1800x1800mm

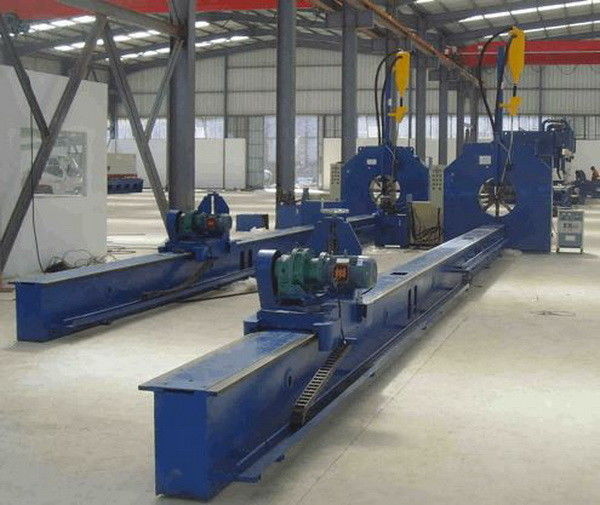

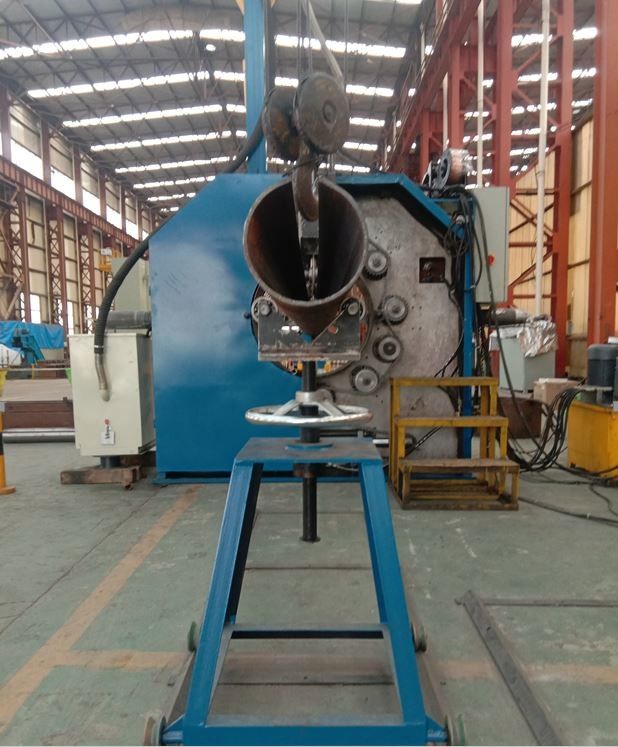

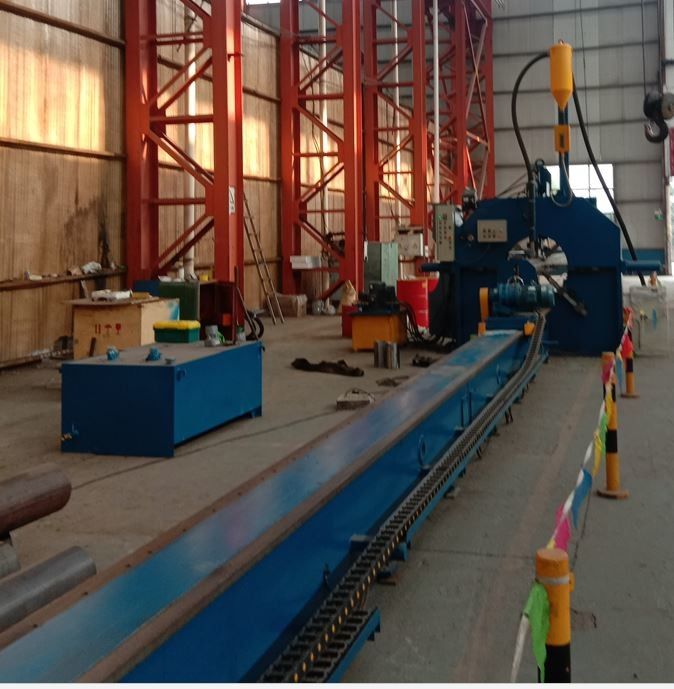

Machine photo:





12M Light Pole Welding Machine Shut Welding Seam 3m/min With Gas Shield Welding 0

12M Light Pole Welding Machine Shut Welding Seam 3m/min With Gas Shield Welding 1
