Street Light Pole Welding Equipment single seam Processing Steel Tube Customized

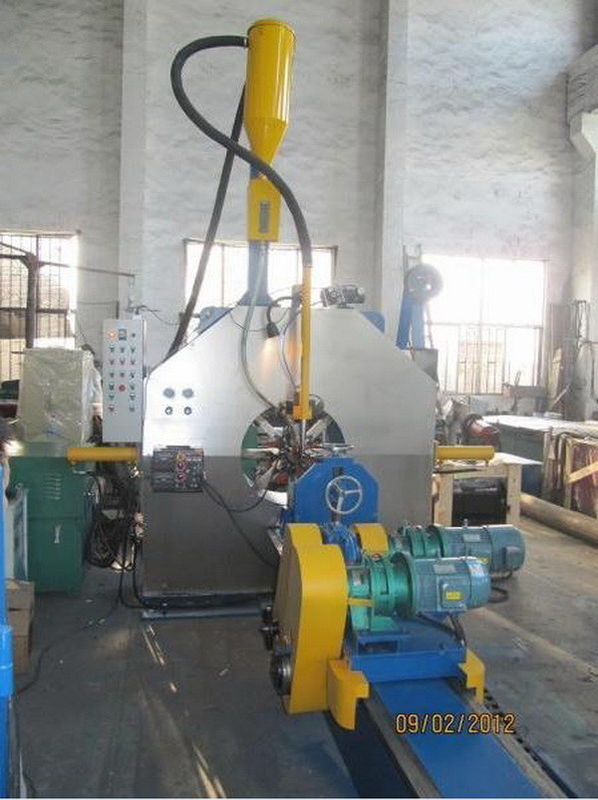

Description of light pole shut welding machine:
1. This machine composed by main machine head , tractive body and feeding shelf.
2. Tractive body was moved by collet in small vehicle nipping the steel poles collet.
When the small vehicle moved, drived steel pole, from small collet to big collet , regularity
moved. The big side of the steel pole was hold by feeding vehicle, force automatic sewing
from head of machine to steer able wheel. At one time, the welding machine starts welding.
3. This machine adopt multiple wire submerged arc welding, solder was reclaimed automatic.
Welding line was symmetrical and slinky. It has strong filter, forming one time, and be with high
welding efficiency. The speed of welding achieve 2 to 3 meters per minutes, is about 3 times
of the gas welding .
4. The cost of the welding is lower than gas welding. It is with speedy welding ,high efficiency
,and lowest price in China light poles industry now.
Features for light pole welding machine:
Beveled cutting line: for cutting trapeziform steel plate without lineation,
with high efficient and good accuracy
Double-linked hydraulic press brake:
Comprises of two 200T-400T hydraulic press brakes, which are linked together and work
Can be controlled by electric or CNC system
Auto seaming and welding machine:
Comprises of main welding unit, pulling device and loading table
Automatically seam the folded pipes and weld
Steel post straightening machine
Steel pipe bending machine: bending parts for lamp posts
the light poel processing step:
1 semi-automatic submerged arc welding production lines widely used in all kinds of
steel pipe; round-and-cone; polygon-high poles such as the welding seam sheet;
2; Using submerged arc welding; surface smooth; non-polluting; non-luminous;
open-length welding; welding speed 2-3m/min; With high-speed welding; less investment
and savings wire; a particularly low price; the advantages of simple operation;
|1||Welding length||16||Meter||CAN BE EXTENDED|
1. Lincoln welding machine (USA BRAND)
Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc
2. Fast motorized return back for dolly
Note:for the standard machine, the dolly return back can be motorized with working speed,
it is very slow for return back process. So, normally, the operator will open the dolly clutch
and push the dolly by manual.
In order to reduce the manpower, we have option: Fast motorized return back for dolly.
The operator only push button, the dolly will be back to the welding head.
3. Both Side additional hydraulic cylinder
It is suitable for small diameter big thickness light pole, or steel plate with high tensile
strength light pole.
With this additional option, the diameter from 60~340mm, thickness 2.8~6mm, all pole
can be suitable. And easy for operation.
