Universal Vertical Plate Rolling Machinery Three Roller CNC Folding

Universal Vertical Plate Rolling Machinery Three Roller CNC Folding


W11S Universal Rolling Machine, Plate Rolling machine, Metal Rolling machine,
hydraulic rolling machine, metal plate rolling machine, hydraulic roller machine,
Pre-Bending Rolling Machine
1. To coil plate into different sharps such as cylindrical form, conic form and arc,
it adopted Japan hydraulic technical
2. Top roller can do vertical and level motion, up and down, parallel translation is
3. Upper roll can move in vertical and level include pre-bending function
4. Adopted many points to lubricate Universal Plate Rolling Machine
5. Mechanical, hydraulic, electricity all system set over loading protect device
6. Fitted quality CNC system fault check itself automatically, error give an alarm,
mistake protection and so on pipe bener
7. Adopt hand switch button box easily operate Universal Plate Rolling Machine
8. Simple foundation equipment, it can move to operate
Main Feature Of Plate Rolling Machine:
1. Pre-bending is available by means of direct pressure from top-roller that can be
adjustedin four directions - upwards, downwards, right, left. The movement is figured
as above sketch map.
2. Cone-bending function is also available by adjustment of two ends of top roller to
make top roller inclinable, so that one end is in low position, another is in high position,
with the help of cone-bending device, the machine can carry out cone bending.
3. Of course, the required cone angle can not be reached in one time of operation, it
needs some operations through gradual adjustment of the declining angle of top roller.
During the operation, workpiece lies on the bottom rollers, the workers do not have to
buttress it, so workers are safe and easy to run the machine.
4. The shape of " O" , " U" , " R" Or combined section shape is also available.
5. The machine is completed with economical PLC control function achieve high
working efficiency.
6. PLC is from SIEMENS; Digital Screen is from WEINVIEW, Taiwan; Hydraulic valve,
O-Sealings are from UOSHEN, Taiwan
Technical Paramter:



rolling thickness

Max pre-rolling thickness Plate width Diameter of upper roller


motor power

(mm) (mm) (mm) (mm) (kw)
12*2000 12 10 2000 250 5.5
16*2500 16 12 2500 300 15
18*3000 18 14 3000 350 15
20*3000 20 16 3000 375 22
30*3000 30 25 3000 450 30
40*4000 40 35 4000 630 55
45*4000 45 40 4000 660 75
50*4000 50 45 4000 700 75
60*4000 60 55 4000 780 90
70*4000 70 65 4000 840 110
80*4000 80 75 400 900 110
90*3000 90 80 3000 800 90

1. Italy Technology.
2. Upper-roll fixed,the two rollers under a fixed turn around the center arc movement
take-off and landing,under two separate movements canroll up or down with.
3. On a plate material does not need to complete U-turn and pre-bending roll-round school,
and other processes.
4. Rollers are mainly the work of the three-driven roller to ensure that any thickness of
the material sent to a good rolling function.
5. Due to the location of the three roller can rely on the close,to achieve a small diameter
tube and rolling round the school.
1. Easy to operate,rolling ways to diversify.
2. Simple movement(horizontal and vertical movement of synthetic campaign to lift the arc
trajectory),a small fault.
3. Plate rolling process,always in a state of clamping,the deviation will not slide.
4. The work of the three-roll,rollthe same track.
5. Rollers work in any state to release the space work out ,no need to reach the top position.
6. Microcomputer control, synchronization accuracy of ±0.2mm.


More information please contact us:


WhatsApp:+86 13961729519





download brochure here

rolling machine.pdf

Machine Photo:

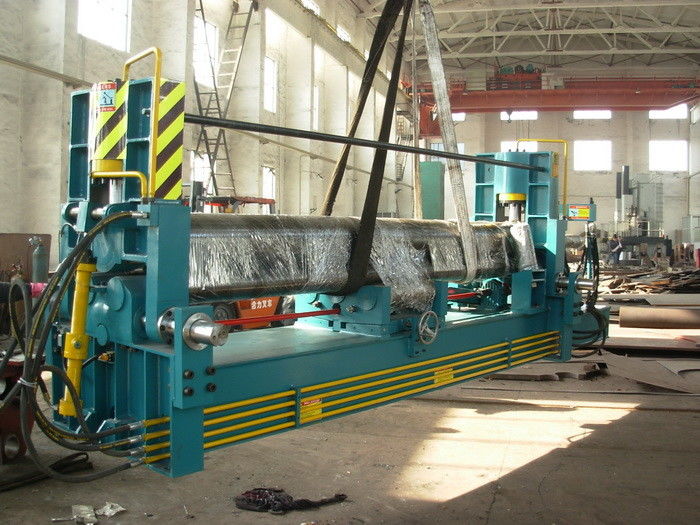

Universal Vertical Plate Rolling Machinery Three Roller CNC Folding 0

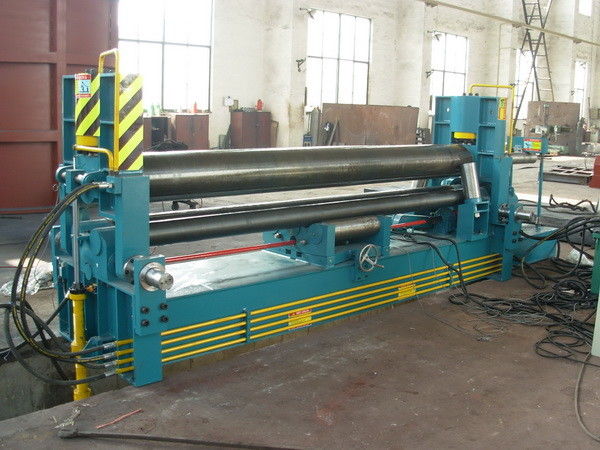

Universal Vertical Plate Rolling Machinery Three Roller CNC Folding 1
