Plate 3 Roller Bending Machine / Sheet Metal Roller Machine Mechanical

Plate 3 Roller Bending Machine / Sheet Metal Roller Machine Mechanical

  • Highlight

    plate roll bending machine

    ,

    pipe bending rolling machine

  • Machine Drive
    Mechnical Drive
  • Name
    Metal Sheet Bending Machine
  • Machine Type
    Roller Bending Machine
  • Raw Material
    Q235 Steel
  • Material Of Roller
    45# Steel Forging
  • Model
    W11-20x3200
  • Place of Origin
    China
  • Brand Name
    wxjq
  • Certification
    ISO
  • Model Number
    W11-20x3200
  • Minimum Order Quantity
    1 set
  • Price
    USD
  • Packaging Details
    nude packing
  • Delivery Time
    35 days

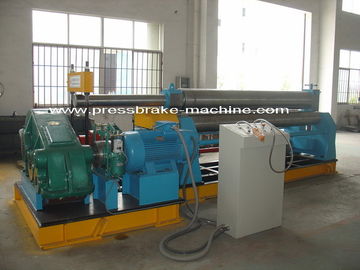

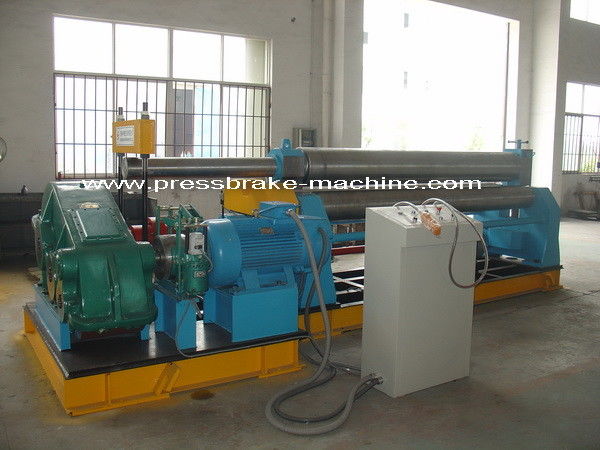

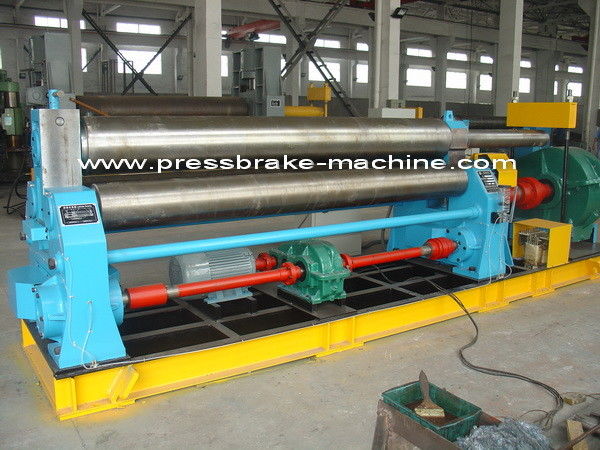

Plate 3 Roller Bending Machine / Sheet Metal Roller Machine Mechanical

Plate 3 Roller Bending Machine / Sheet Metal Roller Machine Mechanical



Feature:




The machine widely used in petroleum, chemical industry, cement, bioler, shipbuilding,

aviation, water conservancy, power transmission towers and other machineary and

equipment. Its working principle is rotating bending deformation. For the upper roller

can be woved no matter up and down, but also horizontally, so no need additional press

or equipment, can realize bending, as well as correction of the workpiece



Main Working Principle :



this plate rolling machine is upper roller adjust type, and upper roller in middle of two

down rolls and drove by lead screw to move up/down and to bend the steel plate.

the equipment composed of working parts and drive system two parts. The working parts

composed of right and left bearing plate , one upper roll, two down rolls (these three rolls

material is 45# steel with heat treatment), lifting screw and worm wheel and other accessory

parts. Down rolls drive upper rolls to move. Upper rolls can adjust up/down. Drive system

composed of main motor, main speed reducer gear and other accessory parts.

down rolls were drove by main motor and main speed reducer gear, the spindle of main

speed reducer drive two down rolls by one group gears, the direction adjusted by the

main motor.

upper rolls lifted by accessory motor and vice speed reducer drive worm pole and worm

where of right/left rolls bearing plate.

unloading device is used for bending circle type to remove the work piece. while unloading

the upper rolls move to up limit position, the balance device on upper rolls ends hit upper

rolls to remove the work piece.



Machine Usage Range:



This plate bedning machine is three rolls machine, upper roller can adjust. It is used to

bend different diameter of steel into circle sharp. And it is widely used in chemical industry,

ships industry and so on.





Major Parts Of The Manufacturing Process:



1.

Working rollers: cast steel ingot(chemical composition analysis):check performance

forging roughcast-forging annealing-UT

flaw-roughing(chemical tests)-heat treatment(hardening and tempering)-UT flaw-semi finishing-finishing-MT

2.

Large forigings: cylinder body, gear, gear shaft forging roughcast-surface imspection-roughing-UT flaw-UT flwa detector hear treatmenat-finishing

semi-finishing-MT

3.

Welding structure: racks, chassis, wheel box plate into the factory(chemical compositon analysis, mechanical test)-pretreatment-for sheet metal

cutting-welding-seam UT or RT flaw-annealing treatment-roughing-finishing-vibration destressing-hot blasting-finishing 5-4 major parts of the

manufacturing process.





Main Technical Data:



Machine type W11-20×3200
Max thickness of plate 20mm
Max width of plate 3200
Yield limit of the plate 245Mpa
Min thickness of roll plate 4mm
Min diameter with max size Φ750mm
Top roller diameter Φ340mm
Bottom roller diameter Φ270mm
distance of two bottom rollers 360mm
Drive speed about 4.5m/min
Main motor 18.5Kw
Lifting motor 5.5Kw
reducer gear ZSY224









Warranty And Service:


one year warranty for whole press.
all spare parts are available as we produce most of the parts in our factory.

it is easy to get the electric parts as all are international famous brands.
we can provide technical support via email, phone or video.
we can send out engineers for service, installation or training with reasonable additional cost.
English operation and maintenance manual is provided with the press.
All safety warning tags and control panels are in English.
