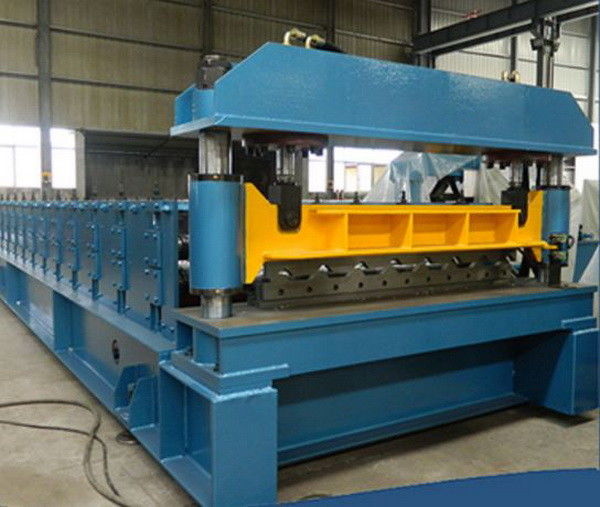

PLC Control Sheet Metal Forming Equipment Roof Tile Forming Machine

PLC Control Sheet Metal Forming Equipment Roof Tile Forming Machine

  • High Light

    section bending machine


    sheet metal folding machine

  • Structure
    Frame Structure
  • Name
    Sheet Roll Forming Machine
  • Type
    Forging Operation
  • Material
    Mold Forging
  • Advantage
    Easy To Maintenance
  • Installation
    According To Customer's Requirement
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    iron pallet or wooden case
  • Delivery Time
  • Payment Terms
    L/C, T/T

PLC Control Sheet Metal Forming Equipment Roof Tile Forming Machine

PLC Control Sheet Metal Forming Equipment Roof Tile Forming Machine




The roll forming machines can produce various of steel roller shutter doors, it is a new

building materials, the products are widely used as the roof and wall of factory, warehouse,

garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages,

such as easy installation, short building period, beauty, light weight but high strength.
The chart of Process Flow and components
Manual uncoiler— Roll forming machine— Computer control system— Hydraulic control

system— Form cutter


Advantages of the roofing sheet roll forming machine
1. High efficiency
2. Lower cost
3. Long life time: 30years
4. Low energy consumption
5. PLC control, Panasonic or Siemens or eura
6. Easy operation
7. Beautiful and best quality

8. Esay control.
Man-made uncoiler-Roll forming machine-compture control system-hydraulic control

system-form cutter.




High speed with ISO standard used roller shutter cold roll forming machine design allows

for the production of traditional tile panels and fastened tile panels. The step width and

depth can be varied via the touch screen control. This step glazed tile roll forming machine

produces a profile that has an adjustable depth and an adjustable reveal that gives panels

the true appearance of clay tiles. This machine can produce through fastened panels in steel.

It is capable of produce two different roof tiles with the same tooling, creating a perfect,

scrape-free finish.
Roofing Step Glazed Tile Roll Forming Machine Product Feature and Usage
The colored steel tiles produced by this line look beautiful, elegant and noble. They are

used as the roof of garden-like factory, hotel, exhibition center, villa, civil construction, Etc.




Suitable to process Steel plate
Rollers 13rows
Dimensions 11*1.2*0.9m
Power 3kw(2sets) cycloidal needle wheel type
Diameter of the roller ¢70mm
Frame of the machine Welded 300H steel side board is made of 16mm steel structure
Cutting to length using flying saw cutting
Decoiler: Expansion type max ,loading1-2T
Voltage 380V 50Hz


Dimensions 7500*1500*1500mm
Large frame 350H steel
Rolling wheel Forging 45# steel
Diameter of roller 72mm
Roller station 14 rows
Main power 3kw with reducer
Rolling speed 8-12m/min
Rolling thickness 0.2-0.8mm
Feeding width
Machine weight 4T or so
Chain 1 inch
Middle plate 14mm


Packaging & Shipping:


Items per Carton:
1 Sets/Set
Package Measurements: 650X155X155 cm
Gross Weight: 5000.0 kg
Gross Weight per Unit: 0.0 kg
Package Size per Unit: 0X0X0 cm
Package Type: naked
