Rolling Sheet Metal Forming Machinery 380V 50 3PH Steel Beam Bending

Rolling Sheet Metal Forming Machinery 380V 50 3PH Steel Beam Bending

  • High Light

    sheet metal forming equipment

    ,

    sheet metal folding machine

  • Machine Type
    Pipe And Tube Bending Machine
  • Name
    Section Steel Bending Machine
  • Application
    Machinery & Hardware
  • Type
    Rolling Forming Machine
  • Power Supply
    380V/50/3PH Or Customized
  • Character
    High Performce, Easy Operating And Bending Many Section
  • Place of Origin
    China
  • Brand Name
    wxjq
  • Certification
    ISO9001
  • Model Number
    W24s-45
  • Minimum Order Quantity
    1 set
  • Price
    USD
  • Packaging Details
    iron pallet or wooden case
  • Delivery Time
    25days
  • Payment Terms
    L/C, T/T

Rolling Sheet Metal Forming Machinery 380V 50 3PH Steel Beam Bending

Rolling Sheet Metal Forming Machinery 380V 50 3PH Steel Beam Bending





Characters:
The two lower rollers are normally active transmit rollers. In other condition, all the three rollers

could be active transmit rollers. The two side rollers do arc up and down movement around the

rotary centre. There are roller-supporting devices on both two sides to ensure abnormal-section

material rolling quality.
The bending machine has compact structure, reliable performance, small size, complete function,

high efficiency, and easy operation. It is a kind of advanced equipment at home and abroad.


Performance Overview:
The machine is the head part of machine and machine body stiffener design, and be annealed

to reduce internal stress, overall there is enough strength and rigidity to prevent permanent

deformation
The use of advanced and reliable arc down structure, rotating around the center of the two

lower rollers (upper roller) to do an arc down movement; Three work rolls are active rolled

by three independent hydraulic drive; A feeding finished, Various profiles (angle, channel,

H section steel, round steel, etc. ) end pre-bending and roll forming bend can be bent into a

variety of profiles which needed to be round, curved, spiral, elliptical and other artifacts

(Is the only manufacturer using this structure. )
No hydraulic supporting roller on both sides of machine can provent non-symmetrical profiles

distorted in the process of rolling, enabling non-symmetrical cross-section profiles to ensure

the quality of volume curve (finished in the natural fall under gravity, unloading tube is convenient. )
Fully hydraulic drive: Right lower pre-bending roller, three-roll (both active roller) motor rotation

bending, left pre-roll bending, back bending check round, discharge.
Microcomputer controller dynamic intuitive color touch screen and generous, you can set the

movement of two lower rollers displacement vector and can store 10 kinds of data.
A foot switch can be used to complete pre-bending, bending, thick part of the material

pre-bending, back bending, discharge, reset, the whole process
Motor pump (China famous brand, the quality of Gold) plug connected, concentric high,

little vibration, low noise (noise level 65 dB. )


Introduction:
The steel plate, beam, bar bending machine is a highly efficient processing equipment

designed for bending special steel material including: angle steel, U steel, I beam, flat steel (bar),

square steel, round steel, etc.
Loading the material, the bending machine will roll, and straighten the material at one time.
The bending machine is widely used in petroleum, chemical industry, water& electricity, ship

building, and machine manufacture business, etc.

Parameter:



Technical data W24S
6 16 30 45 75   100
Rolling speed (m/min) 6 5
Steel yield limitation(mpa) S=250

Angle steel
Max. size (mm) 40×5 70×8 80×8 90×10 100×10 120×12
Min. Dia. (mm) 800 1000 1200 1500 2000 2500
Min. size (mm) 20×3 30×3 35×3 36×5 38×4 40×5
Min. Dia. (mm) 400 550 560 600 600 720

Angle steel
Mx. size (mm) 50×5 80×8 90×10 100×10 120×12 140×16
Min. Dia. (mm) 800 1000 1100 1300 1600 1800
Min. size (mm) 20×3 30×3 35×3 36×5 38×4 45×5
Min. Dia (mm) 400 550 500 600 700 760

U type steel
U steel No. 8 12 16 20 25 28
Min. Dia. (mm) 600 800 800 1000 1100 1700

U type steel
U steel No. 8 12 16 20 25 28
Min. Dia. (mm) 700 900 1000 1150 1600 1700

Flat steel
Max. section (mm) 100×18 150×25 180×25 200×30 220×40 250×40
Min. Dia. (mm) 600 700 800 900 1000 1200

Flat steel
Max. section (mm) 50×12 75×16 90×20 100×25 110×40 120×40
Min. Dia. (mm) 500 760 800 1000 1100 1300

Round pipe
Max. section (mm) 42×4 76×4.5 89×5 89×8 114×5 159×5
Min. Dia. (mm) 500 750 900 900 1200 2000

Round bar
Max. section (mm) 38 52 62 75 85 90
Min. Dia. (mm) 450 600 600 800 1000 1100

Square pipe
Max. section (mm) 45×3 60×4 70×4 80×6 90×8 100×10
Min. Dia. (mm) 750 900 1000 1200 1600 2000

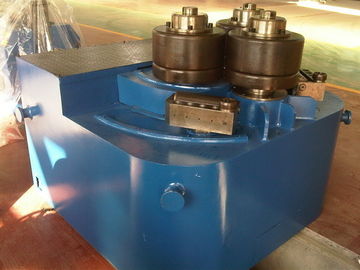

Machine Photo:



Rolling Sheet Metal Forming Machinery 380V 50 3PH Steel Beam Bending 0

Rolling Sheet Metal Forming Machinery 380V 50 3PH Steel Beam Bending 1
