CNC Hydraulic Plate Bending Machine Easy Operation Hydraulic Press Brake

CNC Hydraulic Plate Bending Machine Easy Operation Hydraulic Press Brake

  • High Light

    mechanical press brake


    Steel Plate Bending Machine

  • Name
    Oilline Bending Machine/ CNC Hydraulic Press Brake Machine
  • Pressure
  • Distance Between Housing
  • Tooling
    Adjustable Bootm Die
  • Control
    CNC Control
  • Type
    Hydraulic Drive
  • Place of Origin
  • Brand Name
  • Certification
    CE and ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    65 days

CNC Hydraulic Plate Bending Machine Easy Operation Hydraulic Press Brake

Press Brake Manufacturers CNC Hydraulic Press Brake Machine Oilline Press Machine



wholesale CNC hydraulic press brake machine/ hydraulic guillotine shear/50 ton press brake


hydraulic fold machine Describle


CNC hydraulic press brakes are designed to provide affordable precision, speed, and durability

for years of solid performance. The DA-52 Series features a synchronized Y1, Y2 ram and X, R

motorized back gauge plus a 15 inch color touch screen Windows CNC control with 2D graphics.

DA-52 means extra standard features such as ram stroke, back gauge reach, and open height.

Numerous other equipment and axes are optional.

The DA-52 features the same frame sizes and hydraulics as the XL but with a more simple Y1,

Y2, X configuration and 4 axis control. The DA-52 series is ideal great performance with focus

on more economical basic forming needs.


mechnica sheet bending machine Character


With JinQiu CNC press brake machine tool, the right press brake is within reach. That’s because we have the

industry’s widest selection of press brakes—ranging from 40- to 3,000-ton capacities and

between3 and 11 axes. And with smart, value-added features and options—including Diamond

Soft™ software with auto tooling, collision-check, tool layout, bend reports and back-gauge

editing—our press brake technology can’t be beat. Best of all, we back each machine with

JinQiu machine tool-leading service and support


Performance of press brake bending machine


Choose from two types of CNC electric press brakes , driven by an AC servo motor and ball screw

mechanism and the CNC press brakes, which uses an AC servo motor, ball screw drive, and


CNC Hydraulic press brakes offers high-speed ram and high-precision repeatability

(± 0.001mm).

The ball screw drive enables near instant acceleration between high and low speeds, resulting

in an extremely quick machine. With standard features such as Automatic Thickness Detection,

the CNC press brake machine offers clean and quiet high performance with the utmost in


The Dual Drive System of the press brake separately controls high-speed up-and-down

movement at 200mm/sec and stable repeat-stop accuracy. Like the quick machines, the

Hybrid ball screws reach 200mm/s far faster than a hydraulic valve machine resulting in the

most cycles per minute available. In addition, the Dual Drive System offers energy savings

thanks to an assist device that stores the energy of down movement and returns it during

ram up movement. The ram floats on a gas cushion, thereby greatly diminishing the work

against gravity to rapidly raise the ram to the start of stroke.


CNC press brke machine Technical Parameter:


1 Type CNC electro-hydraulic synchro press brake machine
2 Working force 1600 T
3 Length of table 6000 mm
4 distance between frames 4800 mm
5 Throat depth 1600 mm
6 Open height 1550 mm
7 Stroke 450mm
8 Speed Idle down 70mm/s
working 6.5mm/s
return 55mm/s
9 Main motor 55kwx2
10 CNC system

Type: DA-52 Delem Co., Netherlands

Control 3 Axis: Y1,Y2,X

11 Tool With 1 punching and 1 bottom die
  Main Electric Elements Schneider
12 Seal in the cylinders NOK, Japan
13 Gross weight 180000 kg
14 Overall sizes(mm) LxWxH 6350x8080x6600
15 Packing:

With plastic cover

the machine should be disassembled for transport . it need three person and 15 days to install and testing.

container:1x40’ OT, 2x40’ FR,

17 Service The engineer will go to customer’s factory to install the machine.




























Standard Configuration of CNC hydraulic press brake machine:

Standard four axes(Y1,Y2,X and V)
Holistic welding structure treated by annealing
lower table cylinder crowning mechanism controlled by DA-52 system.
CNC system controls mechanical titled flexible compensation working table
Swiss CYBELEC DNC600 system or Geramny DELEM DA-56 system is optional
High efficiency electric hydraulic proportional system from europe
press brake special light ebcored-gauge from Europe
High efficiency AC servo motor and driver from JAPAN
oil seals from out outside
European or Chinese high efficiency meshing gear pump
ball screw and linear guide
Standard upper and lower dies
Standard front support sheet frame

oilline products beding:




Our Service of NC hydraulic press brake:


Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week

Reply within 24 hours

Provide relevant product information

Answer questions if request

Give technical suggestion

Provide After-sales service 24hr × 7days per week

Test the machine before shipment

Provide technical guidance relate to use the machine

Supply one-year warranty period for the machine

Provide the spare parts at cost price after warranty period

Collect the feedback for the machine working

Provide long-term technical assistance.


download brochure here

CNC hydraulic press brake machine.pdf

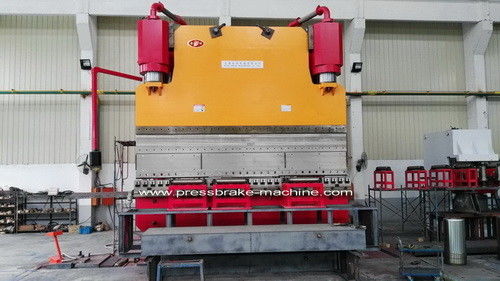

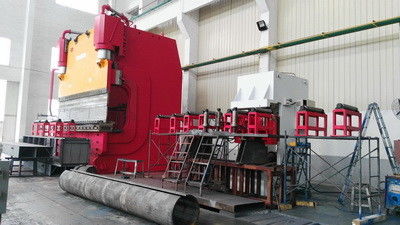

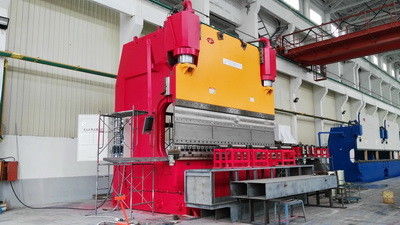

1600T press brake Machine picture:

CNC Hydraulic Plate Bending Machine Easy Operation Hydraulic Press Brake 2
