Hydraulic Metal Shear NC Hydraulic Sheet Metal Guillotine Shear With Feeding

Hydraulic Metal Shear NC Hydraulic Sheet Metal Guillotine Shear With Feeding

  • High Light

    sheet metal guillotine shear


    guillotine metal cutter

  • Range Of Back Gauge
  • Name
    Sheet Metal Shear/hydraulic Guillotine Shear
  • Blade Material
  • Cutting Type
    Vertical Cutting
  • Cutting Width
  • Character
    Cutting Stainless Steel ,mild Steel And Alumminum
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: ,40'FRx1, 40'HQ
  • Delivery Time
    30 days

Hydraulic Metal Shear NC Hydraulic Sheet Metal Guillotine Shear With Feeding

Hydraulic Metal Shear NC Hydraulic Guillotine Shear Cutter Machine With Feeding


supply hydraulic guillotine shear, hydraulic shearing machine,hydraulic cutting machine, sheet press brake machine, CNC press brake,tandem press brake, bending machine


30kw plate cutting machine performace

  • the hydraulic sheet cutting machine used to cut sheet metal and steel plate. Also Corner notcher and edge notching machines.
  • A metal Shearing machine is used for cutting sheet metal to size out of a larger flat stock or from roll stock. The metal to be cut is held in place with hold-downs. 90° cuts are positioned by
  • a squaring arm with scale on it or with a back gauge. Other angles are possible with an angle gauge. Large machines with shadow cut line will have a light that shines over a wire which projectsa thin shadow line exactly where the cut line is which is useful if you mark your metal
  • the hydraulic guillotine shear with a tape measure.
  • The guillotine shearing machine process can produce a shear edge burr, which can be minimized to less than
  • 10% of the material thickness. This is a function of clearance between the blades, and the
  • sharpness of the cutting blades. On some sheet metal shears and most plate shears, the blade
  • hydrulic guillotien shear gap is adjustable for different metal thicknesses. Though they are minor, the possibility of little
  • burrs and hold down marks should be considered in the forming of some end products. Machine
  • capacities shown for mild steel can be 33% or so higher for most types of soft aluminum, and
  • 50% lower for stainless steel. Also, common A36 steel is usually harder than mild steel and
  • maynot cut as easy. Call an American Machine Tools sales engineer for more info. We are
  • accreditedby the Better Business Bureau with an A+ rating.

Standard configuration for stailness steel shearing machine


No. item
1 Standard blade material Cr12MoV
2 Material hold down with hydraulic
3 Front support arms with scale
4 Protractor gauge
5 Back gauge is controlled by DAC-360 system
6 The blade gap is adjusting by the DAC-360 system
7 The cutting stroke is controlled by DAC-360 system
8 The cutting angle is controlled by DAC-360 system
9 Front feeding device with motorized drive
10 Rear collector device
11 Foot switch with emergency
12 Alignment cutting device
13 Hanging type operation panel
14 Back gauge 1000mm range


Technical Data of Hydraulic Metal Shear


No. Name Data Unit Remark
1 Cutting size 12x6300 mm Mild steel
2 Cutting angle 05-2.5° Degree
3 Cutting speed for 16x6300mm 3 Min-1
4 Back gauge rang 20-1000 mm
5 Throat Depth 100 mm
6 Main motor 37 KW
7 High between worktable and floor 1000 mm
8 Axises controlled X back gauge   ball screw
9 Worktable clamping cylinders 26 piece

Overall Dimensions


6750x2605x3050 mm
11 Weight(g.w) 42000 kg
12 Front support arms 6 piece
13 Voltage of machine Client’s request   380v/50hz


415V shearing Machine Feature

  • It’s very popular in metalworking market for cutting metal sheets
  • Various model of cutting 4-40mm thickness and 1000-9000mm length.
  • Steel welded construction, vibrating aging function
  • Shearing gap can be adjusted stepless at will and can do sectional cut
  • Motorized back gauge and cutting number can digital readout
  • Power break protection device to guarantee safety during maintenance
  • Debug and goodafter-sales service


  • guillotine shear All steel welded structure,vibrating treatment of ageing for removal of internal stress,
  • with good rigidity and stability.
  • Intergrated hydraulic transmission system,with good reliability.
  • Triple support rolling guide raikl to eliminate gaps of support and enhance shearing quality.
  • Mechanical rear stopper with manual fine tuning,and digital indication.
  • Clearance in between shearing blades adjusted by hand wheel to be quickly.
  • accurate and convenient.
  • Rectangular blades with four cutting edges to prolon working life,adjustable
  • shearing angle to reduce deformation of the sheet.
  • Upper blade holder has inward tilting struction to facilitate material feed in and also
  • enhance of the work piecision.
  • Function of shearing in section,function of aligning with light

Enclosed Accessory

  • Front arm support, 6pieces
  • Anchor bolt, 4 pieces
  • Nut, some pieces
  • Washer, some pieces
  • Oil gun, 1 piece
  • Foot pedal 1 piece
  • pneumatic device  1 peice

Major Elements
1. CE Conformity including  Light guards
2.  Back gaueg control by the inverter and encode
3.  cutting depth and blade gap can Program on Control DTC-660
4.  control back gauge X and balde gap Z
5.  upper blade ahve two edges and bottom lade ahve four edges for change using
6.  the HRC of balde is 50-55
7. motorized driven back gauge on ball screws
8.  side front arms with scale and stooper
8. Side and rear safety guards and safety interlock switches

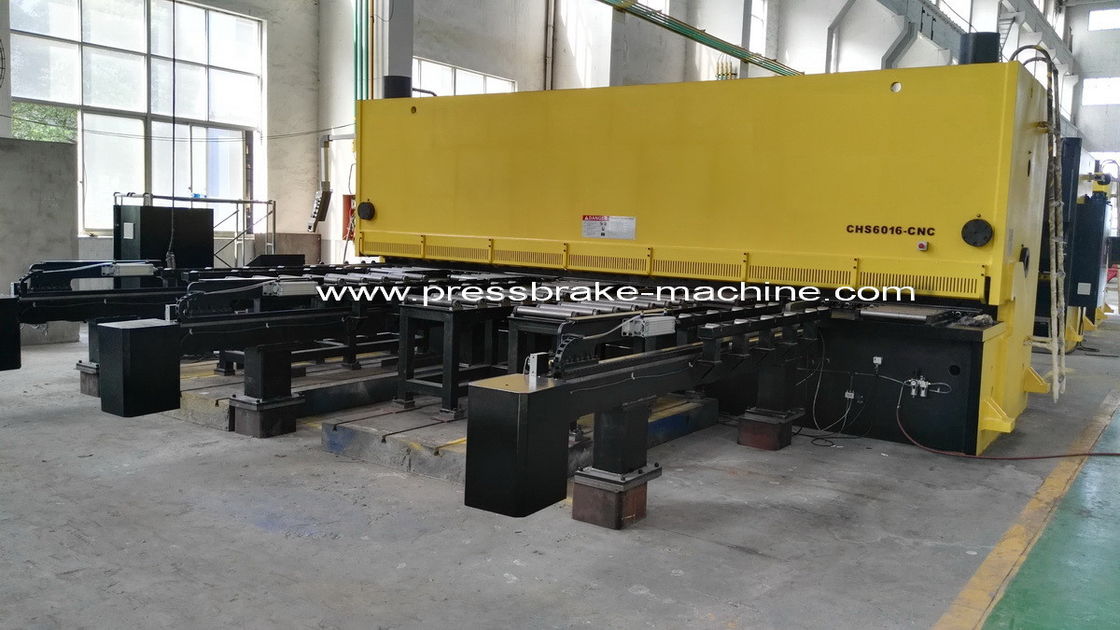

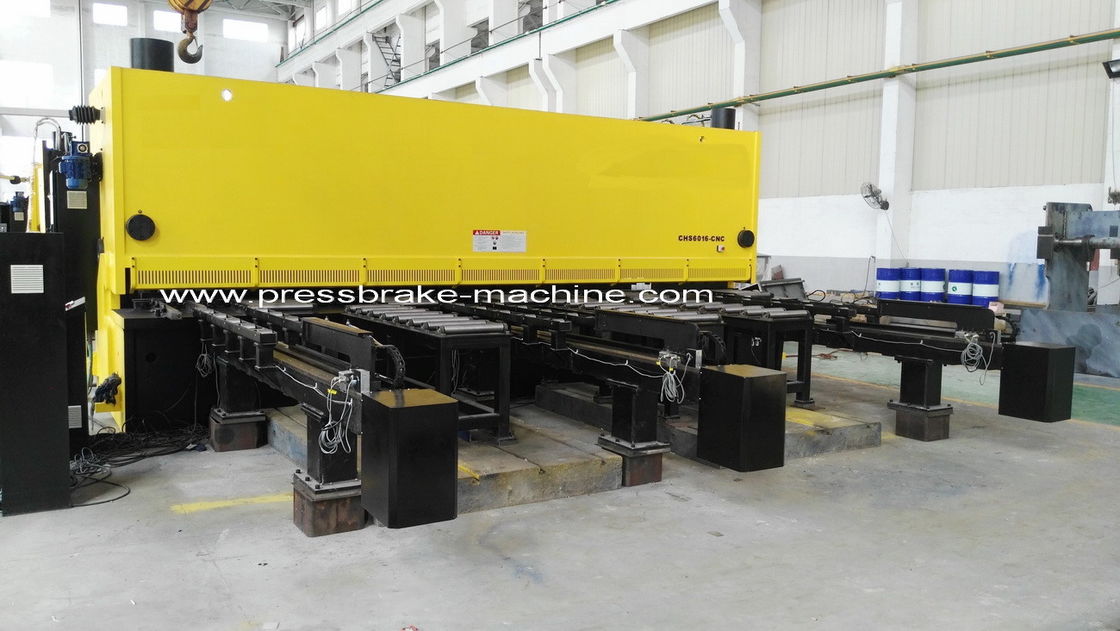

Machine picture

 Hydraulic Metal Shear NC Hydraulic Sheet Metal Guillotine Shear With Feeding 0
