Automatic CNC Press Brake Steel Plate Bending Machine ISO 9001 Certification

Automatic CNC Press Brake Steel Plate Bending Machine ISO 9001 Certification

  • Highlight

    mechanical press brake

    ,

    Steel Plate Bending Machine

  • Name
    Sheet Bending Machine/CNC Hydraulic Press Brake
  • Application
    Cabinet And Steel Box
  • Back Gauge
    Alloy Aluminum Back Gauge
  • Throat Depth
    300mm
  • Feature
    Lower Nosieand Top Bending Quality
  • Synchronization
    Electric-hydrtaulic Type
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    CE and ISO
  • Model Number
    WE67K-100/3100
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

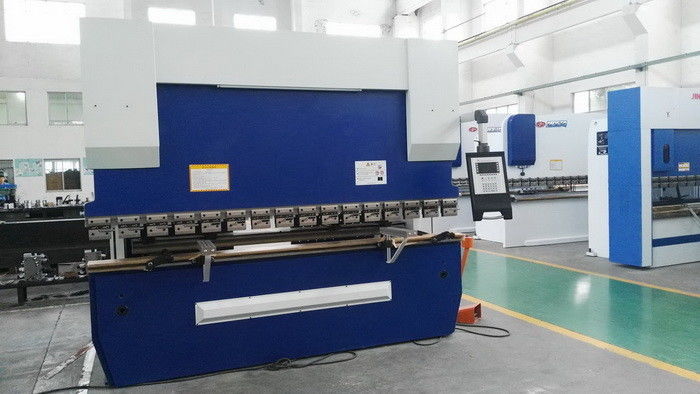

Automatic CNC Press Brake Steel Plate Bending Machine ISO 9001 Certification

Auto Press Machine CNC hydraulic Press Brake Machine Steel Sheet Bending Tools
6m long press brake machine, used press brake machine, CNC hydraulic press machine,CNC sheet bending machine



4000KN hydraulic bending machine Description:

sheet press brake With models varying in capacity from 40 - 300 tons (US),

Amada’s new press brake series

can handle a full range of material thicknesses in bend lengths from 55 to 169.3 inches.

Equipped with a newly-developed AMNC 3i (intelligent, interactive, integrated) control,

the series press brake provides high-speed and high-accuracy with unprecedented ease

of use. A 19" multi-touch LCD panel ensures simplified operation. The user-friendly screen

is designed for intuitive operation (similar to a smartphone) allowing for fast and efficient

entry even if an operator lacks experience. Enhanced database network features provide

better communication between the CAM program and the AMNC 3i — resulting in less

manual interaction and faster processing.

Additional features of the new HG series include:
Bend Indicator technology ensures high-speed and high-precision.
AMTS tooling provides the ideal solution for multi-stage bending.
Independent L-Axis (L-Shift) provides the capability to bend a wide variety of part shapes.
Standard emergency safety features such as an emergency shut-off button on the controller

panel, an interlock (OFF mode), stopped axis movement when guard is opened and a laser

guard device.


Main Feature of hydraulic bedning press



1.Totallly EU standard design, monoblock by welding robots& apparatus and stress relief process by annealing treatment.

2. Bystricpress engineers utilize parametric 3D Slid works using FEM & DOE analysis as well as static and mechanical analysis.

3. Adopt integrated hydraulic system, more reliable and easy for maintenance and the hydraulic system from Bosch-Rexroth, Germany.

4..Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.

5. The stroke and distance of the backgauge is adjustable by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.

6. Inch, single, continuous operation mode being designed for the machine and reversing and maintain time cane be controlled by the time relays.

7. Safe fence and the electric interlocer have been designed for the machine to ensure the operation safety



Character for hydraulic sheet meta lpress brake:


Overall welding process structure for CNC press brake
Closed loop control mode composed of imported famous electric-hydraulic servo valve and

measure ruler
High position feedback precision of sliding block, stable & precise operation, good

synchronization performance, high accuracy of bending and repeated positioning of slide block
Several multifunctional axial of rear stopper device can be used according to customer’s

requirements
Hydraulic system adopt integrated control system to decrease pipeline installation and oil leak,

which will ensure the stability and beauty shape of tool machine
The automatic hydraulic & mechanical deflection compensation structure will eliminate the

influence on product quality caused by deformation of slide block. The NC system will adjust

the compensation automatically. It’s convenient and with high accuracy.
The CNC system adopt world famous brand, which also been used by Holland DELEM, Italy ESA,

Swiss CYBELEC, etc.



Standard Equipment of automatic feeding hydraulic press brake machine



1. System intermedliate Upper clamps with Anti Wedges

2. Plate Support Arams

3. Powered Depth Axis

4. Backstop

5. Light guards

6. Top and Bottom Tooling

7. DELEM DA52 CNC control

8. Germany Bosch-Rexroth Hydraulic

9. Telemecanique/Schneider Electrics

10. Hydraulic and Electrical overload protection

11. Squaring Arm and Front Support Arms

12. Delta inverter with ball screw and polished rod with 0,05mm accuracy

13. Side guard is standard meeting CE regulations.


Technical Parameter for 125ton hydraulic press brake:


Type

Hydraulic CNC electro-hydraulic synchro

Working force

125T

Length of table

3200 mm

distance between frames

2650 mm

Throat depth

320 mm

Open height

660 mm

Stroke

200mm

Speed

Idle down

100mm/s

Working

8.5mm/s

return

75mm/s

support arm

offer two support arms

Main motor

7.5kw

CNC system

Type: DA- 52s Delem  Co., Netherlands
Control Axis:Y1,Y2,X,R and V
 (crowned compensation)

Tool

With 1 punching and 1 bottom die

Main Electric Elements in cabinet

Schneider or Siemens

Seal in the cylinders

NOK, Japan

Gross weight

9300 kg

Overall sizes(mm) LxWxH

3550x1990x2610

Packing:

Iron pallet With plastic cover

Delivery date

30 days after sing the contract


























Quality Guarantee of cnc press brake tooling


Since press brake machine reached the agreed destination, its main parts will be
guaranteedwithin one year or 1000 hours (subject to the earlier mature term).
We take charge of all troubles caused by plate rolling machine's fault and repair
according to the regulation
stipulated by original plants. Factors not accordance with the regulation of original
plantssuch as daily consumed components, wrong operating, lack of maintenance
are not included in the quality guarantee.
