Automatic Cutting Hydraulic Shearing Machine 16mm Thickness Sheet Metal Cutting Shear

Automatic Cutting Hydraulic Shearing Machine 16mm Thickness Sheet Metal Cutting Shear

  • High Light

    steel shearing machine


    hydraulic plate shearing machine

  • Name
    Plate Cutting Machine/hydraulic Shearing Machine
  • Automatic Grad
    Automatic, Manual, Semi-Automatic
  • Cutting Mode
    Manual Cutting
  • Package
    Standrad Export Packing
  • Specification
    Hydraulic Swing Beam Shear
  • Electrical Supply
    380V50HZ/3PH Or 415V/50HZ/3PH
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    pallet with plastic cover
  • Delivery Time
    35 days
  • Payment Terms
    T/T or L/C

Automatic Cutting Hydraulic Shearing Machine 16mm Thickness Sheet Metal Cutting Shear

Automatic cutting Equipment Hydraulic Shearing Machine,16mm thikcness sheet

producing hydraulic shearing machine/guillotien shear/sheet press brake machine

Performance and Feature

1. The second generation of Hydraulic swing beam shearing machine.
2. Rack, blade frame is entire welded,vibration to eliminate inner stress,to maintain good accuracy.
3. Use advanced integrate hydraulic system and good reliability.
4. Use three-point support rolling guide to eliminate the support gap,improve cut quality.
5. The clearance between the blades adjusted by hand wheel rapidly,accurancy and convenient.
6. Rectangular blade.four cutting edges, and loong service life.
7. Adjustable shearing angle to reduce deformation of the sheet.
8. The upper blade frame use introversion structure,easy for blanking to improve the accuracy of production.
9. With the sub-shear function, motorized backgauge,digital display.


Machine Standard Equipement

1) Estun E21S control system
2) Powered Back Gauge X-Axis
3) DELTA inverter controlled back gauge
4) HIWIN ball screw and polished rod with 0.05mm accuracy
5) Squaring Arm and Front Support Arms
6) Germany BOSCH-REXROTH hydraulic valve
7) Germany SIEMENS main motor
8) Telemecanique/Schneider Electrics
9) Hydraulic & electrical overload protection
10) Cutting Line Illumination and Wire for Shadow Line Cutting
11) Top Blade with Two Cutting Edges and Bottom Blade with Four Cutting Edges.(6CrW2Si)


Components and parts :
Hydraulic system: Omega(USA) or REXROTH (Germany);
Pump: Gear pump;
Electrics: Germany Te/Omron;
O-rings: Japanese NOK;
Ball screw: TAIWAN HIWIN;
Line guide rail: TAIWAN HIWIN;
Foot Switch: Karcon (South Korea)
NC Controller: E21 ESTUN China
Standard Equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms      3 pieces
Emergency stop button;    1 set

Back, and front safty fence;   1 set
Shadow line lighting               1 set
Safety foot switch                   1 set
Foundation bolts         1 set
Manuals and diagram  1 book

Technical Parameter:

1 Type NC Hydraulic Swing Beam Shear
2 Cutting length 2500 mm
3 Cutting thickness 6 mm (mild steel at 450 Mpa)
4 Shear angle 1°30’
5 Number of stroke per minute 18
6 Throat depth 150 mm
7 Control system E21s Estun China
8 Control axis X back gauge
9 encoder China
9 Screw of back gauge Ball screw
10 Stroke back gauge 600mm
11 Main motor 7.5kw
12 Main Electric Elements in cabinet Schneider or Siemens
13 Seal in the cylinders NOK, made in Japan
14 Hydraulic pump China
15 Main hydraulic components China
16 Net weight 5300 kg
17 overall size (mm) 3140x1610x1630
18 Packing: Iron Pallet with plastic cover
20 Delivery 30 days after sign the contract

Our Service:
Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
Reply within 24 hours
Provide relevant product information
Answer questions if request
Give technical suggestion
Provide After-sales service 24hr × 7days per week
Test the machine before shipment
Provide technical guidance relate to use the machine
Supply one-year warranty period for the machine
Provide the spare parts at cost price after warranty period
Collect the feedback for the machine working
Provide long-term technical assistance.
More information please contact us:
WhatsApp:+86 13961729519
dowload brochure here
hydraulic shearing machine.pdf

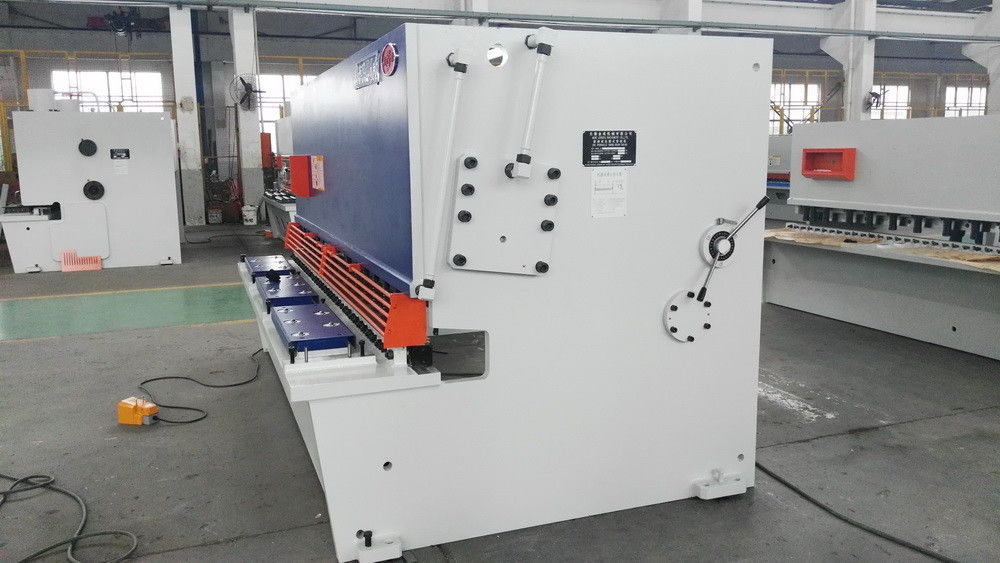

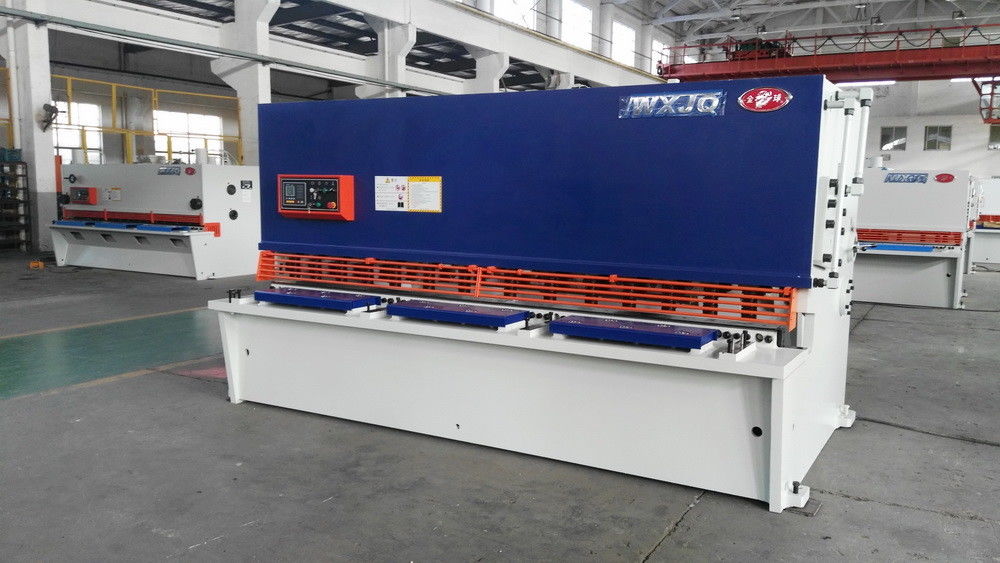

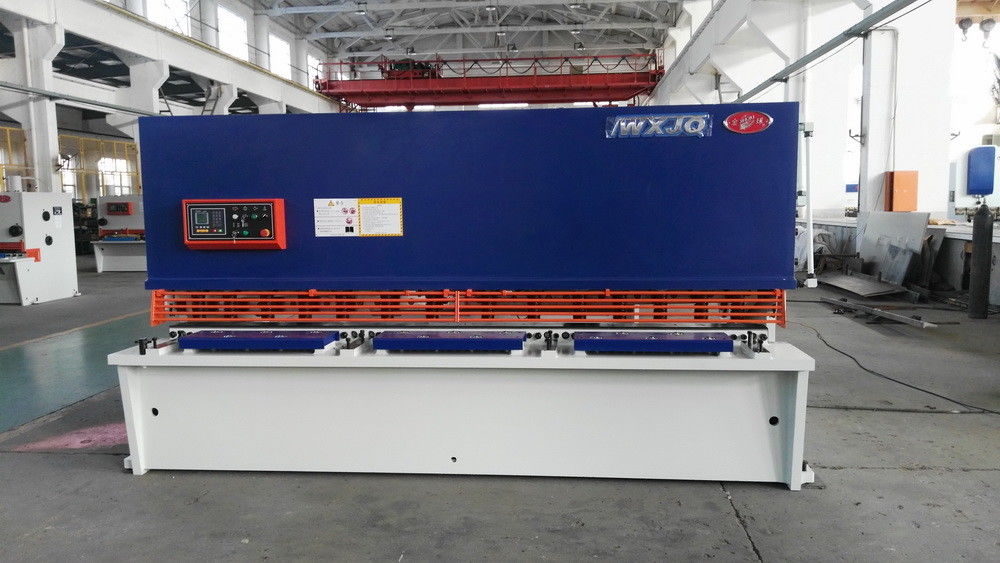

Machine photo
