Metal Hydraulic Baling Press Machine 250Ton pressure, scrap Baling Machine
Product Description
1. Product Name: Hydraulic Metal Baler(Y81-250)
2. Application: Y83-135B hydraulic metal baler is suitable for the steel plants, recycling companies, ferrous & non-ferrous metal smelting industry to compress metal scrap(steel parings, waste steel,
waste copper & aluminum, waste stainless steel, scrap from discarded automobiles) into acceptable furnace charges of cuboids, cylinders, octagons & other shapes, so as to reduce the cost of transportation & smelting, to speed up furnace charging.
3. Quality: This machine apply to ISO9001: 2000 standard.
4. Service:
1) One year guarantee and lifelong maintenance.
2) Any problem, you can call us directly.
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D)Electrical motor, diesel engine or generator for power.
Applications:
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel,
discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.
Specification:
Model |
Main Cyl. Force |
Press Box Size (mm) |
Bale Size |
Bale Weight (kg) |
Motor (kW) |
Y81F-200A | 200 | 1600x1000x800 | 400x400 | 120-200 | 2x18.5 |
Y81F-200B | 200 | 1600x1000x800 | 400x400 | 120-220 | 2x22 |
Y81F-200F | 200 | 1800x1400x900 | 500x500 | 180-350 | 2x22 |
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Service: The machine are always tested and assembled before shipping, customer only need
to follow simple steps to start. Engineers available on phone 24 hours, unsolvable problem come
to fix.
Model Number: Y81F-250
After-sales Service Provided: Engineers available to service machinery overseas
Color: User Defined
Packaging & Delivery
Packaging Details: Nude packing, loading container directly.
Delivery Detail: 30-45 days
Warranty and after-sale service
1), we offer lifelong technical support and maintenance for free
2), 12 months quality guarantee with free spare parts free exchange after installation
3), 24 hours online service through e-mail, phone call, skype etc.
Technical Data:
No. | Parameter, name and contents | remark | |||||||
1 | Main pressure hydraulic cylinder | model | YG340/200 | quality | 1piece | ||||
Nominal push force | 2500KN | ||||||||
2 | Side pressure hydraulic cylinder | model | YG240/180 | quality | 2pieces | ||||
Nominal push force | 1250KN×2 | ||||||||
3 | Cover hydraulic cylinder | model | YG200/150 | quality | 1piece | ||||
Push force | 900KN | ||||||||
4 | Turn bale hydraulic cylinder | Model | YG160/100 | quality | 1piece | ||||
Push force | 500KN | ||||||||
5 | working pressure of hydraulic system | ≤25.0MPa | |||||||
6 | baling chamber size | 2000×1400×800mm | |||||||
7 | Bale size | (400~700)×450×450mm | |||||||
8 | Circle time for single times | about 120 second | |||||||
9 | production capacity | 20Ton/ day | |||||||
10 | bale discharge type | turn over the bale, manual valve operating | |||||||
11 |
motor
|
model | Y200-6 | quantity | 2 sets | ||||
Rated rotation speed | 970rpm | power | 22KW | ||||||
12 | Hydraulic pump | model | YCY160 | quantity | 2 sets | ||||
Certified capacity | 160ml/r | Rated pressure | 31.5MPa | ||||||
13 | container | 40’HC | |||||||
14 | weight | 17500kg | |||||||
15 | Delivery time | 45 days |
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039

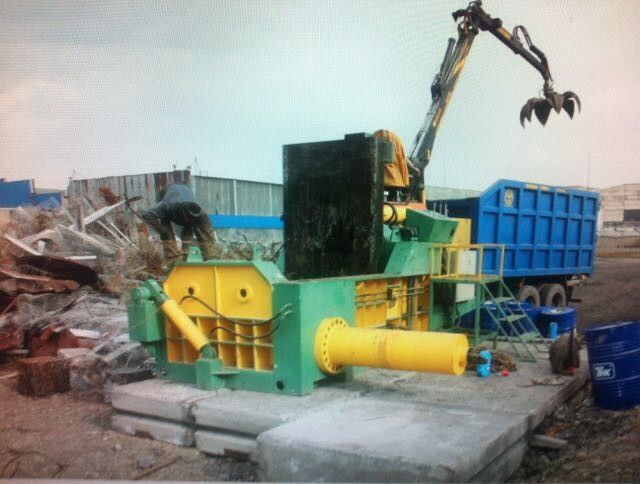

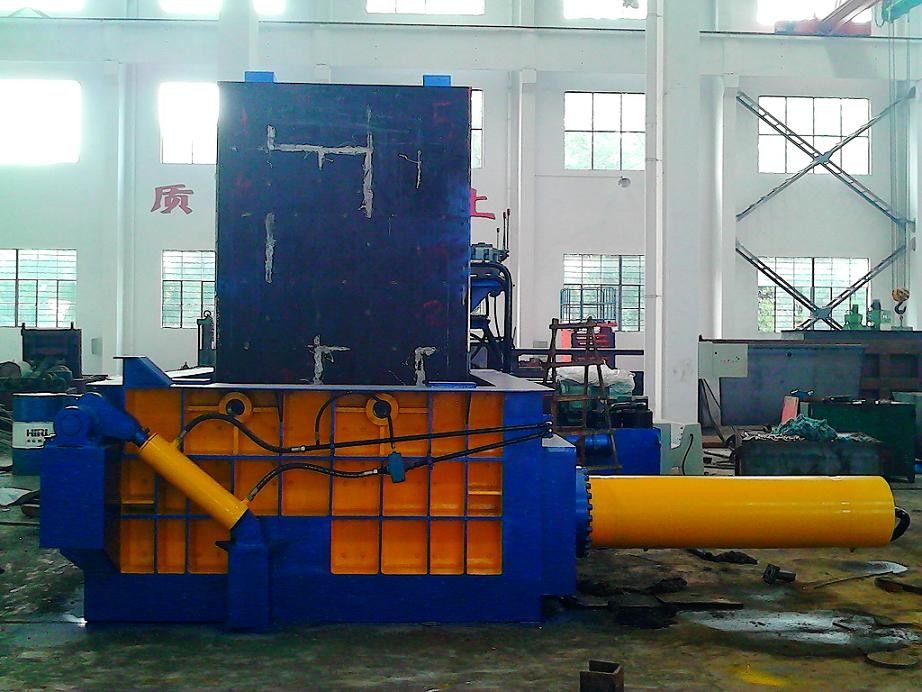

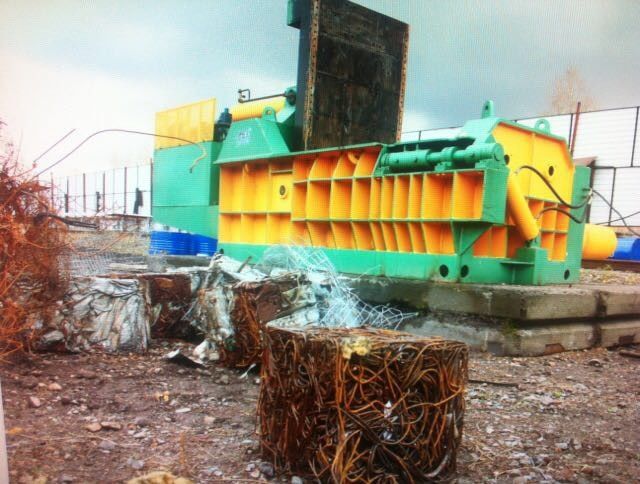

Machine picture:
