Plate Bending Hand Press Brake Carbon Sheet Hydraulic CNC Press Brake 250KN Load
free maintenance press brake machine /sell sheet CNC hydraulic press brake machine/ CNC bending machine
Parameter of CNC press brake machine WE67K-250/3200
Sheet for ming machine Normal force: | 2500 KN |
Length of working table: | 3200 mm |
Distance between columns: | 2650mm |
Throat depth: | 400mm |
Ram stroke: | 200mm |
Ram stroke adjustment : | 100mm |
Max. opening height : | 460mm |
Main motor power : | 22KW |
Weight: | 14500KG |
CNC hydraulic Press Describe
The machine is equipped with hydraulic electric control, freely adjustable slider travels and
inching, semi-automatic, automatic operating criterion convenient for module trial and adjustment.
Up-move type bending design,pair oil cylinders working simultaneously, balanced operation,
convenient,and safety.
With function of keeping pressure and delay time on lower dead spot, to assure the accuracy
of work pieces.
Under the national standard conditions, the accuracy of bending angle can up to ±45´.
With function of slow decline, operator can control work pieces better.
Press brake machine Crowned compensation:
it consist of some wedges to make up during the bending. it is mechnical type compensation device.
the compensation can be made into the manual type and automatic type. the compensation rate
is 2.5mm.
CNC bending machine Main Feature
All steel welded structure.vibrating treatment of ageing for removal of internal stress.with good
rigidity and stability.
Torsion shaft forced synchronization of mechnaical limit stopper balance.with high precision
Intergrated hyduaulic transmission system.large range of speed regulation to transmission of the
sliding block,stable and reliable performance
Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine turning
and digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing
effect upper mold is fitted with tilting warp offset mechanism
For bending machine from 250t up synchronization mechanism of mechanical or electrical hydraulic transmission is fitted lower working talbe is fitted with warp offset mechnaism
Multi machine conbined operation is possible safe gusSSide is optional.
Machine tool Optional
sectional tooling with different length may store forming a certian length to bend the
closed frame wokpiece.
Automatic crowned deflection compensation
front pneumatic sheet support
two-hand control device
light curtain protection or laser protection
any tailor made are available on ewqueste.
Hydraulic bending brake Standard Equipment
1.DELEM DA-52S control System
2.Powered Back gaugeX-axis
3.DELTA Inverter controlled back gauge
4.HIWIN Ball screws & Polished rod with 0,05mm accuracy.
5.Squaring Arm and Front Support Arms
6.Germany Bosch-Rexroth Hydraulic
7.Germany EMB Tubing connector
8.Germany Siemens Main Motor
9.Tele mecanique/Schneider Electrics
10.Hydraulic &Electrical overload protection
11.linear sensor: HEIDENHAIN GERMANY
Service
1.Service package Basic: we offer you rapid trouble shooting through telephone
support and costs for on-site missions are reduced. Special: Engineers available to
service machinery overseas for the necessary maintenance. Partner: Our located
dealers or customers who sell or use our machines are fully behind you, they are
our friendly partner and supply good advice to you.
2.Technical Service(After-sale service) Installation and start-up(Available for complex
and big machines or if you have demand) 8. Digital display system display the
working position of X, Y; 9. Main operation are by the CNC controllers or display system;
Ball screw and line guide rail as optional choices for guarantee the higher precision;
download brochure here
CNC hydraulic press brake machine.pdf

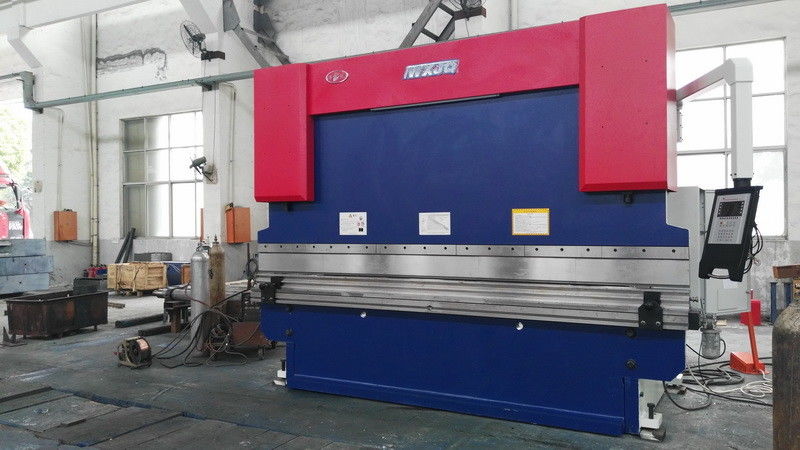

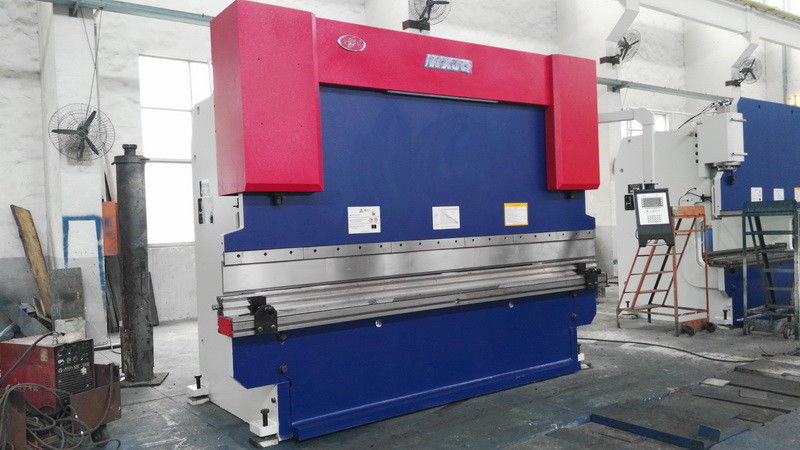

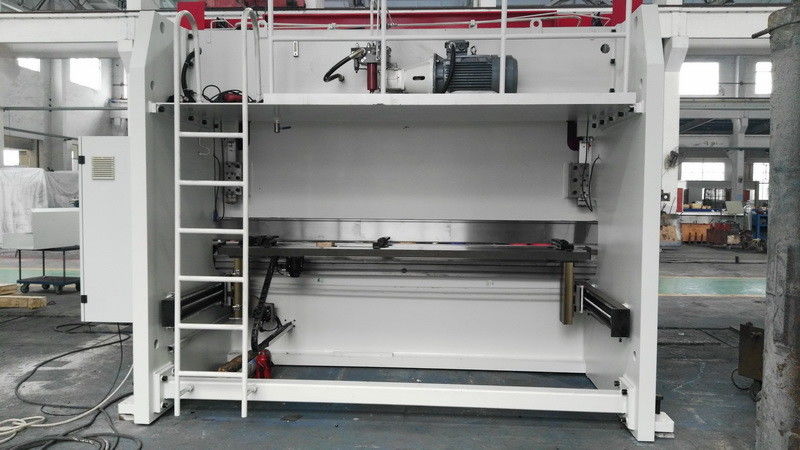

Machine picture:
