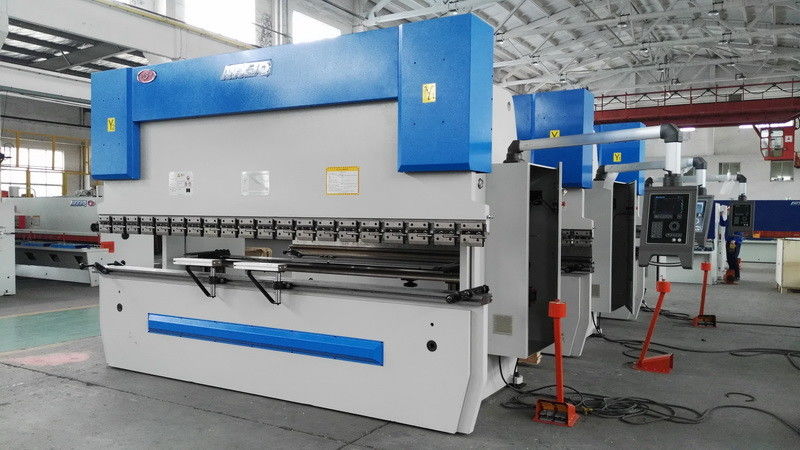

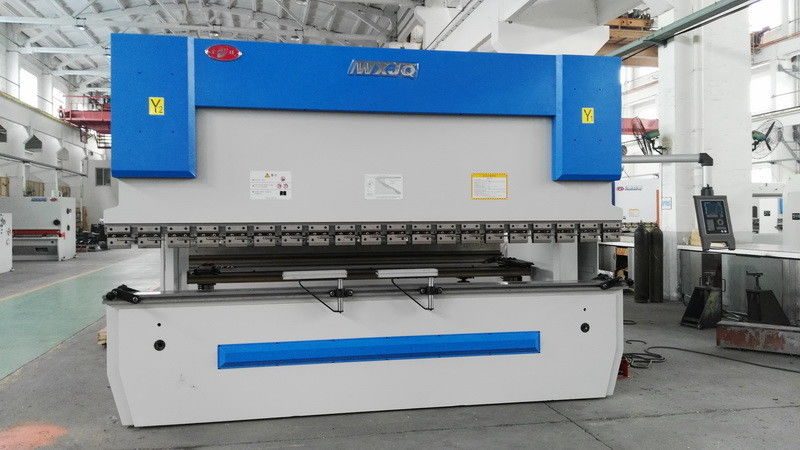

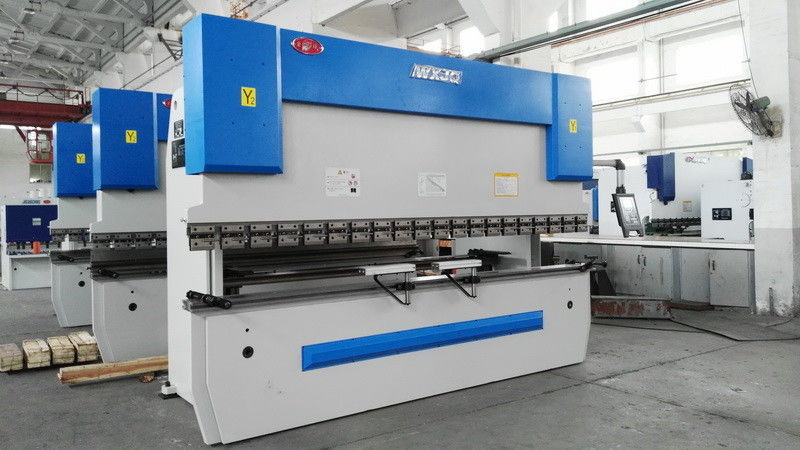

0.2'' Stainless Steel Mechanical Press Brake 125Ton Full CNC Sheet Press Brake

0.2'' Stainless Steel Mechanical Press Brake 125Ton Full CNC Sheet Press Brake

  • High Light

    mechanical press brake


    Steel Plate Bending Machine

  • Working Type
    Hydraulice Drive
  • Name
    Mechnical Forming Machine/CNC Hydraulic Press Machine
  • Axis Control
    4+1 Axis
  • Character
    Dobule Hydraulic Cylinder & Automatic Compensation
  • Working Speed
    Fast Down :90mm/s Return Speed:55m/s
  • Application
    Mass Production
  • Place of Origin
  • Brand Name
  • Certification
    CE and ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

0.2'' Stainless Steel Mechanical Press Brake 125Ton Full CNC Sheet Press Brake

0.2'' Stainless steel Mechnical bending Machine 125Ton Full CNC Sheet Press Brake


supply automatic sheet CNC hydraulic press brake machine


Mechnical sheet press brake Features

1.Totally EU streamlined design-new type CNC press brake machine,Monoblock by welding robots

& aparatus and stress relief process by Annealing treatment.
2.Hydraulic synchronised positive stop design,and by DELEM programmable controller assuring

accurate repeatability &ease of use.
3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.
4.Servo drive with da52s System operated back gauge with quality support fingers also with

vertical adjustment
5.Inch, single mode being designed for the machine and servo and maintain time can be controlled

by the server Driver.
6.the distance of upper slide moving down is adjusted by grating ruler with high precision
7.Safe fence and the electric inter locker have been designed for the machine to ensure the

operation safety.

Delem DA52S CNC Control system:
1.The compact DA-52s is a complete CNC solution for conventional as well as synchronised

press brakes.
2.The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets

as well as in an optional pendulant arm housing.
3.Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
4.The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables

quick and easy programming of a product. All common bend parameters are located on one

page. For advanced parameters an additional page can be selected.
5.Angle programming of the Y-axis, crowning function and pressure control are standard

on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

DA-52S features
1.Quick, one page programming
2.Hotkey navigation
3.7” VGA colour TFT
4.Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
5.Crowning control
6.Tool/material/product library
7.USB, peripheral interfacing
8.Advanced Y-axis control algorithms for closed loop as well as open loop valves


Hydraulic bending Machine's Parameter


No. Name Unit Parameter
1 Nominal force kN 630
2 Length of worktable mm 2500
3 Distance between housing mm   2050
4 Throat depth mm 250
5 Ram Stroke mm 200
6 Max opening height mm 482
7 Idle running mm/s   115
  Pressing mm/s 9
  Return mm/s 110
8 Internal gear pump Model IPH-3B-10-20
  Pressure MPa 30
  Flow ml/r 10
9 Main motor Model   Y132M-4, B35
  Power kW 7.5
  Speed r/min 1440
10 Backgauge motor Model SGMGH-09A
  Power kW 0.9
  Speed r/min 1500

Rated pressure of

hydraulic system





12 Overall Dimensions
  Length mm 2770
  width mm 1980
  Height mm 2480
13 Weight of machine kg 6000


CNC press brake machine Availabe Options

• CNC bending maachine 8-Axis Color Graphic Control:
Controls BOTH Bend Angle and Backgauge Position. Comes with 10” LCD touch screen.

And Graphic programming included. Graphic allows 10 bends per program/cross-section.

Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of

Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable

ram dwell and much more.
Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
• Sick Model 4000 Light Curtain System
• Pilz PSENvip LED Safety Guarding
• Third Axis (Back Gauge Height)
• High Speed Servo Back Gauge
• Training in our Memphis, TN Facility No Charge
• Training at customer site, less than 300 miles from Memphis
• Training at customer site, more than 300 miles from Memphis
(If outside continental USA, please call for quote.)



CNC folding machine Character

1. Steel welded structure, vibrating treatment to remove the inter stress, with high strength

and good rigidity
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization
3. Motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel,

numerical display
4. Using travel limit protection, full machine guarding with safety interlocker
5. Two cylinders controlling beams vertical moving
6. Using mechanical torsion synchronization
7. Using Integration hydraulic system
8. Using standard punches and dies
9. Using hanging arm control panel
10. Using foot pedal with emergency stop


Special Note


The Gooseneck Punch and multi-opening Die included are general purpose tools to be

used for training only. Precision tooling should be purchased to meet your specific needs.

The punch is segmented and it is up to the customer to calibrate these if they want to use

them for a particular purpose. There is NO warranty on these items.

Backgauge device


it drive by the servo motor and equip 3 set of fingure.
