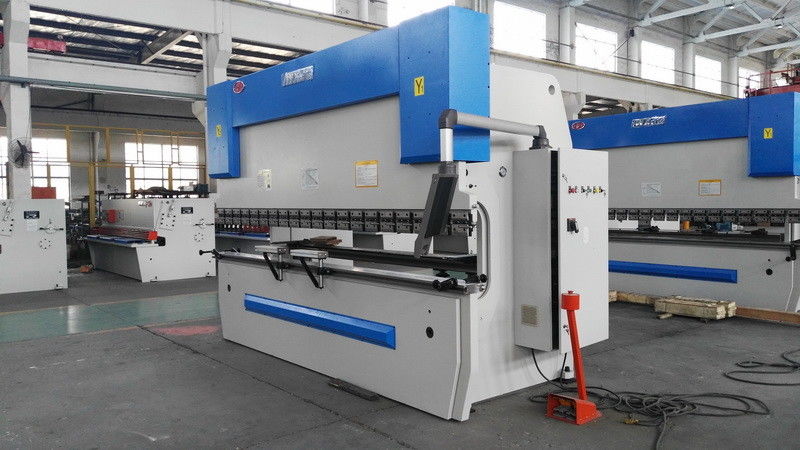

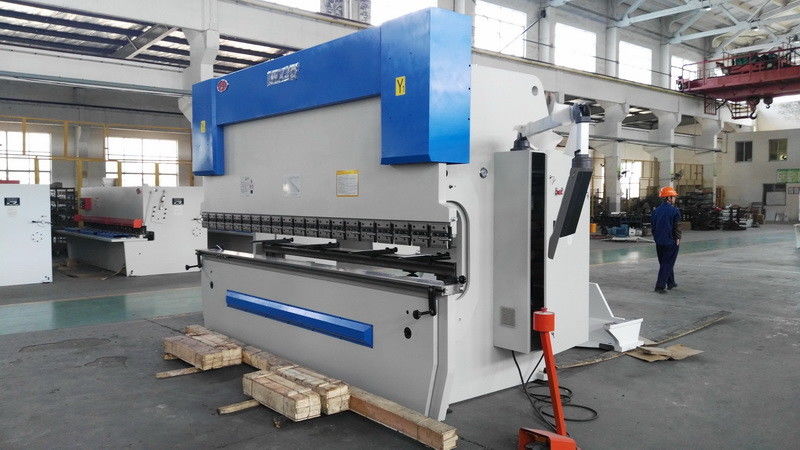

3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool

3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool
3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool

Large Image :  3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool

Product Details:

Place of Origin: China
Brand Name: WXJQ
Certification: ISO9001
Model Number: WE67K-160/4000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: iron pallet and wooden case container: ,20'OTx1 or 40'HQx1
Delivery Time: 30 days
Detailed Product Description
Controller: ESA System Name: CNC Synchro Press Brake
Worktable Length: 4000mm Long Application: Matel Cabinet
Material: Multi Vee Bootm Die Voltage: 380V,220V,415V Or Special Order
High Light:

metal sheet bender machine

,

electric sheet metal brake

3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool

we are producing the sheet metal press brake/ plate press brake/ sheet bending machine



Q345 sheet press brake machineFetures
1. Special numeric-control syetem is fitted with mainframe of the bending machine
2. Multi-work-step programming function is able to achieve an automatic operation and

continous positioning of multi-step procedures, as well as an automatic precision adjustmemt for

position of rear stopper and gliding block.
3. The machine is provided with bend counting function, for a real-time display of processing

quantity and power-failure memory of positions of stopper and gliding block, as well as procedures

and parameters.
4. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the

positioning precision of rear stopper, for processing precision of machine to be higher.
Optional CNC System
DA-52s CNC System (Made in DELEM)
DA-56 CNC System
DA-666T CNC System
WC67Y metal sheet press brake machine Functions and features
1.Whole steel plates welded structure,vibration to eliminate stress,high mechanical strength and

good rigidity;
2.Hydraulic drive,stable and reliable;
3.Mechanical block and torsion axis to keep synchronization,high precision;
4.Back gauge distance and upper slider travel are adjusted by electricity;manual fine adjustment,

digital display;
5.The upper die with deflection compensation device.And if more than 250T,the die is equipped

with lower deflection compensation device.

Standard Configuration for automatic sheet hydrauic bending machine

  • Standard two AXes control Y,X
  • Mechncial torque synchronization
  • Domestic famous hydraulic intergrated system
  • Schneider  low voltage electrical
  • Inverter control motor operation
  • Imported seals
  • Ball screw back gauge operation control
  • Standard upper and lower die
  • Front material support arms

Punching and bottom die

the material of punching and bottom die all adopt 42CrMo and have heat treatment.



3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool 0



Optional equipment for mechnical meta lsheet rpess brake
1. Control of additional axis like X1, X2, R1, R2, Z1 and Z2
2. Delem 65, 66, 69 and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system





Control system:

the bending machine can equip the DELEM system, CYBLIC system and ESTUN system. thay are suitable for customers to select.

3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool 1
CNC plate press brake machineTechnical Data

No.

Name

Data

Unit

1

Nominal pressure

200

KN

2

Length of worktable

4000

Mm

·3

Stroke of Ram

200

Mm

4

Max. Open Height

480

Mm

5

Throat Depth

320

Mm

6

Distance between Housing

3100

Mm

7

Axis controlled

Y and X



8

Back gauge’s  stroke

600

Mm

9

Overall Dimensions  (LxWxH)

4080x2050x2880

Mm



10

Downward speed

70

Mm/s

Working  speed

6

Mm/s

Returning  speed

60

Mm/s

11

Power of Motor

15

KW

12

Weight

11600

kg

13

Front support arms

2

piece

 Machine Feature

  • sheet Press brake is in complete steel-welded structure with sufficient strength and rigidity;
  • Hydraulic top-drive,steady and reliable. Mechanical stop unit,sychronous torque and
  • high prcision; Electric adjustment,manual fine adjustment and digital display for
  • backguage distance and stroke of up ram;
  • Deflection compensation unit installed on the up die in order to guarantee high precision
  • of bending.
  • T-type screw mandrel to control the movement of back guage;
  • Standard connect die and tool(with upper-tilted block compensation unit);
  • It’s very popular in metalworking market for bending metal sheets

AIN COMPONENTS
1. Main seal: Valqua CO. (Japan)
2. Main electric parts: Schneider (Germany)
3. Casting connector: Cast CO. (Italy)
4. Oil pump: Hongyuan (Shanghai)
5. Hydro-cylinder: Jiujiu (Nantong)
6. Motor: Siemens (Germany)/Xinyu (China)
7. Hydro-cylinder: Jiujiu (China)

Enclosed Accessory

  • Front arm support, 3 pieces
  • Anchor bolt, 4 pieces
  • Nut, some pieces
  • Washer, some pieces
  • Oil gun, 1 piece
  • Foot pedal 1 piece

Upper Punching And Bottom Die

  • Standard upper punching, it can section to 500mm length or customized.
  • The edge of the punching is HCR 45-50 after heat treatment
  • use the fast clamping with crowned defection to hold the punching.
  • Multi Vee bottom die to bending different thickness sheet.
  • The bottom die is HB190-260 after heat treatment.

download brochure here

hydraulic press brake.pdf


General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing

the Southeast Asia market, South America, European market and Africa market. Please be aware that our production

lead times depend on specific items and item quantities.
3100mm Long Metal Sheet Bender Machine bending Door Frame CNC Press Brake tool 2
