Steeel Panel / Box Angle Forming CNC Corner Former Machine Bending 90 Degree Angle

Steeel Panel / Box Angle Forming CNC Corner Former Machine Bending 90 Degree Angle

  • High Light

    section bending machine


    sheet metal folding machine

  • Name
    Corner Forming Machine
  • Automation
  • Application
    Door,switch Board,cober, Case,
  • Material
    Mild Steel, Aluminum And Stainless Steel
  • Character
    NO Welding, NO Grinding, NO Finishing
  • Advantage
    The Corner Is Smooth, Good Look And Good Rigidity
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    iron pallet
  • Delivery Time
  • Payment Terms
    L/C, T/T

Steeel Panel / Box Angle Forming CNC Corner Former Machine Bending 90 Degree Angle

Panel And Box Angle Forming CNC Corner Former Machine Bending 90 Degree Angle


corner froming machine/ sharpening angle forming


Performance of corner forming machine:

The CNC corner molding machine improves more than three times. So enterprises do not have

to worry about recruitment. The whole machine power is 3.5KW when the hydraulic system works,

but the welder power is 16.2KW, saving nearly 4.6 times. Save wire, carbon dioxide (or argon),

grinding, protective equipment using costs. 300 days in accordance with the year and daily work

six hours, a workers can produce 108, 000 workpieces by using the machine model, but two

traditional craft Branch can produce 36, 000 workpieces. You can get more than 3 times profit

directly if you use the machine model, saving engineering 40, 000 RMB, saving electricity

34, 000 RMB and saving materials costs 36, 000 RMB (according to more than one consumption per).

Less than a year the savings are enough to pay for another corner molding machine.

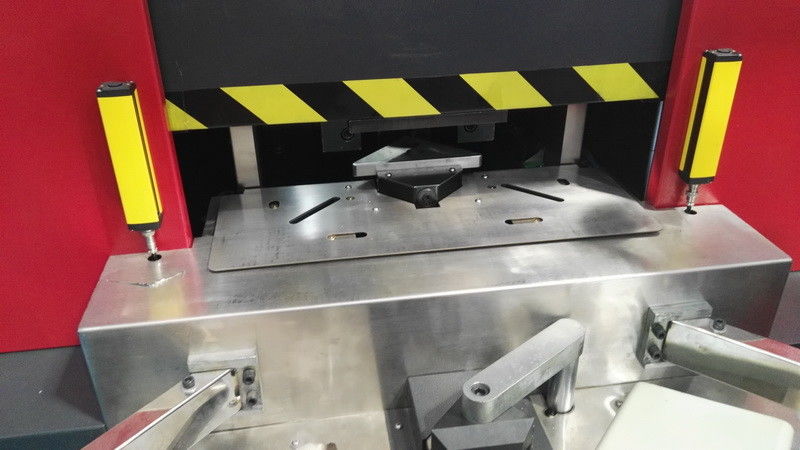

Steeel Panel / Box Angle Forming CNC Corner Former Machine Bending 90 Degree Angle 0

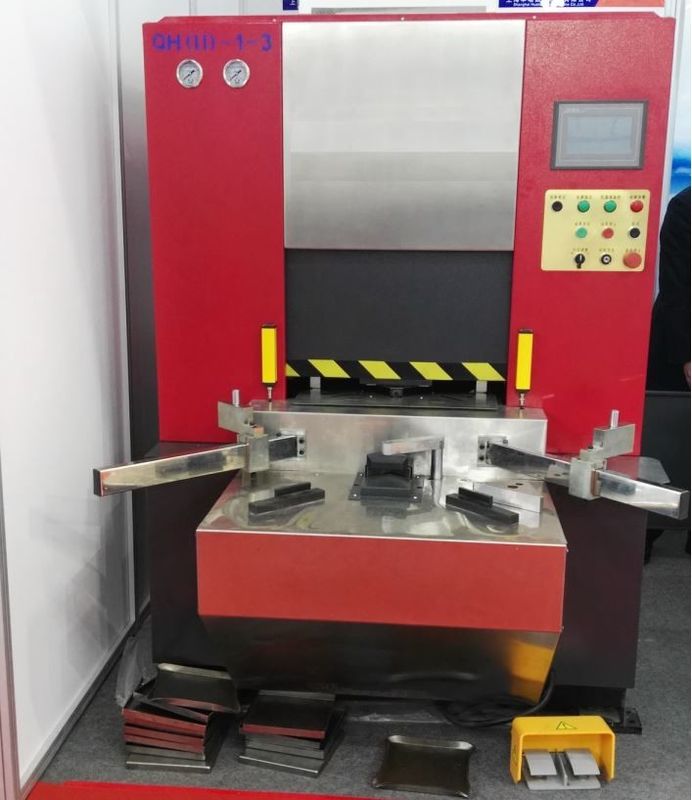

Steeel Panel / Box Angle Forming CNC Corner Former Machine Bending 90 Degree Angle 1


Features of meta lcorner forming machine:

Usually for processing door corner, should cut off four corners of the sheet first, bend four

edges, welding the corners and grinding them then, the work wastes time, hard to dio and

pollute environment. our cover forming machine molds and different thickness and different

size door corner can be made.

cutt off corner of sheet metal is o longer needed. just pre-bending the sheet and put it into

corner froming machine then the corner can be made. thew corner and sheet are in solid

body and welding and polishing process is no longer needed. any size of door corner can

be made. the corner is smooth, good look and good rigidity.



Parameter items Technical parameters
model JCX-BH-135
Processing Range

thickness of

latten (mm)

Aluminium plate 1.2~3.0
Cold-rolled plate 0.8~3.0
Stainless steel plate 0.8~2.0
dimensions of workpiece (mm) Min. 140×140, Max. no limited
Flange height (mm) Less than 10 to 15 times the plate thickness(Determined by the material and plate thickness);
Max. 30
Corner radius(outside), mm R4, R5, R6; Standard mould
moulding angle Standard mould, 90°
special mould, 80°, 100°(optional)
time lasting for changing mould rolling mould < 2 sec.
square mould < 3 sec.
shear knife < 3 sec.
clearance between rolling mould and square mould < 20 sec.
process time for one plate < 60 sec.(Moulding and cutting four corners)
moulding one angle 10sec.(including auxiliary time)
Total power 4KW
Power supply 3~380VAC+PE 50Hz
Dimensions (mm) 1560×1330×1600


Character of stainless steel sheet corner formign machine:


the corner is made by rolling and shearing in the machine, no welding process is needed.

standard round corner radius are 4,6,8mm. special corners is also available by special mold

the froming process is easy to do. keep good coating of sheet and get good look corner.

for common material, forming height can be 10-15 times of sheet thickness. for easy tensile

matesial, forming height can be 15-20 times of sheet thickness.

many kinds of metal sheet corner can be processed. suitable for making door of electrical box,

switch boards  cover,roaster door,case cover,dish tray etc.


Warranty and service:
one year warranty for whole press machine.
all spare parts are available as we produce most of the parts in our factory.

it is easy to get the electric parts as all are international famous brands.
we can provide technical support via email, phone or video.
we can send out engineers for service, installation or training with reasonable additional cost.
English operation and maintenance manual is provided with the press.
All safety warning tags and control panels are in English.


1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid, the balance 70% T/T prepaid before shipment)
