6m long Electromechanical Bending Mahine/ CNC Hydraulic Press Brake Supplying

6m long Electromechanical Bending Mahine/ CNC Hydraulic Press Brake Supplying

  • High Light

    mechanical press brake


    Steel Plate Bending Machine

  • Name
    CNC Hydraulic Bending Machine
  • Application
    Electric Pole
  • Working Pressure
  • Throat Depth
  • Working Speed
  • Deflection Compensation
    Mechnical Crowning Compensation
  • Place of Origin
  • Brand Name
  • Certification
    CE and ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

6m long Electromechanical Bending Mahine/ CNC Hydraulic Press Brake Supplying

6m long Electromechanical Bending Mahine/ CNC Hydraulic Press Brake Supplying



provide the maintenance for CNC hydraulic press brake machine,steel press brake and plate bending machine

CNC plate press brake machine Charateristic:


1. plate bending machine adopt overall welded and processed structure

2. closed loop control mode composed by electric-hydraulic servo valve and

measure ruler

3. ensure the highest control position, bending accuracy and repositioning

accuracy are also reach to the highest level

4.back gauge mechanism can be multi-axes controlled

5. intergrated hydraulic system decreases the pipe connections, oil leakage,

and increases the stability and overall beautifies.

6. worktable equipped with hydraulic and mechanical compensation to avoid

the deformed upper beam from affecting the quality of the work piece, it is

adjusted automatically by the CNC controller with convenient accuracy.

7. CNC controller normally uses Holland Delem, Italy ESA,Swiss Cybelec,

all with multi-languages.


NC bending Machine Parameter:


1 Type CNC electro-hydraulic synchro press brake
2 Working force 500 T
3 Length of table 6000 mm
4 distance between frames 4800 mm
5 Throat depth 600 mm
6 Open height 760 mm
7 Stroke 320mm
8 Strokes 2 /min-1
9 Main motor 45kw
10 CNC system

Type: DA-56 Delem Co., Netherlands

Control 3 Axis: Y1,Y2,X

11 Tool With 1 punching and 1 bottom die
  Main Electric Elements Schneider
12 Seal in the cylinders NOK, Japan
13 Gross weight 50000 kg
14 Overall sizes(mm) LxWxH 6150x3280x5300
15 Packing:

With plastic cover

the machine should be disassembled for transport . it need three person and 15 days to install and testing.

container:1x40’ OT, 2x40’ GP,

17 Service The engineerr will go to customer’s factory to install the machine.
18 Delivery date 25 days




























Packing And Shipping for CNC press brake machine:


1. Before packing, the machine tool will be testing for 48 hours to ensure

all the equipment is 100% qualitied.

2. Before loading, stable package, professional and skilled loader reduce

damage of product during transport


 Machine Configuration:


1.  CE Conformity including AKAS Light guards

2.  Beam Synchronization via linear scales and proportional valves

3.  Delem Angle Programming Control

4.  Y1 + Y2 + X axis as standard, auto indexing of axis at start-up

5.  uropean (System) Top and Bottom Tool Clamping

6.  Hardened Gooseneck Top Tool and 4-V-die Bottom Tool

7.  Servo motor driven back gauge on ball screws (=X-axis)

8.  Crowning Table / Top clamping with anti deflection wedges

8.  Side and rear safety guards and safety interlock switches



  • sectional tooling with different length may store forming a certian length to bend
  • the closed frame wokpiece.
  • Automatic crowned deflection compensation
  • automatic front feedning device and rear pushing device
  • two-hand control device
  • light curtain protection or laser protection
  • any tailor made are available on ewqueste.

Shipping Documents:


1. Operation Manual(hydraulic diagram,electro diagram)

2. Foundation plans

3. Quality Certification

4. Packing list

5. Colors: According to Customer's requirements



After Sales Service:


1. Our guarantee time is 5 years from B/L date.  If any component is damaged

during guarantee time, we can send the component to the customer

by DHL, TNT freely.

2. Our factory can send our engineer to the customer’s factory install,

commission and training freely. The customer provide the double trip tickets,

food and accommodation for our engineer.

The customer also can send the engineer to our factory to learn the operation

and maintains freely.

3. Our factory provide the service for the customer forever, if the customer need

operation help, can contact us by MSN, Skype, Email and Telephone at any time,

we provide 24 hours on-line service.


Download brochure here:

CNC hydraulic press brake machine.pdf

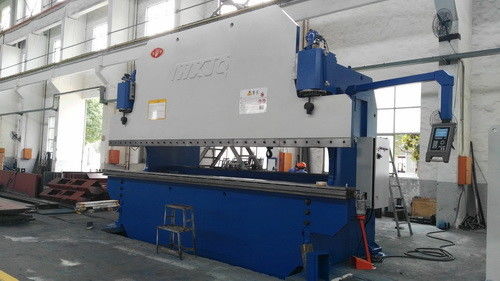

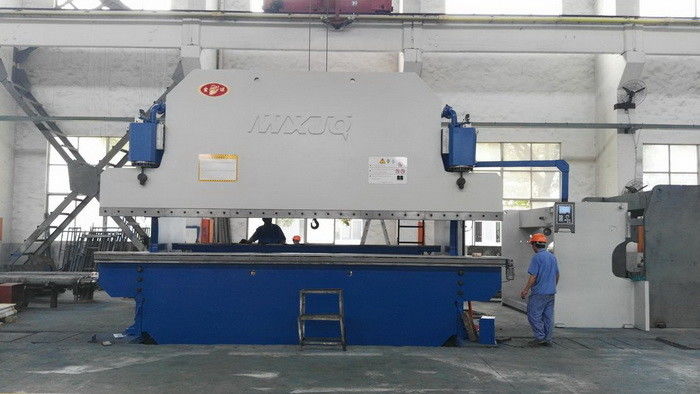

Machine picture:


6m long Electromechanical Bending Mahine/ CNC Hydraulic Press Brake Supplying 0
