1300T Tandem Press Brake 4M CNCTandem Press Brake Machine With Forming Die Tool​

1300T Press Machine, 14M CNCTandem Press Brake Machine With Forming Die Tool​



hot sell CNC HydraulicTandem Press Brake Machine/ Hydraulic bening machine/press machine



CNC tandem sheet metal bending Machine Character

servo electric press brake 130ton design to Steel welded structure, vibrating treatment to remove the

inter stressTwo cylinders controlling beam’s vertical moving

Mechanical torsion synchronization

Integration hydraulic system

Motorized back gauge with digital show

T style screw controlling back gauge

Mechanical crowning device

Standard punch and die

Foot pedal with emergency stop button



mnaul press brake machine Operating Character:



1. During working, this CNC tandem press brake machine has three types speed,

2. when the beam move from the top dead center, the speed is fast

3. when the beam touch the bottom dead center, the speed changed,

and it’s going to be the bending speed

4. when finish the bending, the beam return to the top dead center fast.

5. the back gage autotmatic move to the setting positiong by the system

6. the mechnical crowned compensation automatically compensate through

the computer calculating.



Mechnical Press Brake Machine Parameter:



Model	2-WE67K-200/3200	2-WE67K-320/6000
Nominal pressure	2000KN	3200KN
Length of table	3200mmx2	6000x2
Distance between housing	2650mm	4800mm
Throat depth	320mm	720mm
Stroke of ram	200mm	250mm
Idle speed of ram	80mm/s	70mm/s
Working speed of ram	8mm/s	7.5mm/s
Return speed of ram	80mm/s	75mm/s
Open height	480mm	830mm
Main motor	15KW x2	22KW x2
Volume of oil tank	560Lx2	1400L x2
Overall size	3450X2140X2960mm	6150x4575x5070
Weight	1030kgx2	35500kgx2



press brake equiment use the 42CrMo material to make the up pucnhing head and bottom die:





40 feet CNC press brake Description:

the machine equipped with controller with automatic test and sel-diagnosis,

programminga product simply consiste of introducing the characteristics of the

sheet to be bent.themachine consists of two horizontal intergral welding frames

and intermediate two connecting beams.

the foure cylinder are arranged on the wallboard, and rigid connected with block.

the worktable is composed of four U adjustable wedge block, which connected with

four wall boeards the whole ram, worktable and assembled frame consist of one load

uniformlydistributedhigh precision requirements of the foure cylinder synchronous

CNC bendingmachine.the double linkage consistes of two single machine tools and

linkage block by CNC,which can be single or double operation.

the fram has the characteristic of good rigidity, high processing precision,good

manufacturability,

convenient installation and transportation.

ram and worktable are reasonable and uniform load to suit thebedning quality.



Accessories of heavy CNC press brake machine:



No.	Item	Specification	Qty.
1	Instruction Manual	include hydraulic& electrical system	1
2	Inspection Certificate		1
3	Packing List		1
4	Main Machine	WC67K-200/4000	1
5	Foundation Bolt	M36×700(including nut and washer)	4
6	Wearing parts	Refer to wearing parts list	1
7	Key of electrical box		2
8	Key of power switch		2
9	Operation stand		1
10	Key of selector switch		2
11	control system manual		1



Warranty of press brake manufacturers:



1. Our guarantee time is 13 months from shipment date.  If any component is damaged during

guarantee time, we can send the component to the customer by DHL, TNT freely.

 2. Our factory can send our engineer to the customer’s factory install, commission and training

freely. The customer provide the double trip tickets, food and accommodation for our engineer.

The customer can send the engineer to our factory to learn the operation and maintains freely.

 3. Our factory provide the service for the customer forever,if the customer need operation help,

can contact us by MSN, Skype, Email and Telephone at any time,we provide 24 hours on-line

service.



Warning from press brake shear factory:
1.4 Should often check all connecting bolts and pipe joints to ensure they are tightened before operation.
1.5 The machine must be grounded reliably.
1.6 Never make the machine running under bending force exceeding nominal force avoid the

damage of the machine in any conditios anytime.
1.7 Never put your hands or any parts of your body into the die area anytime, and never adjust

any part behind the ram across die area from the front of the machine.
1.8 Keep your body away from the work piece to avoid injury caused by the workpiece bending

when the machine is running.
1.9 The ram must stay at bottom dead center when the machine stop working



the catalog of CNC hydraulic tandem press brake machine to reference

CNC multi machine tandem hydraulic press brake.pdf

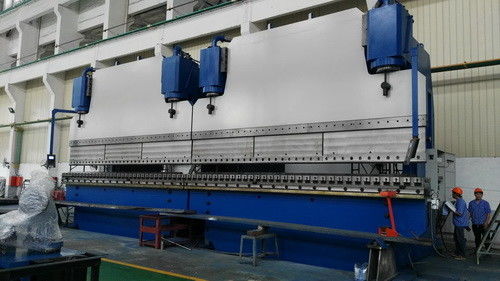

 Machine photo:
