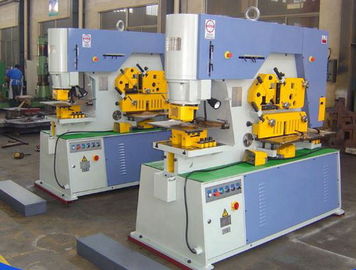

Multi Function Hydraulic Ironworker 900KN Cuttign Angle Steel
Multi Function Hydraulic Ironworker 900KN Cuttign Angle Steel
Description:
Q35Y Series of hydraulic combined punching and shearing machine
I, Machine's main application and performance feature
Q35Y series of hydraulic combined punching and shearing machine are widely used
by manufacture and construction companies in steel processing, punching blocks, vehicles,
iron tower coil holder, telecommunication signal frame, ships and bridges construction,
and so on. Equipped with numerical control system, they can improve production efficiency
and precision. This kind of machine is simple to operate, and as its hydraulic system,
electrical system come from famous domestic and foreign brand, the performance
is stable and secure.
Parameter:
| Model | Q35Y-16 | Q35Y-20 | |
| Working pressure(KN) | 600 | 900 | |
| Max. cutting thickness(mm) | 16 | 20 | |
| Max. cutting length(mm) | 400 | 480 | |
| Tensile strength of sheet metal (N/mm²) | ≤450 | ≤450 | |
| Shear angle(deg) | 7 | 8 | |
| Stroke of ram(mm) | 80 | 80 | |
| (stroke times)(min) | 8 | 8 | |
| Depth of throat(mm) | 300 | 355 | |
| Max .Capacities(mm) | 25×16 | 30×20 | |
| Main motor(KW) | 4 | 5.5 | |
| Length of machine tool(mm) | 1650 | 1950 | |
| Width of machine tool(mm) | 800 | 900 | |
| Height of machine tool(mm) | 1780 | 1930 | |
| Weight of machine tool(kg) | 1900 | 2600 | |
| Max. Capacities | 25×16 | 30×20 | |
| Max. Stroke Length | 80 | 80 | |
| Throat Depth Standard | 305 | 355 | |
| Working Height | 1030 | 1084 | |
| SHEARING | |||
| Flat Bar | 250×16 | 330×20 | |
| Alternative | 400×8 | 480×10 | |
| Blade Length | 410 | 485 | |
| Working Height | 890 | 894 | |
| ANGEL CUTTING | |||
| At 90°cut | 125x125×12 | 140x140×12 | |
| At 45°Mitre | 70×10 | 70×10 | |
| Working Height | 1130 | 1139 | |
| SECTION CUTTING | |||
| Round / Square Bar | 45 | 50 | |
| Channel / I bar | 130×65 | 160×88 | |
| T bar | 90×12 | 90×12 | |
| NOTCHING | |||
| Material Thickness | 10 | 13 | |
| Width | 57 | 57 | |
| Depth: Vee -Rect. | 60-90 | 60-90 | |
| Working Height | 890 | 883 | |
Performance:
Robust and accurate steel frame
Large punch table with scales
Removable bolster for punching flanges and channel and beam
2 independent hydraulic cylinders
2 shielded foot controls ironworker
2 Separate Die Openings for oversized punching
5 working stations for wide applications
Power inching on all 5 work stations cutting machine
Plate shear support/table and notching table
Adjustable stroke controls with indicators on both cylinders
Iron worker punching machine: Movable work light
Iron worker Overload protection on hydraulic system
Electric backgauge punching machine
Optional bending attachment cutting machine
Optional 5 sets punches and dies
Main Standard Components Of Ironworker:
All the electrical parts are with CE certificate.
Professionally engineered design frame structures.
Steel welds with high precision strength and rigidity to eliminate vibrations.
Steel frame Q235 = American standard steel A306 GR55.
Five sets of tools, including punching and blades were installed on the machine.
Timer relay by Japanese OMRON.
All wiring terminal block by WEIDMULLER.
Main Electrical component by France Schneider.
Oil seals by Japanese, NOK.
O-Ring and Valve by Taiwan for piston pump more durable.
Hydraulic System by Japanese Yuken.
Double independent hydraulic cylinders
Double Foot pedal controlled work separately
Indicator on both hydraulic cylinders
Large notching table with Ruler guide
Large flat shearing table with Ruler guide
Large punching table with ruler guide
Easy Adjustable stroke control with ruler
Electric back gauge with auto stop
Movable working light for placing at any desired position
Hydraulic system with overload protection system
Emergency safety stop switch
Most important with easy maintenance
Accessories:
1. a pair of round hole punching die
2. a set of angle steel blade
3. a set of square and round bar blade
4. a set of shearing plate blade
5. a set of notching blade
The above punching and moulds will be installed in the machine.
For other dies and blades, customers need to order and pay additionally.
Package: Wooden Case or iron pallet with plastic cover
Deliver time: 10 days after getting deposit.
