High Performance Hydraulic Ironworker Machine 25mm Thickness Steel
Introduction:
The Compact 45 and the Compact 60 are universal and compact hydraulic steel workers
with 5 workstations and are developed for production purposes with maximum efficiency.
The Compact machines are designed and manufactured using the long experience in the
field of sales and manufacture of hydraulic steelworkers. The hydraulic circuit is activated
by a shielded foot-pedal - the low power inch mode on each workstation enables the correct
work piece-positioning and tool-alignment. Limit-switches allow accurate adjustment of the
stroke length for maximum efficiency. Stroke with automatic return. On the
angle-cutting station,angle iron can be cut on every angle from 45° up to 90°, both
internal and external, without any adaptations to the machine. Flanges from larger
angle-iron can be cut with the shear. Moreover,
the machines are equipped with centralised pressure lubrication - being one feature of
the low maintenance requirements. The universal steelworkers are delivered with an
extensive range of standard equipment, such as large heavy-duty tables on the punch-,
shear-, and notching station. Easy adjustable hold downs to enable production in a safe
and accurate way are
fitted on every station. Free standing on suitable floor, they just need electrical connection
to be ready to work
Technical parameter:
| Iron worker Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| pressure(T) | 55 | 75 | 110 | 140 |
| Max. cutting thickness(mm) | 16 | 20 | 25 | 30 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle(Degree) | 7° | 8° | 8° | 8° |
| Shearing size of one stroke(mm) | 16*250 8*400 |
20*330 10*480 |
25*330 16*600 |
30*355 20*600 |
| Ram stroke(mm) | 80 | 80 | 80 | 80 |
| Number of strokes(mm) | 8 | 8 | 6 | 6 |
| Throat depth(mm) | 300 | 355 | 400 | 600 |
| Punching thickness(mm) | 16 | 20 | 25 | 26 |
| Max. punching diameter(mm) | 25 | 30 | 35 | 38 |
| Power of motor(KW) | 4 | 5.5 | 7.5 | 11 |
| Overall dimensions(mm) | 1640*730*1770 | 1640*800*1900 | 2355*960*2090 | 2680*1040*2300 |
| weight(KG) | 1600 | 2000 | 4800 | 6800 |
| Sort of steel | Round bar | Square bar | Equal angle | Ｔ-bar | joist | ||
| 90°shearing | 45°shearing | 90°shearing | 45°shearing | ||||
| Q35Y-16 | 45 | 40*40 | 125*125*12 | 70*70*8 | 120*120*12 | 60*60*8 | 126*74*5 |
| Q35Y-20 | 50 | 50*50 | 140*140*12 | 70*70*10 | 140*140*12 | 70*70*10 | 160*86*6 |
| Q35Y-25 | 60 | 50*50 | 160*160*14 | 80*80*7 | 160*160*14 | 80*80*10 | 200*102*9 |
| Q35Y-30 | 65 | 55*55 | 180*180*16 | 80*80*10 | 180*180*16 | 80*80*10 | 280*124*10.5 |
| Q35-16 | 45 | 40*40 | 125*125*12 | 100*100*10 | 125*125*12 | 100*100*10 | 180*94*6.5 |
| QA34-25 | 65 | 55*55 | 150*150*18 | 110*110*14 | 150*150*18 | 110*110*14 | 300*126*9 |
Features:
Universal bolster for punching fl at bar, angle iron and the fl ange of channel and/or beam.
Punching up to 38 mm in the standard execution.
Optional large hole attachment for punching up to 110 mm diameter available (up to 57 mm for
Compact 40).
Heavy-duty support table on the punch & the shear station (Compact 40) and the notch station
(Compact 45 & Compact 60) fi tted as standard - all with the same working height.
Low power inch mode and adjustable stroke on every station
Unique 'Z' (on Compact 45 & Compact 60 only) - aperture enables the cutting of angle iron in
every angle, varying from 45° up to 90°, both internal and external (both flanges). Cutting
flanges from large-sized angle-iron can be mitre cut with the shear (see capacities).
Extensive range of applications - tube notching, bending, bar-end cropping, special shape
punching...
Extensive range of applications - tube notching, bending, bar-end cropping, special shape
Rectangular and triangular notching applications. The notching station can be transformed
into a secondary punching station (Compact 45 & Compact 60).
Extended safety features as standard equipment.
Centralised pressure lubrication (on the Compact 45 & Compact 60).
High quality interchangeable bearings, seals and valves with well-known brand names,
available from stockists.
Machines with low maintenance requirements.
Single-phase execution available.
Possibility to use tooling from other brand names.
Low maintenance
On the cutting station, angle iron can be cut on every angle from 45º up to 90º, both
internal and external, without any adaptations to the machine.
Flanges from larger angle-iron can be mitre cut with the shear. Moreover, the machines
are equipped with centralised pressure lubrication - being one feature of the low
maintenance requirements.
Extensive range of standard machine
The universal steelworkers are delivered with an extensive range of standard device,
such as large heavy-duty tables on the punch-, shear-, and notching station. Easy
adjustable holddowns to enable production in a safe and accurate way are fitted on
every station. Free standing on suitable floor, they just need electrical connection to
be ready to work.
Performance:
Robust and accurate steel frame
Large punch table with scales
Removable bolster for punching flanges and channel and beam
2 independent hydraulic cylinders
2 shielded foot controls ironworker
2 Separate Die Openings for oversized punching
5 working stations for wide applications
Power inching on all 5 work stations cutting machine
Plate shear support/table and notching table
Adjustable stroke controls with indicators on both cylinders
Iron worker punching machine: Movable work light
Iron worker Overload protection on hydraulic system
Electric backgauge punching machine
Optional bending attachment cutting machine
Optional 5 sets punches and dies
Downlaod brochure here:
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039

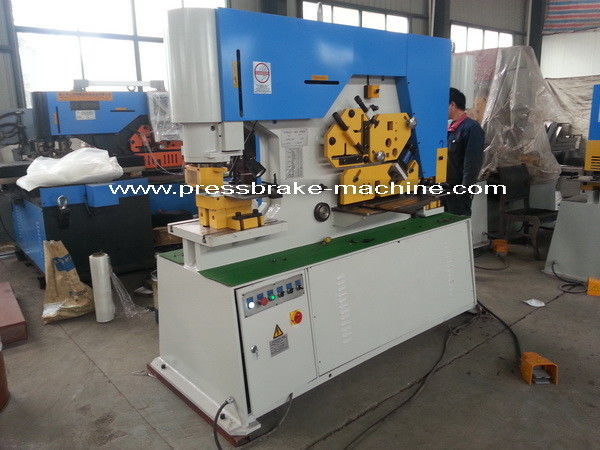

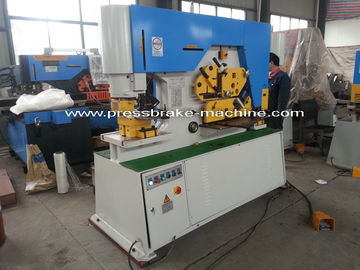

Machine photo:
