ironworker equipment
,ironworker machinery
-
NameCombined Cutting& Punching Machine
-
FeatureLowe Noise, Processing Different Profile Steel
-
FunctionSection Cutting, Notching And Punching
-
MaterailTensile Strength 450Mpa
-
Hydraulic Oil46# Hydralic Oil
-
Lead Time20days
-
Place of Originwuxi
-
Brand Namewxjq
-
CertificationISO9001
-
Model NumberQ35Y-25A
-
Minimum Order Quantity1 set
-
Packaging Detailsiron pallet with plastic cover
-
Delivery Time15 days
-
Payment TermsT/T and L/C at sight
-
Supply Ability1 0sets every month

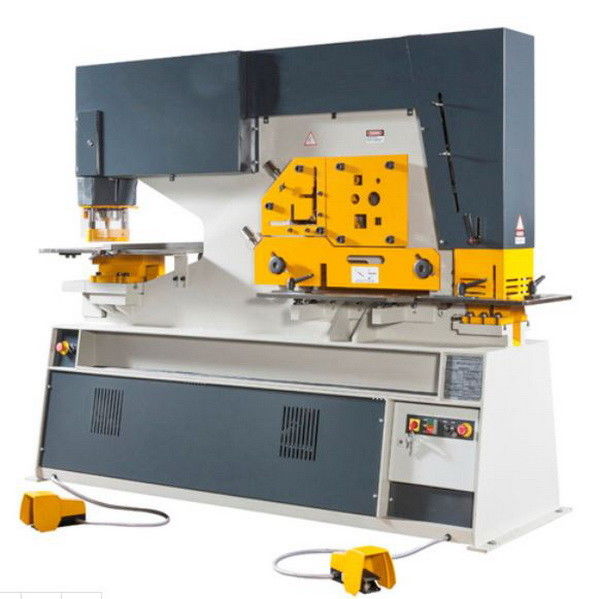

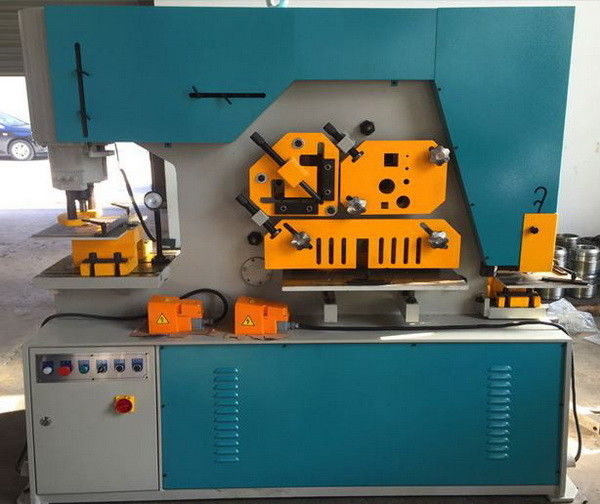

Duoble Cylinder Q35 Series Hydraulic Ironworker 90T Cut Round Bar
Duoble Cylinder Q35 Series Hydraulic Ironworker 90T Cut Round Bar
Information:
hydraulic ironworker can be used for punching, shearing, notching, bending and other
metal fabrication functions. SHI Group's tooling department can design any special tool
you need for your metal fabricating needs.
The SHI Ironworker is the most used and most versatile machine a person can have in
their manufacturing or fabrication shop, maintenance department or vocational school.
Ironworkers save time, increase productivity, eliminate waste and create clean smooth
cuts and holes. SHI Group Limited offers a complete line of high quality hydraulic ironworkers
from 40 to 200 tons in three distinctive styles.
Performance:
1. Double cylinders hydraulic punch & shear machine
2. Five independent stations for punch, shear, notcher, section cut
3. Large punch table with multi-purpose bolster
4. Removable table block for overhang channel / joist flange punching applications
5. Universal die bolster, easy change punch holder fitted, punch adapters supplied
6. Angle, round & square solid mono block crop station
7. Rear notching station, Low power inching and adjustable stroke at punch station
8. Centralized pressure lubrication system
9. Electric panel with overload protection elements and ingetrated controls
10. Safety movable foot pedal
Shearing And Notching Stations:
1. One set of round hole die
2. One set of steel plate shearing blade
3. One set of angle shearing blade
4. One set of channel shearing blade
5. One set of notching blade
The above moulds will be installed in the machine, safety guards are also fitted as standard
on all working stations. For other dies and blades, customers need to order and pay additionally.
Technical Parameters:
| Model | Q35Y-20 |
| Punching Pressure (T) | 90 |
| Max. cutting thickness of sheet plates (mm) | 20 |
| Material strength (N/mm²) | ≤450 |
| Angle of Shear (°) | 8° |
| Flat bar shearing (T*W)(mm) | 20*330 10*480 |
| Max. length of cylinder stroke (mm) | 80 |
| Trips frequency (times/min) | 12-20 |
| Depth of throat (mm) | 355 |
| Max. punching diameter (mm) | 30 |
| Motor power (KW) | 7.5 |
| Overall dimensions (L*W*H)(mm) | 1950*900*1950 |
| Weight(kg) | 2400 |
Types of profiled steel for shearing (If you want Joist or Channel, need special order)
| Steel category | Round Bar |
Square Bar | Equal Angle | T Bar | I-iron | Channel steel |
|||
| 90° Shearing | 45° Shearing | 90° Shearing | 45° Shearing | ||||||
| Section view | |||||||||
| Q35Y-20 | 50 | 50*50 | 140*140*12 | 70*70*10 | 140*70*12 | 70*70*10 | 200*102*9 | 160*60*6.5 | |
After-Sale Service:
1. Two year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are
damaged within the two year warranty. If the parts are not damaged by misoperation,
we will reply to customers within 48 hours and provide free parts for replacement. Besides,
for the parts out of commission and beyond the warranty, we only charge for the basic
costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy
with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual
satisfaction.
Dwonload brochure here:
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039
Our products are sold all over the world, you can rest assured.
