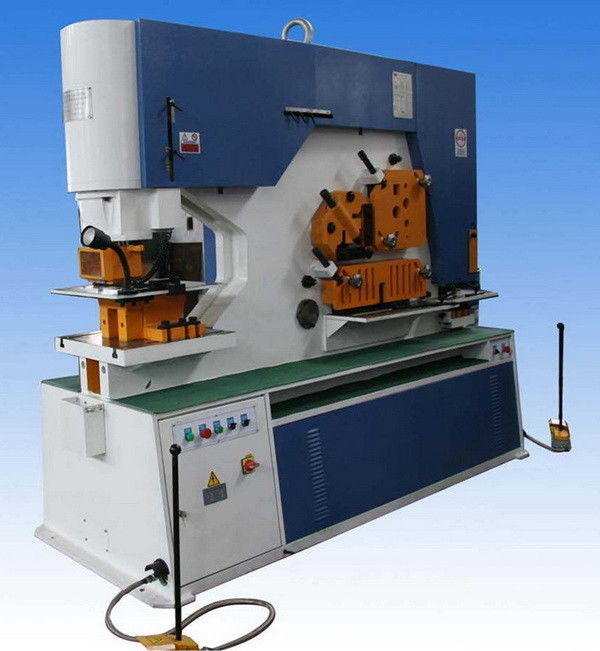

Semi Automatic Metal Iron Worker Q235 Steel Material Lifetime Service

Semi Automatic Metal Iron Worker Q235 Steel Material Lifetime Service

  • Highlight

    ironworker equipment

    ,

    ironworker machinery

  • Name
    Iron Worker Machine
  • Quality
    Alomost 30 Years Manufacturing Experiences
  • Automatic
    Semi-automatic
  • Model
    Q35y Series
  • Servce
    Lifetime Service
  • Lead Special Order Item
    Joist Ans Channel Moulds
  • Place of Origin
    wuxi
  • Brand Name
    wxjq
  • Certification
    ISO9001
  • Model Number
    Q35Y-30H
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet with plastic cover
  • Delivery Time
    15 days
  • Payment Terms
    T/T and L/C at sight
  • Supply Ability
    1 0sets every month

Semi Automatic Metal Iron Worker Q235 Steel Material Lifetime Service

Semi Automatic Metal Iron Worker Q235 Steel Material Lifetime Service



Indroduction:

the  hydraulic combined punching& shearing machine adopt hydraulic driving system

and they are the latest workes in our country,various metal plate,square bar,round bar,

angle steel, channel and joist can be cut ,puched andnotched on the machine. it is also

equipped with a stop device for cutting



Function:
1. Punching
Full range of universal punches and dies are available.unique style allows for large angle

iron punching and large channel punching. Large viewing window on stripper swing away

design for ease of operation. large two piece gauging table with rulers and stop as standard

fittings. Quick change coupling nut and sleeve for rapid replacement of change.

Semi Automatic Metal Iron Worker Q235 Steel Material Lifetime Service 0






2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold

down device for round/square bar,
channel/beam cutting. Large strong guarding for max safety. The angle shear has the

ability to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds.

Diamond shaped blade for quality cuts that is minimal
material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.

large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.
Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.

Semi Automatic Metal Iron Worker Q235 Steel Material Lifetime Service 1
3 . Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and

three gauging stops for precise positioning. The notching section of this hydraulic ironworker

is perfect for notching out metal plate,
angle iron and much more. The notching station also has an oversized table with material stops.

This section of the machine can also be outfitted with the optional vee notcher.

Semi Automatic Metal Iron Worker Q235 Steel Material Lifetime Service 2


4. Bending
Also bend the plate below 500mm. All the components of Machine are of the highest quality i

n their safty, function, capability and maintenance




Performance:



1. Double cylinders hydraulic punch & shear machine
2. Five independent stations for punch, shear, notcher, section cut
3. Large punch table with multi-purpose bolster
4. Removable table block for overhang channel / joist flange punching applications
5. Universal die bolster, easy change punch holder fitted, punch adapters supplied
6. Angle, round & square solid mono block crop station
7. Rear notching station, Low power inching and adjustable stroke at punch station
8. Centralized pressure lubrication system
9. Electric panel with overload protection elements and ingetrated controls
10. Safety movable foot pedal




Technical Parameters:



Model Q35Y-30
Punching Pressure (T) 160
Max. cutting thickness of sheet plates (mm) 30
Material strength (N/mm²) ≤450
Angle of Shear (°)
Flat bar shearing (T*W)(mm) 30*355 20*700
Max. length of cylinder stroke (mm) 80
Trips frequency (times/min) 6
Depth of throat (mm) 600
Max. punching diameter (mm) 38
Motor power (KW) 11
Overall dimensions (L*W*H)(mm) 2680*1040*2300
Weight(kg) 6800

Types of profiled steel for shearing (If you want Joist or Channel, need special order)

Steel category Round
Bar
Square Bar Equal Angle T Bar I-iron Channel
steel
90° Shearing 45° Shearing 90° Shearing 45° Shearing
Section view
Q35Y-30 65 55*55 180*180*16 60*60*60 180*80*16 80*80*10 280*124*10.5 280*86*11.5






After-Sale Service:


1. Two year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are

damaged within the two year warranty. If the parts are not damaged by misoperation,

we will reply to customers within 48 hours and provide free parts for replacement. Besides,

for the parts out of commission and beyond the warranty, we only charge for the basic

costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy

with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual

satisfaction.



Downlaod brochure here:

ironworker.pdf
