Q35Y Swing Beam Hydraulic Ironworker For Metal Shearing / Punching

Q35Y Swing Beam Hydraulic Ironworker For Metal Shearing / Punching

  • High Light

    ironworker equipment


    ironworker machinery

  • Name
    Plate Notching Machine
  • Power Source
  • Warranty
    One Year
  • Materail
    Q235 Steel
  • Balde Material
  • Service
    Spare Parts Provided
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet with plastic cover
  • Delivery Time
    15 days
  • Payment Terms
    T/T and L/C at sight
  • Supply Ability
    1 0sets every month

Q35Y Swing Beam Hydraulic Ironworker For Metal Shearing / Punching

Q35Y Swing Beam Hydraulic Ironworker For Metal Shearing / Punching

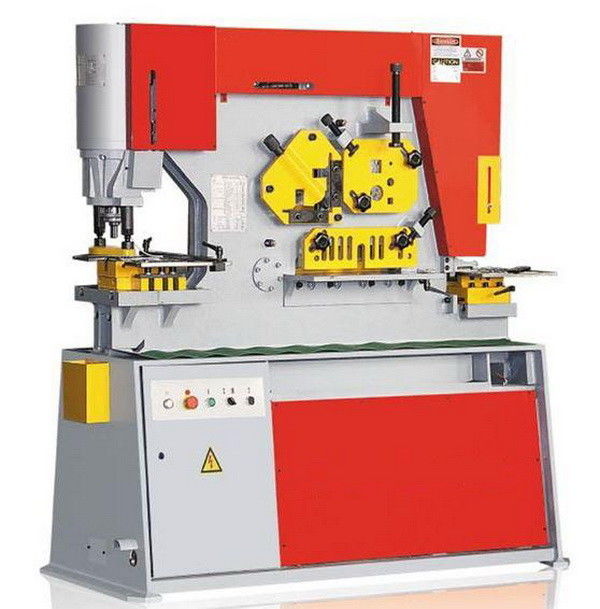

Hydra Hydraulic Iron Worker, Hydraulic Combined Punching and Shearing Machine
unit Iron Worker, Hydraulic Combined Punching and Shearing Machine with hydraulic
system combines punching, shearing, plate bending, angle cutting, section cutting and
notching functions together. By changing or fitting different mounds or dies, various
functions can be achieved.
1. Shearing station
Round & square bar shearing: There are multiple holes for a variety of sizes.
Adjustable hold down device is convenient for shearing various sizes of round and
square bar, channel, joist etc.
Flat bar shearing: With accurate cutting because of easily adjustable hold down
device and good visibility operator, Large 15'' squaring arm with inlaid scale as standard
equipment.Angle iron shearing: The angle iron shear has the ability to cut angle iron
at 45 degrees & 90 degrees with diamond shaped blade.
Optional moulds for T-bar, joist, channel.
2. Punching station
Large viewing window on stripper.
Swing-away design for easy operation.
Large two pieces gauging table with rulers and stop as standard equipment.
Quick change coupling nut and sleeve for rapid replacement or change.
Bending device is optional (for bending below 500mm length metal plate)
Notching station
Unique design allows for unsurpassed cutting of angle and flat bar.
With electrically interlocked safety device for safe operating.
With ventilated device for good visibility
With 3 measuring-stops for precise positioning
Electronic backgauge device
With 3 supporting feet
Fine adjustment assures precision cuts
Fully protected electrical hardness for safety and reliability.
Large contact button for high efficiency productivity

Optional tooling:


Automatic Holding System: The automatic holding system can be chosen to set up

in angle steel shearing and plate shearing work position. The holders will fix the position

of work piece, in this way, the accuracy is better and more safety for workers meanwhile

save time and improve working efficiency.

Temperature cooling system: When the machine is working, you can read the temperature

of oil through the monitoring screen. If the oil temperature goes higher than 55 degree

which is the default configuration, the inside cooling system will run automatically to

decrease oil temperature in order to protect hydraulic system.

1. The Ironworker featuring multiple functions, including: punching all kinds of holes,
louver punching, profile steel shearing , notching, press brake, angle bending. We can
design any special tools according to your requirements.
2. Free standing on suitable floor, the ironworker machines just require electrical connection
to be ready for work, so it is very convenient
3. For two operator utilization, the hydraulic system is activated by two shielded for switch
control, one operating the punching end cylinder, the other operating shearing end cylinder
This machine adopts hydraulic transmission, is currently the ironworker latest products.
Able to sheet metal, square steel, angle, channel, beam steel to shear, punching, die cutting.
Hydraulic ironworker standard free accessories
1. Punching die
2. Shear angle die
3. Cut square steel bar die
4. Shearing blade
5. Notch die
6. Spare parts: grease gun, special wrench, seals,etc.



Punching Pressure (T)200
Max. cutting thickness of sheet plates (mm)40
Material strength (N/mm²)≤450
Angle of Shear (°)
Flat bar shearing (T*W)(mm)35*400 25*700
Max. length of cylinder stroke (mm)100
Trips frequency (times/min)8
Depth of throat (mm)600
Max. punching diameter (mm)41
Motor power (KW)15
Overall dimensions (L*W*H)(mm)2850*1300*2400

Types of profiled steel for shearing (If you want Joist or Channel, need special order)

Steel categoryRound
Square BarEqual AngleT BarI-ironChannel
90° Shearing45° Shearing90° Shearing45° Shearing
Section view

Packing& delivery:

Packaging Details:Waterproof flexible packaging and fixed with steel wire in container
Delivery Detail:7 days

 Download brochure here:
More information please contact us:
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039

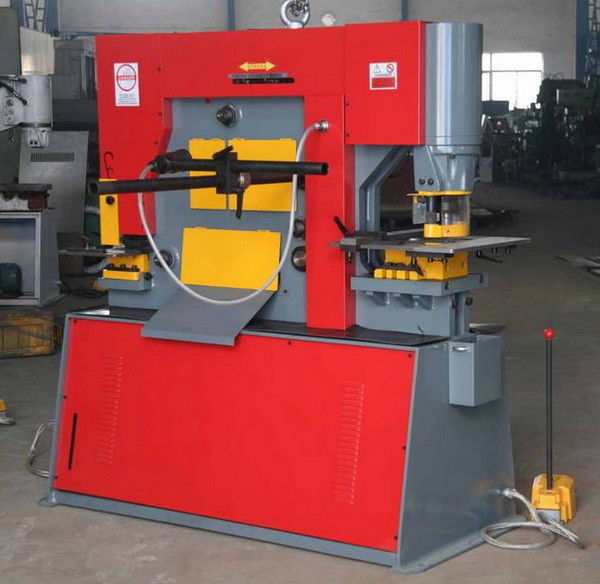

Machine photo:
