High Precision Sheet Metal Hole Punch Machine Hydraulic CNC Industrial

High Precision Sheet Metal Hole Punch Machine Hydraulic CNC Industrial

  • High Light

    metal sheet punching machine


    cnc turret punching machine

  • Slider Movement
    Single Action
  • Name
    CNC Punch Press
  • Automatic Grade
  • Controlling Mode
    CNC Control
  • Precision
    High Precision
  • Power Source
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Min. 1 set

High Precision Sheet Metal Hole Punch Machine Hydraulic CNC Industrial

High Precision Sheet Metal Hole Punch Machine Hydraulic CNC Industrial



Main functions and characteristics:
1. Dealing with multitasks by the system in real time controlling.
2. Easily call the menu and the toolbar with friendship surface.
3. Loading program by drawing the menu or toolbar for choice.
4. Showing the state of operating manner, of the punch, coordinate of workpiece, and rate

of punching.
5. Auto-programming by the way of AutoCAD and performing the processing program.
6. Programming with the code of ISO NC standard.
7. Editing, rewriting and saving the program.
8. Code of nesting, circulation, and other assistant function.
9. Showing the self- diagnosis of the failure.
10. Code explaining, executing, grammar checking and simulation of punching.
11. Following drawing and showing the process of punching in time.
12. Super parameter setting.
13. Freely choosing or changing coordinate system of track.
14. Feeding frame the drift by the control of the software.
15. Running by the manner of increment, high and low speed.
16. Counting and the zero clearing a bit.
17. Easily orient the plate material.
18. With the function of returning the start place automatically.
19. With the function of pre-disposal figure.


Main configure:
Mainboard of Industrial Controlling Computer and software of Windows operating system
256M memory 80G hard disk and various linker
Servo motor and drivers
Board of controlling movement which baced on DSP and CPLD
Liner guide
Accurate roll screw
15" colorful LED displayer
Pneumatic clamps and pneumatic locking device
Long-guide international standard-tools
Non-damnifying and silken working table
20T punching press


Product Description:
A,Equipped with advanced combat head structure, lubrication sealing structure is

reasonable, the static and dynamic response characteristics is good, impaction of

temperature change is small, without environmental interference.
1. Stroke, speed adjustable
can be automatically select punching stroke for different thickness, improve processing

in each point of every single mode on the trip, stamping speed adjustable, can realize

fast move of zero stroke and low speed move of punch, improve the process quality,

realize no noise.
can be precisely controlled lower dead point, very convenient for special craft processing,

such windows, knockouts, roll bars, roll scissors and so on.
2, Overload protection
3. Stable quality
Fiveaxis machining center with high rigidity and paired processing turntable, ensuring

station hole, positioning hole location accuracy requirements. Ensure concentricity

upper and lower dies, greatly extend the life of the mold; simplified turntable structure,

extending the life of the turntable; can be equipped with long-oriented mold, improve

guiding precision molds to extend die life.
International pneumatic components and electrical components to ensure the reliability

of the overall performance.
Using high-quality production of large lead ball screws, linear guides ensure that the

transmission accuracy.
With a hard brush and ball mixing table, the machine not only reduces the noise and

vibration at work, but also played a very good surface protection for processing sheet.
Using the O-closed steel welded body, by the second aging treatment, making

removal more thoroughly stress.
Use floating clamp, clamping force big, stable feeding; integral dovetail carriage, rigid,

clamp easy to move.
System with automatic clamp protection, to avoid damage to the mold and clamp,

ensuring the operation of the program continuity.
Overall beam structure, enhanced rigidity, accurate positioning, in the case of high-speed

feeding more stable, eliminate the workbench X, Y axis dynamic offset situation.
Equipped with a centralized lubrication system, oil can be fed directly into the

lubrication points, reducing the friction of movement to pay, improve life.


CNC system:
7.5-inch LCD color monitor
Rear port: Connect the machine control panel USB interface, RS232C, distributed and

integrated I / O
Axis, independent digital control of three-dimensional coordinate movement.

the servo motor controlled precision ball screw drive and locking.
the three-dimensional coordinates can be manually fast, slow moving and incremental

the absolute coordinates and relative coordinates programming.
screw backlash software compensation.
decimal data input.
using ISO standard NC code programming.
recall, modify, delete, insert other editing functions.
the dry run self-diagnostics, the program displays an error.
overcurrent, overvoltage, overheating, wrong phase protection.
breakpoints continue processing functions.
clamp pneumatic control
operating software: compatible with windows
Lubrication system: automatic lubrication system
the speed setting: stepless


Machine Paramter:

1 Type CNC Hydraulic turret punching machine
2 Nominal pressure 200KN
4 Number of rotation station


A station:12. B station:8. C station:2. D station:2

5 Max. thickness 4mm
6 Max. work piece dimension 1250x2500
7 Precision of punching ±0.10
8 Strokes of power diver 600 (h.p.m)
9 Station number 24 sets
10 Number of control axes 3
11 Control system FANUC from Japan
12 software CNC KAD from Israel
13 weight 10362kg(N.W)
14 Overall dimension 5898x2852x2100mm
19 packing Iron pallet container:40’GP
20 Delivery date 30 days after receive the down payment


Our services:
1.Standardization of Service "212"

2: response in 2 hours

1: provide solution in 1 day

2: solve complaint in 2 days

2.Installation Service

Installation Services are available with all machines. We dispatch technician to customer's
factory for installation and pre-operation of machines.

3.Training Service

Our technician is available to your factory and offer training of how to use our machines.

As well, you
may send your technician to our company to learn how to operate machines.

4.Quality Guarantee

We guarantee the quality of machine for one year from the

shipment (e.g. processing speed and working performance is the same as the data

of samples making). We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use

customer's materials for test. After making sure machine is the best performance, then

make shipments.

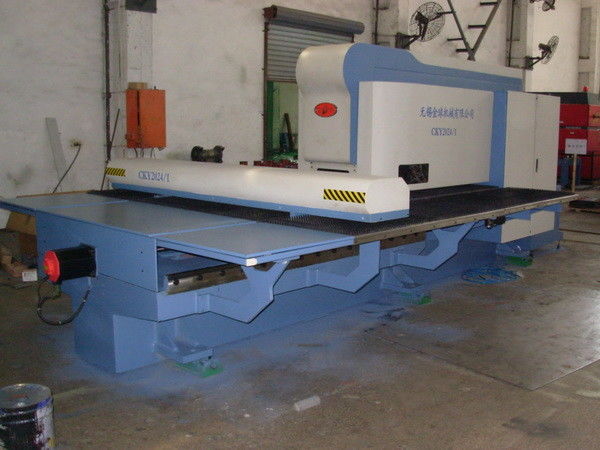

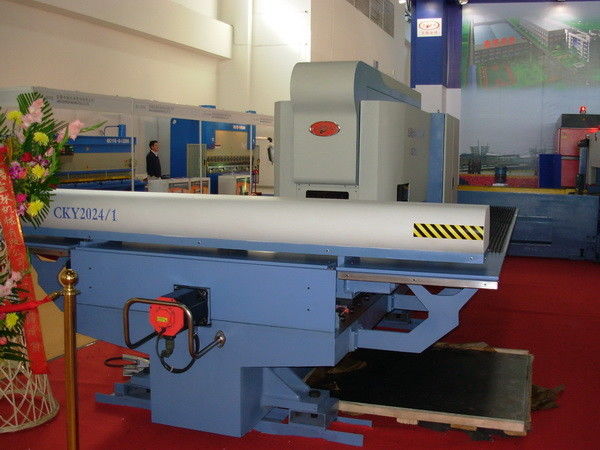

Machien photo:


High Precision Sheet Metal Hole Punch Machine Hydraulic CNC Industrial 0
