H Frame Press CNC Punching Machine For Sheet Metal Power Press

H Frame Press CNC Punching Machine For Sheet Metal Power Press

  • High Light

    metal sheet punching machine


    hydraulic punching machine

  • Automatic Grade
  • Name
    Straight Side Press Machine
  • Applications
    Auto Parts, Home Appliance, Progressive Stamping
  • Frame
    H Frame Steel Welded
  • Lubircation System
    Auto Grease Center Lubrication
  • Power Source
    Mechanical Drive
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    iron pallet or nude packing
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Min. 1 set

H Frame Press CNC Punching Machine For Sheet Metal Power Press

H Frame Press CNC Punching Machine For Sheet Metal Power Press



Steel-welded and closed-type structure frame,eliminating angle deformation and enhancing

the precision and entending die durability.
Pneumatic combination friction clutch-brake,low noise and long service life,to ensure reliable

safety and flexible action.
Eight-side long rectangle guides of the slide in high moving precision and high accuracy.
Improted hydraulic overload protection device,effecting emergent stop against overload and auto-restoration after problem solved,effective protecting the dies and preventing damage to

the press.
Motorized die height adjustment.
Automatic oil lubrication system,to ensure smooth operation.
Photoelectric protector,transmission output axle,feeder,air cushion and other optional

accessories are available for the power press subject to the.


Standard accessories:

Touch pad
Preset counter
Electrical cam
Hydraulic over-load protector
Electric Silde adjust device
Electric Die height indicator
Balance device
Crank angle indicator
Electric stroke counter
Air source receptacle
Against over-run safety device
Misfeed detection consent
Power socket
Maintenance tool box
Operation Manual



single crank power press, single point power press, straight side mechanical power press

Welded Steel plate framework with high intensity of machine body.
Double crankshaft pitmen totally eliminating side forces by reverse rotation.
Combined wet multi discs friction clutch and brake, imported dry type friction clutch and

brake is optional.

Equipped with hydraulic overload protecting device.

Eight-side lengthened guide with high precision.
Electric shut height adjustment with digital display.
Equipped with lifting balance cylinder.
Duplex valves imported from Japan.
Electric compelling grease lubrication system.
Controlled by PLC with international brand.
But tons, indicators, AC contactors, air circuit breakers and other controlling devices are

imported from international brand.
Electronic cam device with intelligent top dead center stop function and several safety function.
Optional air cushion device, NC feeding machine, light curtain and inverter with international

brand to fulfill stroke adjustment.




ITEM UNIT JW36-110 JW36-160 JW36-200 JW36-250 JW36-315
Nominal Capacity KN 1100 1600 2000 2500 3150
Slide Stroke mm 180 200 250 280 300
Slide Strokes Fixed Times/min 65 55 45 35 35
Variable Times/min 35-65 30-55 25-45 25-35 25-35
Max.Die Height mm 400 450 500 550 550
Die Height Adjustment mm 90 100 110 120 120
Slide Hole Size Forward-Rear mm 700 780 860 940 1020
Height mm 350 400 450 460 460
Distance Between Uprights mm 1770 1970 2370 2470 2570
Bolster Size Forward-Rear mm 680 760 840 920 1000
Left-Right mm 1700 1900 2300 2400 2500
Thickness mm 155 165 170 180 190
Slide Bottom Size Forward-Rear mm 580 660 740 820 900
Left-Right mm 1400 1600 2000 2100 2200
Bolster Surface Height mm 900 900 1000 1100 1100
Overall Dimensions Forward-Rear mm 2050 2380 2630 2920 3100
Left-Right mm 2670 2890 3310 3430 3550
Height mm 3100 3340 3730 4110 4220
Motor Power KW 11 18.5 22 30 37
Weight(approximate) kg 19000 25000 33000 41000 45000



Straight side frame designed virtually eliminates angular deflection, providing increased

precisionfor progressive die applications and reducing maintenance costs on tooling.

The D frame body is stronger than comparable C-frame presses to enhance the rigidty.

The large 6-point gibs are centered in the slide body, to provide better resistance to off-center


High-torque wet clutch and brake system provides low noise, long life operation with minimal maintenance.

User friendly , multi-function control system allows for easy integration of auxiliary equipment

and automation.



Warranty and service:

one year warranty for whole press.

all spare parts are available as we produce most of the parts in our factory.

it is easy to get the electric parts as all are international famous brands.

we can provide technical support via email, phone or video.

we can send out engineers for service, installation or training with reasonable additional cost.

English operation and maintenance manual is provided with the press.

All safety warning tags and control panels are in English.


More information please contact us:




WhatsApp:+86 13961729519


Skype: zouqicheng


QQ: 2308574039

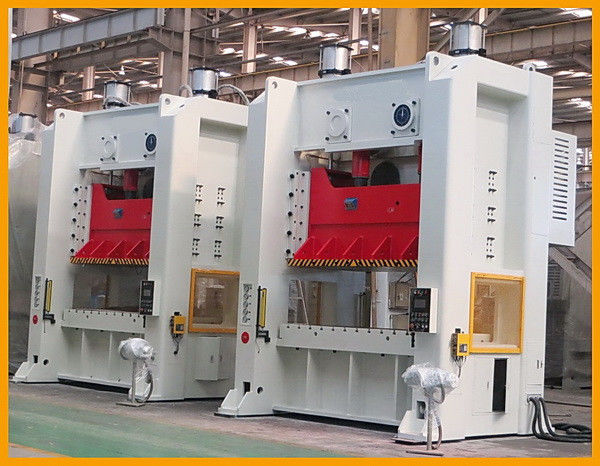

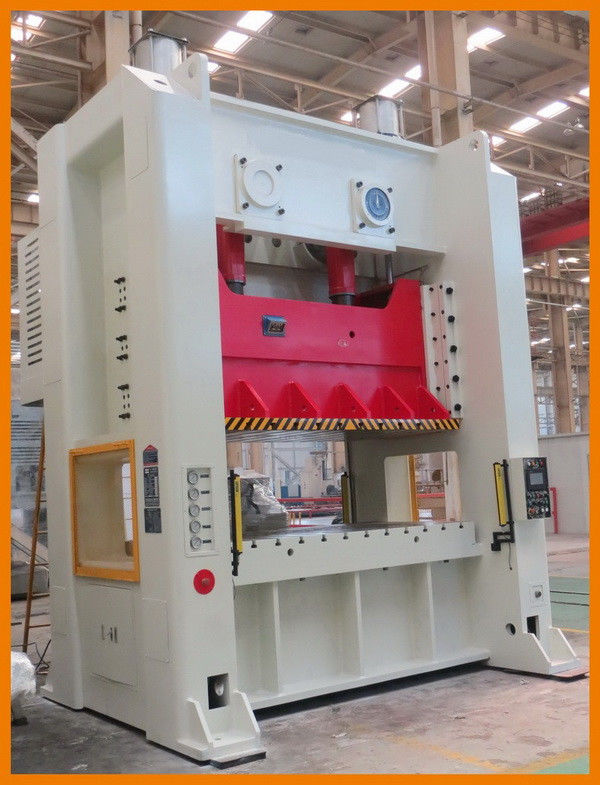

Machine Photo:
