Stainless Steel CNC Tube Punching Machine Single Hole Automatically

Stainless Steel CNC Tube Punching Machine Single Hole Automatically


Feature:
Hole punching machine has two kinds, 50B single production line and 60 double production lines.
Optional function:
360°rotation, if the machine equipped with this function, when you punch round pipe, the machine can rotate automatically. The machine can punch the pipe's different angles automatically.
Push rod function, you are willing to press the last hole, while the distance between last hole and the pipe edge less than 50mm , you have to push the pipe manually. If your machine is equipped with push rod function, the clamp can automatically release the last edge of the pipe, and a rod push the end of the pipe, then blade can punch the last hole near the edge.
The machine has manual, semi-automatic, and full automatic operation modes.
Man-machine interface is Analogy and industrial-grade touch LCD screen, as long as you gently touch the screen to operate or setting area, system can accept the work instruction.
 50B hydraulic press hole piercing metal pipe punch machine can punch hole one by one, if the distance between two hole is the same, you could set fixed distance, punching several holes meantime.


Piercing Tube Machine Instruction:
Automatic feeding: One worker start the double line at the same time, if the tubes with standard size, the worker operated without any mistake, it only need about one minute punch one pipe.
Artificial feeding: two workers operate one line separated, if the tubes with standard size, the worker operated without any mistake, it need about five minute can punch one pipe.
Product board type chart (as reference)
About new automatic hydraulic hole punching machines with no used

Character:
Hole punching line has two kinds, single production line and double production lines.
Optional function:
360 0rotation, if the machine equipped with this function, when you punch round pipe, the machine can rotate
automatically. The machine can punch the pipe's different angles automatically.
Push rod function, you are willing to press the last hole, while the distance between last hole and the pipe edge less than 50mm , you have to push the pipe manually. If your machine is equipped with push rod function, the clamp can automatically release the last edge of the pipe, and a rod push the end of the pipe, then blade can punch the last hole near the edge.
The machine has manual, semi-automatic, and full automatic operation modes.
Man-machine interface is Analogy and industrial-grade touch LCD screen, as long as you gently touch the screen to operate or setting area, system can accept the work instruction.
can punch hole one by one, if the distance between two hole is the same, you could set fixed distance, punching several holes meantime.

Future:
The TFT HMI (human-machine interface) display, Touch Screen settings, NC control system,
precise servo motor positioning, module storage memory function.
Structure: Steel plate welded structure
Mould replacement: Change the die easily without adjusting the dies to reduce the mould
damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can
change the mould within 10 minutes.
II. Punching Category:
1. Single hole punching;
2. Double hole punching;
3. Isometric hole punching;
4. None- Isometric hole punching; Rotary punching.
III. Hydraulic and Servo System:
1, Step-less operation adjustment, hydraulic loops designed with zero load, combined with
extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency
and service duration.
2, When the oil cylinder is moving downward, the machine is designed with hydraulic
difference driving loops rated at high or low RPM. It is also featured with high speed downward
moving, low speed processing and hi-speed position resume. It is available to increase the
formation stability of work pieces during puncturing. In addition to increasing the activation
speed, it can effectively reduce HP load to save electrical energy.
3, The electrical control system is designed with the human machine interface, range
adjustment use digital scale, setting low speed position, floor level position, and operation
precise and easy.
4. Cylinder stroke 130mm (can be set), throat depth 300mm, available for forward and
backward 150mm moving accessibility. Designed with the Italy-made digital scale with
high precision.
IV. Equipment production process:
Feed - clamp - fix position - start automatic - punch - unload

Specification:



Hole punching machine5050A50B6060A60B60C
NameSingle lineSingle line(with 360 rotation)Single line(with push rod function)Dual lineDual line(with 360 rotation)Dual line(with push rod function)Dual line(with 360 rotation and 360 rotation)
Work pieceround, square, rectangular, oval, special pipe and various holes(according to detailed drawing)
MaterialAll kinds of iron, aluminum, copper, stainless steel…
Hole diameter and thicknessΦ50×τ3~~~~~Φ16×τ11mm
Pipe diameterRound pipeΦ16-----Φ120 mm
Square pipe20×20-------75×75 mm
Rectangular pipe15×30-------60×120 mm
Angle iron30×30--------75×75mm
Channel25×50--------60×120mm
Processing length3500mm /6000mm
Max servo feeding speed50000mm/min
processing categoriesSingle punching, Not equidistant punching, Isometric punching,360°rotation punching
































Our service:

1Reply your inquiry in 24 hours.
2Experienced staffs answer all your questions in time.
3Customized design is available.
4Exclusive and unique solution can be provided to our customer by
our professional engineers and staff.
5Special discount and protection of sales are provided to our distributor.
6We are professional manufacturer of CNC Punching Machine.
Have a professional design team with more than 10 years design
experience engineers, competitive with good quality
7As an honest seller, we always use superior raw material, advanced
machines, skilled technicians to ensure our products to be finished
in high quality and stable feature.
8Prompt delivery, site installation and commissioning.

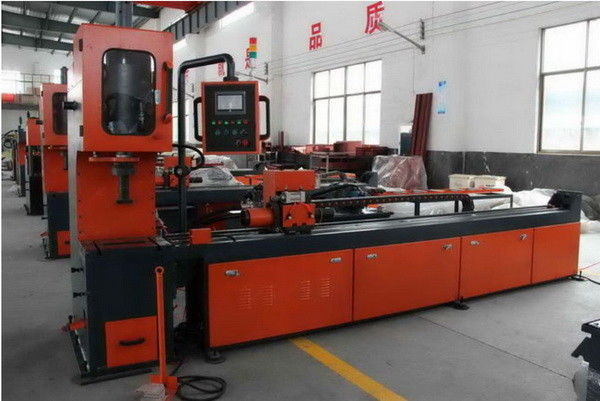

Machine Photo:
